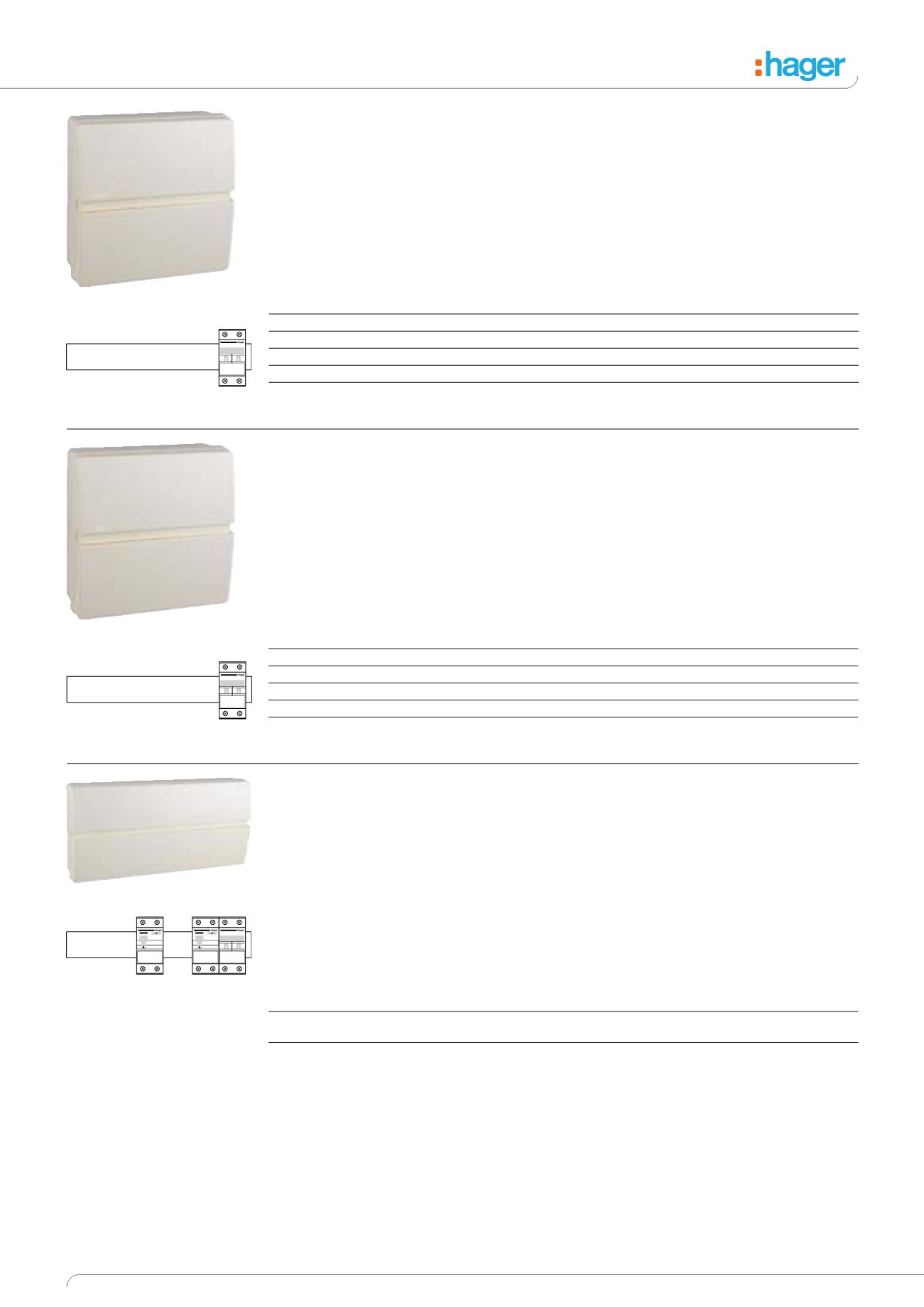

General Catalogue • Consumer Units
Consumer Units
Insulated Consumer Units
Description
Enclosure
Cat ref.
Cat ref.
size
Plain door
Glazed door
2 Way 63A Switch Disconnector Incomer
1
VC202
-
6 Way 100A Switch Disconnector Incomer
3
VC106
VC106G
10 Way 100A Switch Disconnector Incomer
4
VC110
VC110G
14 Way 100A Switch Disconnector Incomer
5
VC114
VC114G
20 Way 100A Switch Disconnector Incomer
6
VC120
VC120G
Insulated and metal enclosures
complete with switch
disconnector incomer, 1 row
from 1 to 20 outgoing ways.
Surface mounted enclosures,
with a rigid chassis, complete
with a 63 Amp or 100 Amp
Switch Disconnector.
Supplied with marking labels,
busbar and instructions.
Options:
• Keylock
• Plain or glazed door
Complies with BS EN 61439-3
Annex ZB (16kA rating).
For complete accessories list
see page 1.18.
For insulated consumer unit
dimensions see page 1.22.
Description
Enclosure
Cat ref.
size
Plain door
2 Way 40A 30mA RCCB incomer
1
VC402H
6 Way 63A 30mA RCCB incomer
3
VC406H
8 Way 63A 30mA RCCB incomer
4
VC408H
8 Way 100A 30mA RCCB incomer
4
VC308H
14 Way 100A 30mA RCCB incomer
5
VC314H
Insulated and metal enclosures
complete with RCCB incomer, 1
row from 1 to 18 outgoing ways.
Surface mounted enclosures,
with a rigid chassis, housing a
40A, 63A, 100A 30mA RCCB.
Supplied with marking labels,
busbar and instructions.
Options:
• Keylock
• Plain or glazed door
Complies with BS EN 61439-3
Annex ZB (16kA rating).
For complete accessories list
see page 1.18.
For insulated consumer unit
dimensions see page 1.22.
Sw/D/I
Sw/D/I
Switch Disconnector Incomer - Insulated
RCCB Incomer - Insulated
Description
Enclosure
Cat ref.
size
Plain door
6 Way 3+3
4
VC733H1
100A Switch 2 x 63A 30mA RCCB
10 Way 5+5
5
VC755H1
100A Switch 2 x 63A 30mA RCCB
Insulated and metal, split load
and configurable enclosures, 1
row from 6-16 outgoing ways.
Surface and Flush mounted
enclosures, with a rigid chassis,
housing a Switch Disconnector
and 2 RCCB’s.
Supplied with marking labels,
busbar and instructions.
Options:
• Keylock
• Plain or glazed door
Complies with BS EN 61439-3
Annex ZB (16kA rating).
For complete accessories list
see page 1.18.
For insulated consumer unit
dimensions see page 1.22.
VC816C
Sw/D/I
RCCB
RCCB
100A Switch plus Twin RCCB - Insulated
VC206
VC404H
