Output Products for Lighting or Shutter Control
RF KNX output modules take
commands transmitted by input
modules. They interface
between commands and
electrical equipment.
These bidirectional products are
able to communicate with all
other RF or TP wired products
(via media coupler TR131A).
They are particularly useful for
renovation or for equipment
already installed.
1 RF Output 16A
This flush mounted module helps
control circuits of
lighting, VMC, heating, solenoid
valves, etc.
Expansion
All RF output products can be
integrated by simple
programming, in zone group
control, general or
centralised controls and in
scenarios functions.
Installation
Link allocation is carried out by
configuration device TX100GB.
These products can also
communicate with TP wired
products via media coupler bus/
radio TR131A.
General characteristics of the
radio system
Frequency - 868.3 MHz
Range - variable according to the
environment - up to 30m indoor,
100m in free air.
Noise measurement is possible
with the TX100GB.
RF System
• Maximum number of RF KNX
products - 256
For technical details see page
6.37.

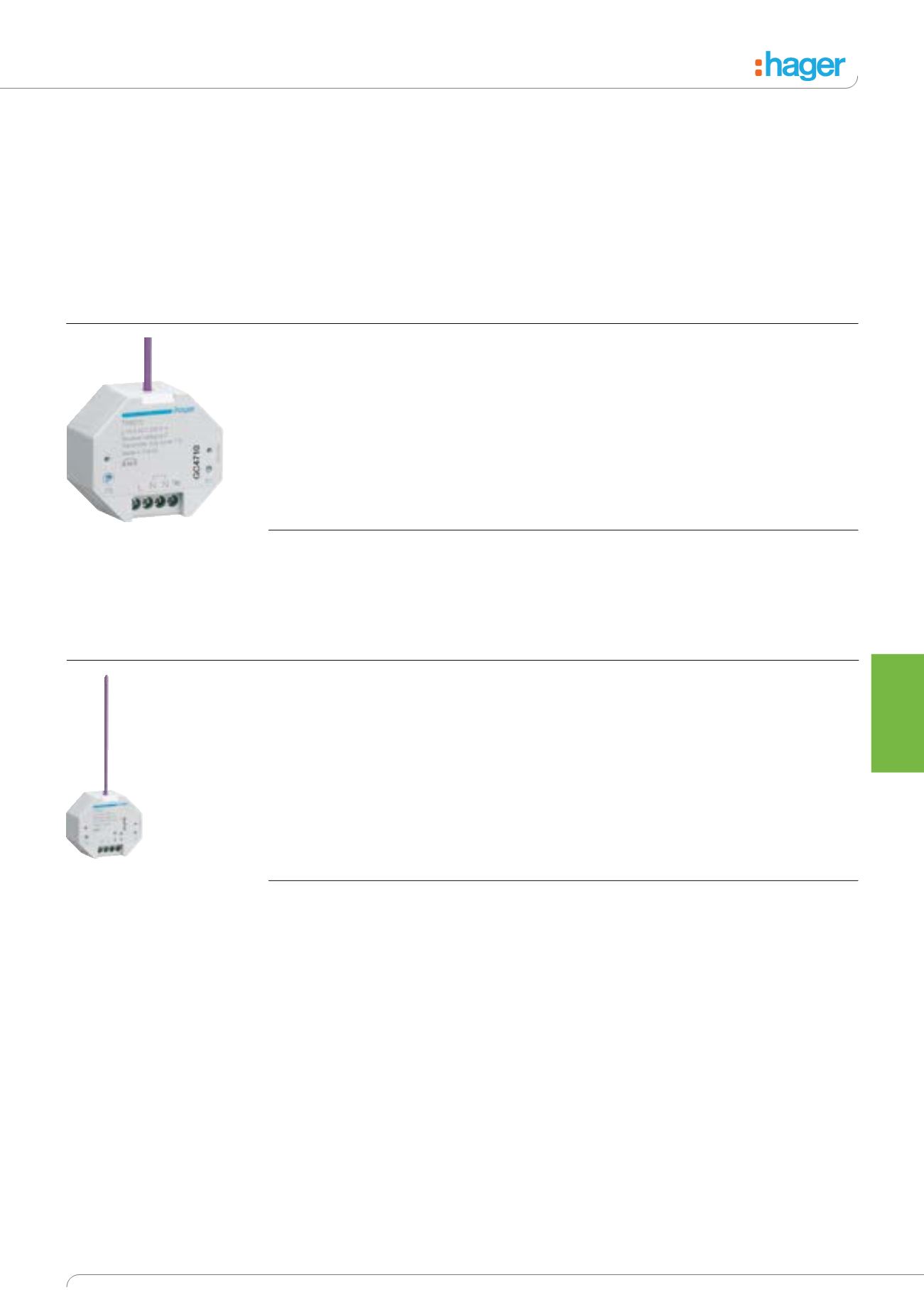

1 Flush Mounted Dimming Output 200W
For remote control of dimmable lighting.
Power Supply: 230V
Frequency: 868.3MHz
Functions of Output:
• ON/OFF control
• Dimming 0-100%
• LED Indication of each
• 8 Scenes
Description
Dimensions
Cat ref.
dia. x depth (mm)
Max. load with incandescent lamps 200W - 45ºC
52 x 30
TRB210
Max. load with 230V halogen lamps 200W - 45ºC
Max. load with halogen ELV lamps via ferromagnetic transformer
200VA - 45ºC
Max. load with halogen ELV lamps via electronic transformer
200VA - 45ºC
Bidirectional product
Output Device for Shutter/Blinds
For the control of shutters, blinds or blinds with bidirectional flaps.
Power Supply: 230V AC 50Hz
Functions of Output:
• Up/Down control
• Inclination of flaps
• Alarm security wind, rain
• Time delay
• 8 Scenes
• Priority setting
Description
Dimensions
Cat ref.
dia. x depth (mm)
Two way product for transmitting and receiving
52 x 27
TRB221
Output for 1 motor
Push-button switch 6A AC1 230V AC
Manual control by TX100GB
Output status display by LED
TRB210
TRB221
