General Catalogue • tebis.KNX
Input/Output Products for Combination Systems
The RF EIB/KNX input/output
modules are used as an
interface between volt free
contacts of switches or
conventional pushbuttons at
input level and electrical devices
at output level for direct
control. These products are able
to communicate with other RF
or TP wired products (via media
coupler TR131A). They are
particularly useful for renovating
or extending existing
installations.
1 Input + 1 Output 10A
For creating simple lighting
functions for integrating in a
group, general controls or other
scenario functions by simple
programming.
2 Inputs + 1 Output Shutter/
Blind
For creating shutter control
function for integrating in a
group, general control or other
scenario functions by simple
programming.
Installation
Link allocation is carried out by
configuration device TX100GB.
These products also
communicate with TP wired
products with the help of media
coupler TR131A.
General Characteristics of RF
System
Frequency - 868.3 MHz
Range - variable according to the
environment - up to 30m indoor,
100m in free air.
Noise measurement is possible
with the TX100GB.
RF System
• Maximum number of RF
products = 256
• Maximum number of RF input
translations by the media
coupler to twisted pair output
products = 63

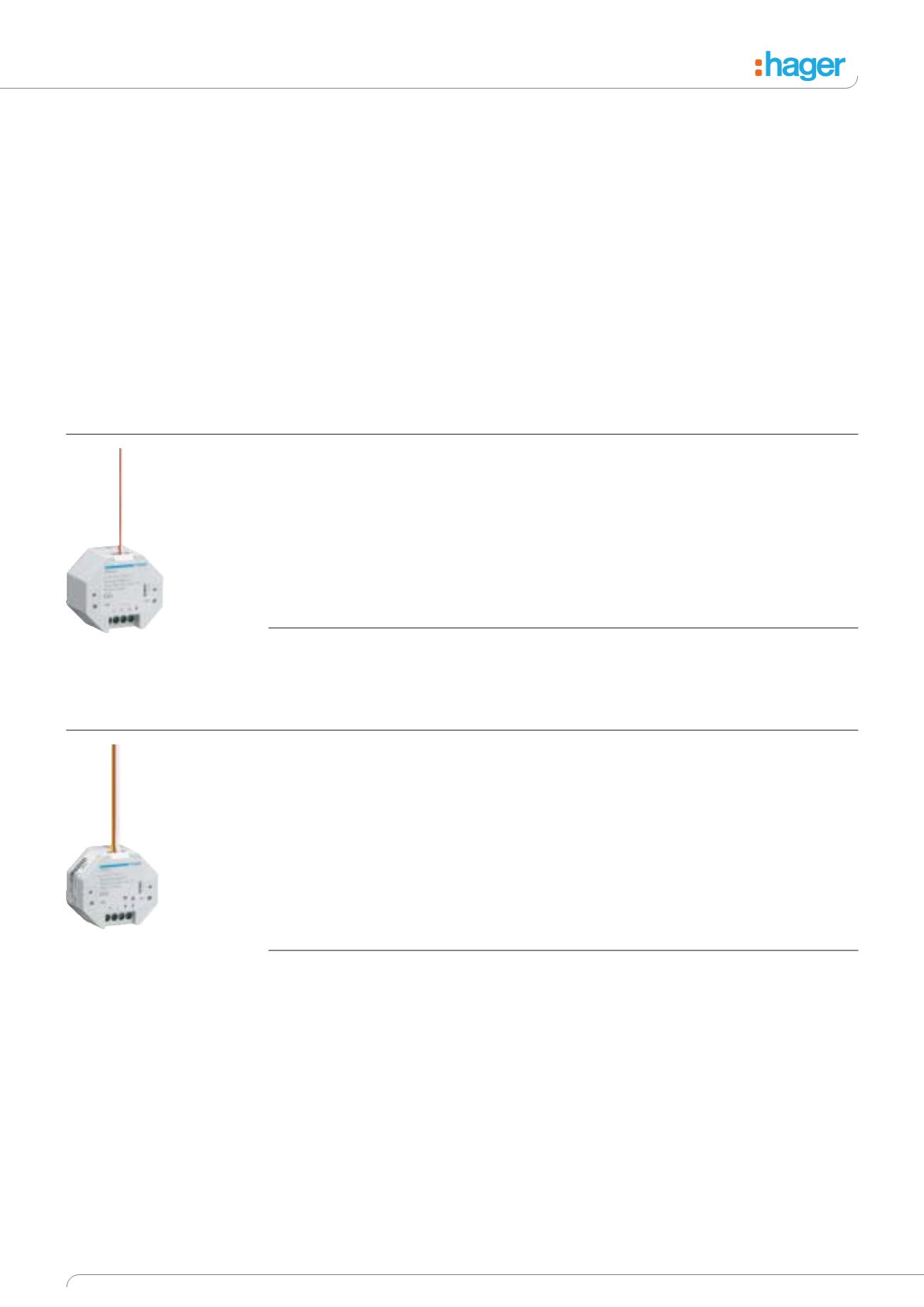

1 Input + 1 Output 10A
Product supplied with input/output module pre-configured for control of the connected output.
Power supply: 250V AC 50Hz
Functions of Input:
Functions of Output:
• ON/OFF, Dimming
• ON/OFF Control
• Priority Setting
• Time Delay
• Scenarios
• 8 Scenes
• Priority Setting
Description
Dimensions
Cat ref.
dia. x depth (mm)
Bidirectional Product for Transmitting and Receiving
56 x 30
TRB501
1 Volt Free Input for Push-Button Switch
1 Output 10A AC1 230V AC
For manual control by TX100GB
Output status display by LED
2 Inputs + 1 Output Shutter/Blind
Product supplied with input/output module pre-configured for control of the connected output.
Power supply: 250V AC 50Hz
Functions of Input:
Functions of Output:
• Up/Down by brief push
• Up/Down Control
> 400ms
• Inclination of Flaps
• Alarm Security for Wind, Rain
Output for Shutter Motor:
• Time Delay
• Scenarios
• 8 Scenes
• Priority Setting
Description
Dimensions
Cat ref.
dia. x depth (mm)
Bidirectional Product for Transmitting and Receiving
52 x 27
TRB521
2 Inputs Volt Free Contacts
1 Output 6A AC1 230V AC
Output status display by LED
TRB501
TRB521
