2 & 4 Pole RCCBs
AC Sensitive
To open a circuit automatically in
the event an earth fault between
line and earth, and/or neutral and
earth. A wide range of
current ratings and sensitivities
are available.
Suitable for domestic,
commercial and industrial
applications.
Technical Data
Complies with BS EN 61008,
IEC1008
Sensitivities (Fixed)
10, 30, 100, 300mA & 100 and
300mA time delayed.
Terminal capacities
16-63A Rigid 25mm
2
Flexible 16mm
2
80&100A Rigid 50mm
2
Flexible 35mm
2
Features
Positive contact indication is
provided by the rectangular flag
indicator
Red = Closed
Green = Open
Indication of trip is provided by
the oval flag indicator
Yellow = Tripped
All RCCBs have trip free
mechanisms and can be
padlocked either on or off with
the use of a MZN175.
Operating Voltage
2P 127-230Vac
4P 230-400Vac
Width
2P - 35mm
4P - 70mm
2 Pole RCCB Sensitivity 10mA
Sensitivity type AC
Current rating
Cat ref.
10mA
16A
CCC216U
2 & 4 Pole RCCBs Sensitivity 30mA
Sensitivity type AC
Current rating
2 Pole
4 Pole
Cat ref.
Cat ref.
30mA
25A
CDC225U
CDC425U
30mA
40A
CDC240U
CDC440U
30mA
63A
CDC263U
CDC463U
30mA
80A
CD280U
CD480U
30mA
100A
CD284U
CD484U
2 & 4 Pole RCCBs Sensitivity 100mA
Sensitivity type AC
Current rating
2 Pole
4 Pole
Cat ref.
Cat ref.
100mA
25A
CEC225U
CEC425U
100mA
40A
CEC240U
CEC440U
100mA
63A
CEC263U
CEC463U
100mA
80A
CE280U
CE480U
100mA
100A
CE284U
CE484U
2 & 4 Pole RCCBs Sensitivity 300mA
Sensitivity type AC
Current rating
2 Pole
4 Pole
Cat ref.
Cat ref.
300mA
25A
CFC225U
CFC425U
300mA
40A
CFC240U
CFC440U
300mA
63A
CFC263U
CFC463U
300mA
80A
CF280U
CF480U
300mA
100A
CF284U
CF484U

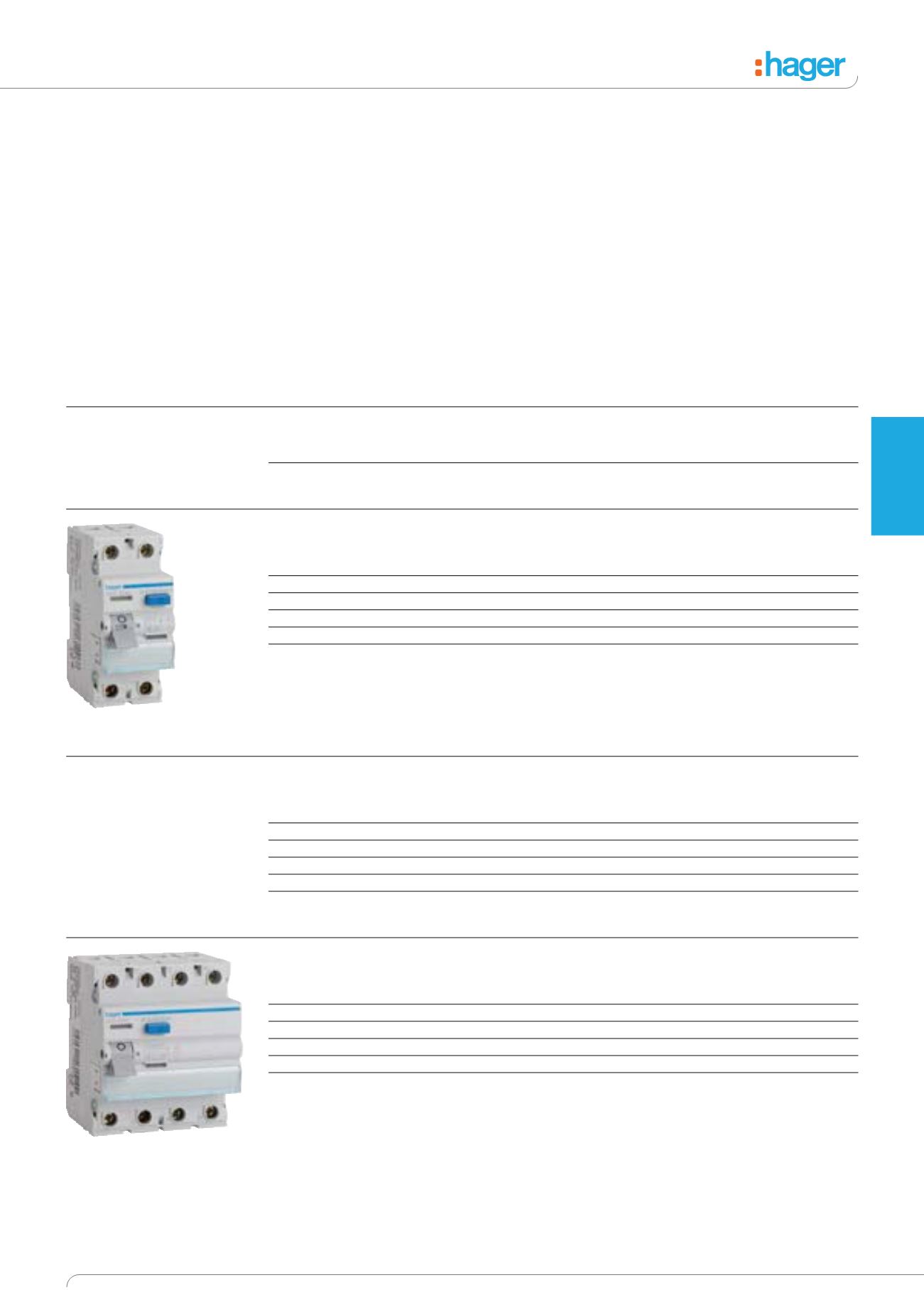

CDC225U
CFC425U
