4.16
General Catalogue • Protection Devices

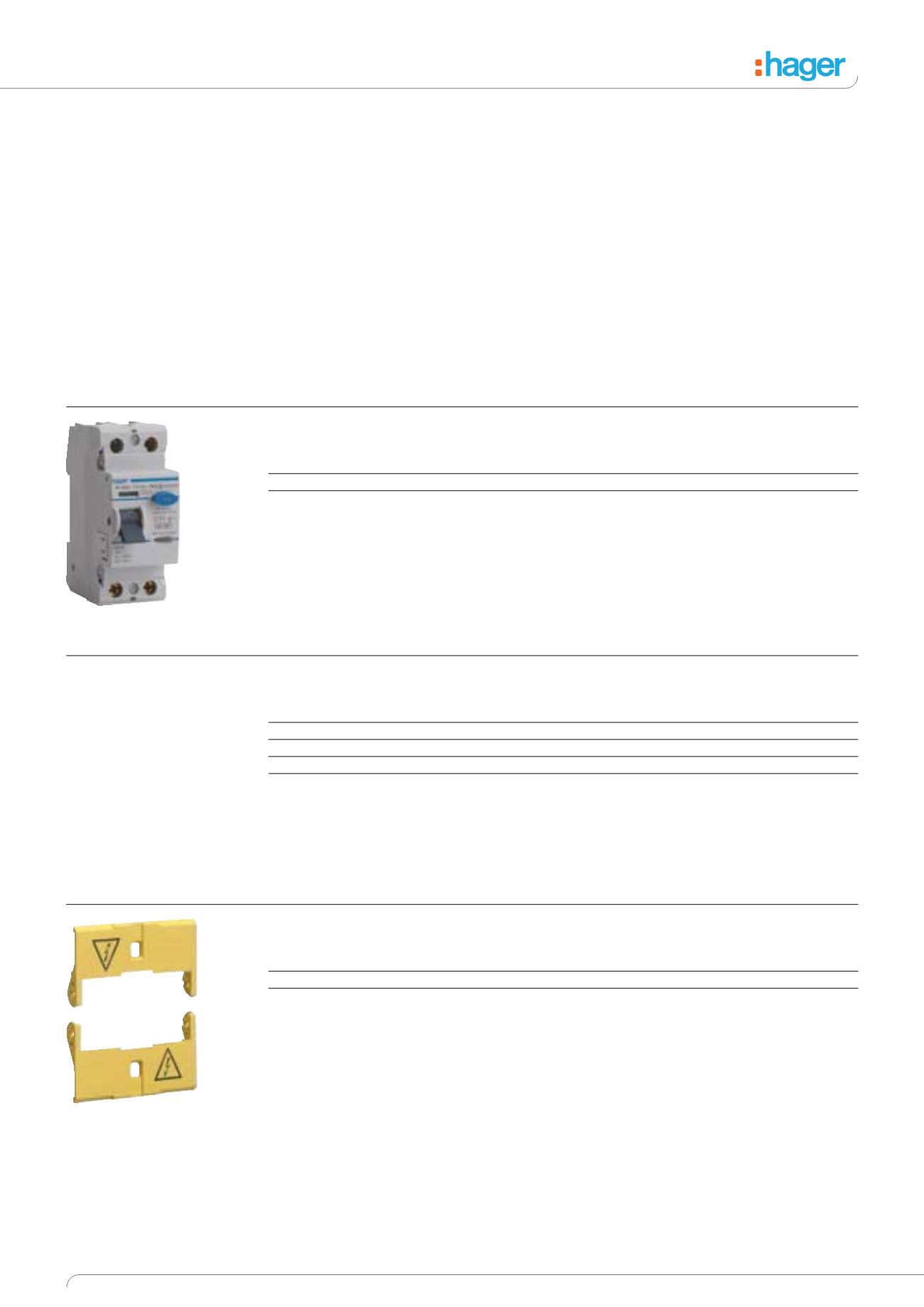

2 & 4 Pole RCCBs cont.
Time Delayed, DC Sensitive & Accessories
To open a circuit automatically in
the event an earth fault between
line and earth, and/or neutral and
earth. A wide range of
current ratings and
sensitivities are available.
Suitable for domestic,
commercial and industrial
applications.
Technical Data
Complies with BS EN 61008,
IEC1008
Sensitivities (Fixed)
10, 30, 100, 300mA & 100 and
300mA time delayed.
Terminal capacities
16-63A Rigid 25mm
2
Flexible 16mm
2
80&100A Rigid 50mm
2
Flexible 35mm
2
Features
Positive contact indication is
provided by the rectangular flag
indicator
Red = Closed
Green = Open
Indication of trip is provided by
the oval flag indicator
Yellow = Tripped
All RCCBs have trip free
mechanisms and can be
padlocked either on or off.
Operating Voltage
2P 127-230Vac
4P 230-400Vac
Width
2P - 35mm
4P - 70mm
Time Delayed AC Sensitive
Sensitivity type AC
Current rating
2 Pole
4 Pole
Cat ref.
Cat ref.
100mA
100A
CN284U
CN484U
300mA
100A
CP284U
CP484U
Type A DC Sensitive
Sensitivity type AC
Current rating
2 Pole
4 Pole
Cat ref.
Cat ref.
10mA
16A
CCA216U
-
30mA
25A
CDA225U
CDA425U
30mA
40A
CDA240U
CDA440U
30mA
63A
CDA263U
CDA463U
Terminal Covers
Current rating
2 Pole
4 Pole
Cat ref.
Cat ref.
16 - 63A
CZN005
CZN006
80 - 100A
CZ007
CZ008
CP284U
CZN006
