140 / 430
4.18
General Catalogue • Protection Devices

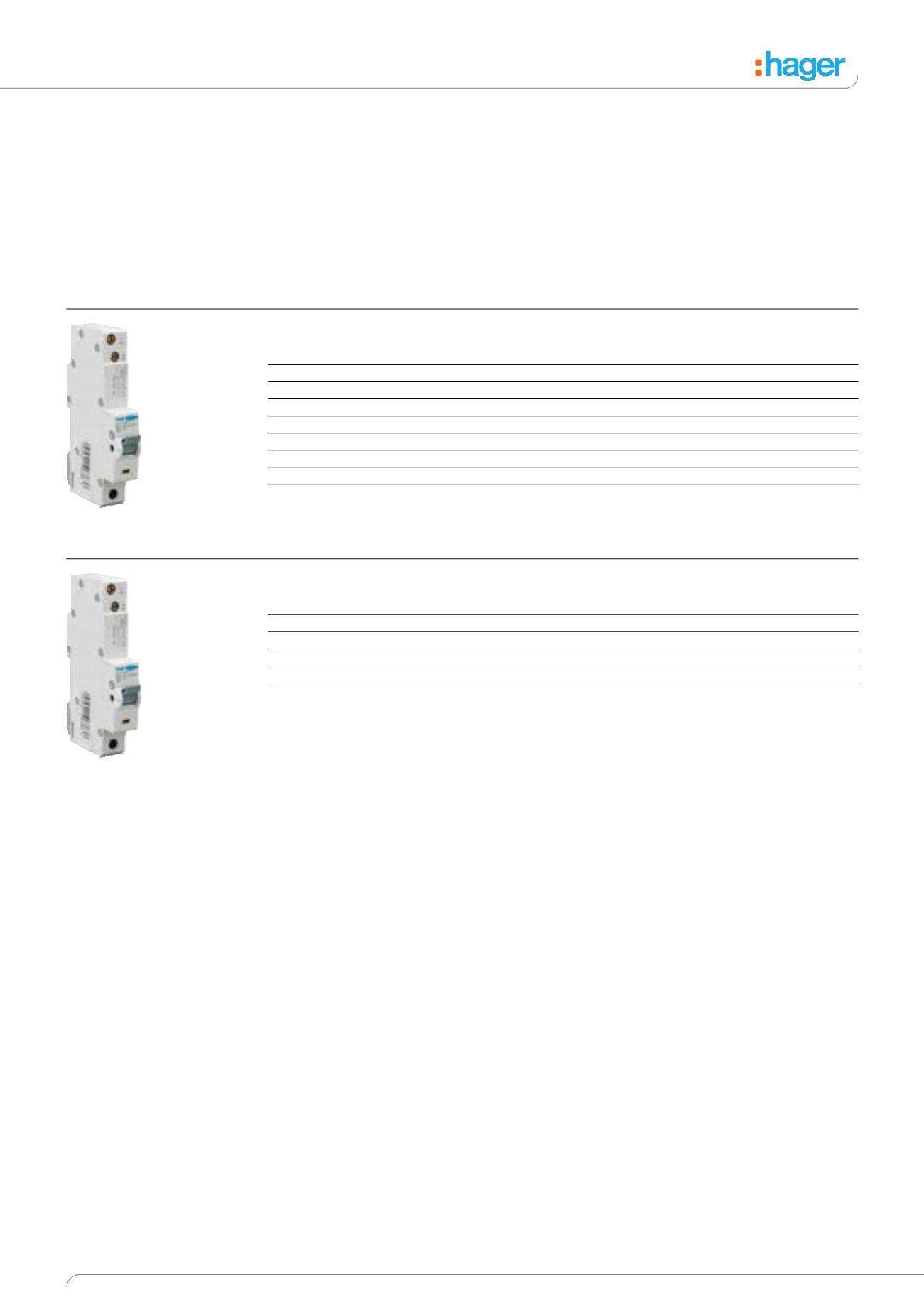

RCBO (Domestic)
Single Pole 6kA
Compact protection devices
which combine the overcurrent
functions of an MCB with the
earth fault functions of an RCCB
in a single unit.
Technical Data
Insulated DIN clip
Complies with IEC 61009-1,
IEC 61009-2-2, EN 61009-1
Sensitivity (fixed): 30mA
Breaking capacity: 6kA
Flying neutral lead: 200mm
Terminal Capacities
25mm
2
rigid
16mm
2
flexible
Application
1 module devices provide a
compact solution for installation
in consumer units.
These devices are 1pole & solid
neutral.
Operating Voltage
230V (AC) +10%/-15% 50Hz
Locking kit = MZN175
Sensitivity 30mA (6kA) Type B, AC Sensitive
Current rating
Width (17.5mm)
Cat ref.
6A
1 Mod
ADN106
10A
1 Mod
ADN110
16A
1 Mod
ADN116
20A
1 Mod
ADN120
32A
1 Mod
ADN132
40A
1 Mod
ADN140
45A
1 Mod
ADN145
50A
1 Mod
ADN150
Sensitivity 30mA (10kA) Type C, DC Sensitive
Current rating
Width (17.5mm)
Cat ref.
6A
1 Mod
ADA156U
10A
1 Mod
ADA160U
16A
1 Mod
ADA166U
20A
1 Mod
ADA170U
32A
1 Mod
ADA182U
ADN120
ADA156U
