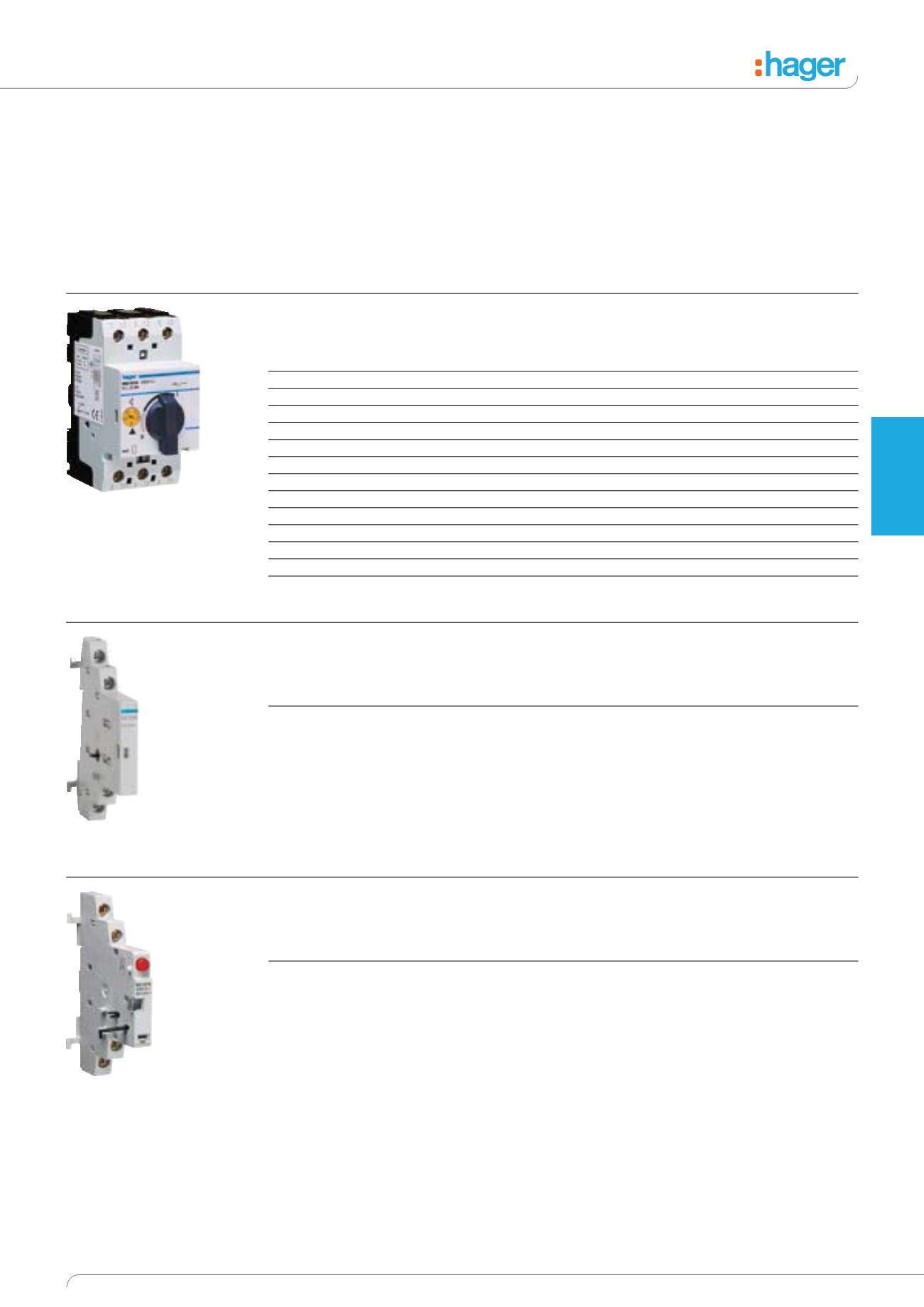

Motor Starters
To ensure localised control and
protection of single and three
phase motors.
Technical Data
• Adjustable thermal relay
• AC3 utilisation category
• Connection capacity
2 conductors
max size: Flexible 1 to 4mm2
Rigid 1.5 to 6mm 2
Options
Undervoltage release: MZ528N,
MZ529N
Auxiliary contacts: MZ520N,
MZ527N
Alarm contact: MZ527N
Complies With
IEC 947-1, IEC 947-2
(appropriate parts of)
Note: Please consult us for
enclosure selection
Motor Starters
Current setting Standard power ratings of 3 phase Width Cat ref.
motors 50/60Hz (AC3 category) (43.75mm)
230V (kW) 400V (kW)
0.1 - 0.16A - - - MM501N
0.16 - 0.25A - 0.06 2 ½ Mod MM502N
0.25 - 0.4A 0.06 0.09 2 ½ Mod MM503N
0.4 - 0.6A 0.09 0.12 2 ½ Mod MM504N
0.6 - 1.0A 0.09 0.12 2 ½ Mod MM505N
1.0 - 1.6A 0.25 0.55 2 ½ Mod MM506N
1.6 - 2.5A 0.55 0.8 2 ½ Mod MM507N
2.5 - 4A 0.8 1.5 2 ½ Mod MM508N
4 - 6A 1.5 2.5 2 ½ Mod MM509N
6 - 10A 2.5 4 2 ½ Mod MM510N
10 - 16A 4 7.5 2 ½ Mod MM511N
16 - 20A 5.5 9 2 ½ Mod MM512N
20 - 25A 7.5 12.5 2 ½ Mod MM513N
Auxiliary Contacts
Act as an indicating device to monitor the ON or OFF position.
Characteristics Width (8.75mm) Cat ref.
1C + 1O 2A AC1 - 400V~ ½ Mod MZ520N
Alarm Contact
Mounted inside the motor starter
Characteristics Cat ref.
1C 1A AC1 - 400V~ / 2A AC1 - 230V~ MZ527N
MM501N
MZ520N
MZ527N
