4.19

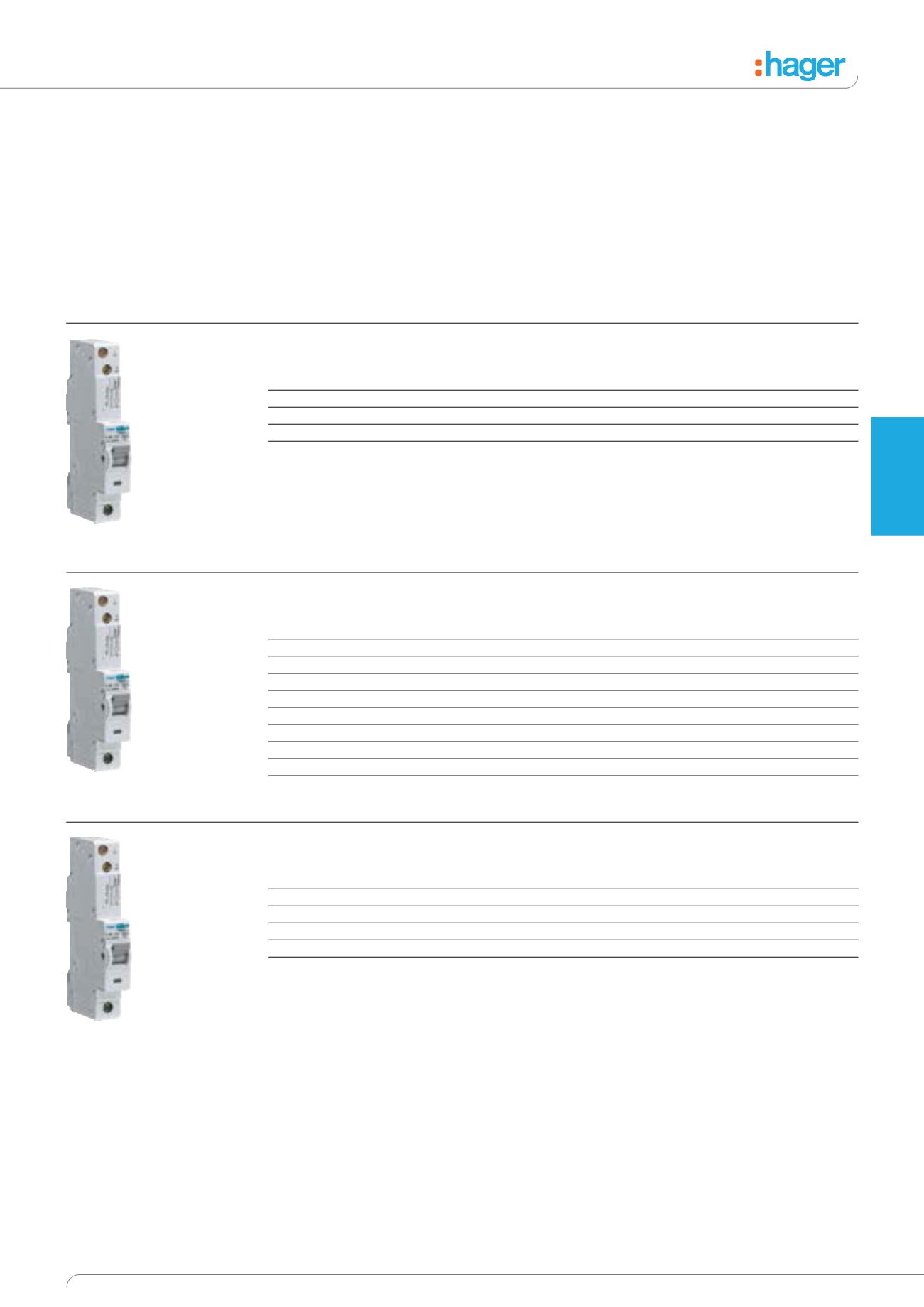

RCBO (Commercial / Industrial)
Single Pole 10kA
Compact protection devices
which combine the overcurrent
functions of an MCB with the
earth fault functions of an RCCB
in a single unit. A range of
sensitivity and current ratings are
available for use in commercial
and industrial applications.
Technical Data
Insulated DIN clip
Complies with IEC 61009-1,
IEC 61009-2-2, EN 61009-1
Sensitivities (fixed)
10mA, 30mA & 100mA
Breaking capacity: 10kA
Flying neutral lead: 700mm
Terminal Capacities
25mm
2
rigid
16mm
2
flexible
Application
1 module devices provide a
compact solution for installation
in consumer units and Invicta 3
distribution boards.
These devices are single pole &
solid neutral.
Operating Voltage
230V (AC) +10%/-15% 50Hz
Locking kit = MZN175
Sensitivity 10mA (10kA) Type B & C, AC Sensitive
Current rating
Width
Type B
Type C
(17.5mm)
Cat ref.
Cat ref.
6A
1 Mod
ACB106
ACC106
16A
1 Mod
ACB116
ACC116
25A
1 Mod
ACB125
ACC125
32A
1 Mod
ACB132
ACC132
Sensitivity 100mA (10kA) Type C, AC Sensitive
Current rating
Width
Type C
(17.5mm)
Cat ref.
10A
1 Mod
AEC110
16A
1 Mod
AEC116
20A
1 Mod
AEC120
25A
1 Mod
AEC125
32A
1 Mod
AEC132
Sensitivity 30mA (10kA) Type B & C, AC Sensitive
Current rating
Width
Type B
Type C
(17.5mm)
Cat ref.
Cat ref.
6A
1 Mod
ADB106
ADC106
10A
1 Mod
ADB110
ADC110
16A
1 Mod
ADB116
ADC116
20A
1 Mod
ADB120
ADC120
25A
1 Mod
ADB125
ADC125
32A
1 Mod
ADB132
ADC132
40A
1 Mod
ADB140
ADC140
45A
1 Mod
ADB145
ADC145
50A
1 Mod
ADB150
ADC150
ACB125
ADB106
AEC132
