HRC Fuse Carriers
BS 1361
Protection and control of circuits
against overloads and
short-circuits:
Technical Data
Fuse carriers suitable for fuses
which fully comply with BS HD
60269-3 (Formerly BS 88-3).
• Short-circuit rating: 16.5kA
• Colour coded ratings.
SPSN Fuse Carriers Technical
Data
Characteristics type (fuse) gF
Breaking capacity
10-20A 4kA
25 & 32A - 6kA
Voltage rating - 250VAC
Connection Capacities
Top: 16 mm
2
flexible cable &
busbar
SPSN Fuse Carriers
Connection Capacity
Rigid 16mm
2
Flexible 10mm
2

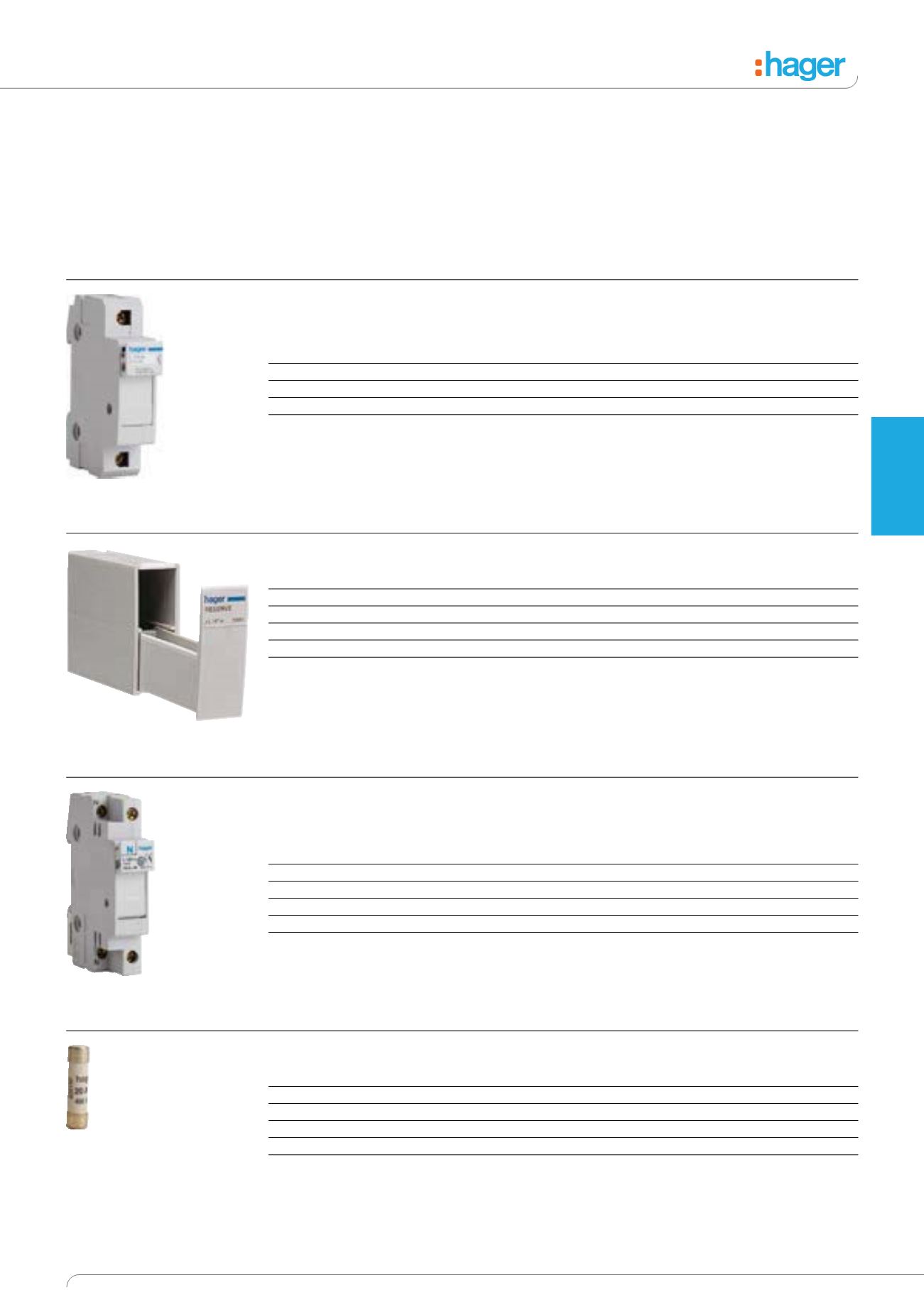

BS HD 60269-3 (Formerly BS 1361) Fuse Carriers
Complete with cartridge fuse. For single phase applications
Current rating
Colour
Width (17.5mm)
Cat ref.
5A 230V
White
1 Mod
LB113
15A 230V
Blue
1 Mod
LB115
20A 230v
Yellow
1 Mod
LB116
30A 230V
Red
1 Mod
LB118
BS HD 60269-3 (Formerly BS 1361) HRC Spare Cartridge Fuses
Current rating
Colour
Cat ref.
5A (23 x 6.35 x 4.8mm)
White
L15300
15A (26 x 10.32 x 6.4mm)
Blue
L15500
20A (26 x 10.32 x 6.4mm)
Yellow
L15600
30A (29 x 12.7 x 8mm)
Red
L15800
Spare Fuse Holder up to 20A
-
L14700
Single Pole and Switched Neutral Fuse Carriers
Supplied without fuse fitted
Rating
Width (17.5mm)
Cat ref.
10A
1 Mod
L12401
16A
1 Mod
L12501
20A
1 Mod
L12601
25A
1 Mod
L12701
32A
1 Mod
L12801
Spare Fuse Type gF
Rating
Dimensions
Cat ref.
10A
8.5 x 23mm
LF138
16A
10.3 x 25.8mm
LF139
20A
8.5 x 31.5mm
LF140
25A
10.3 x 31.5mm
LF141
32A
10.3 x 38mm
LF142
L12401
LF140
LB113
L14700
