4.11
Miniature Circuit Breakers
80 - 125A 15kA D Curve
Curves D
15 kA BS EN 60898-1
15 kA BS EN 60947-2
I n 80 to 125A
Tripping Curves
“D” magnetic setting between
10 to 20 I n .
Use
Commercial an industrial
applications.
Connection Capacity
• 35mm
2
flexible wire (50mm
2
possible with some cable
pin lugs)
• 70mm
2
rigid wire
KEMA
Approved according to
BS EN 60898-1

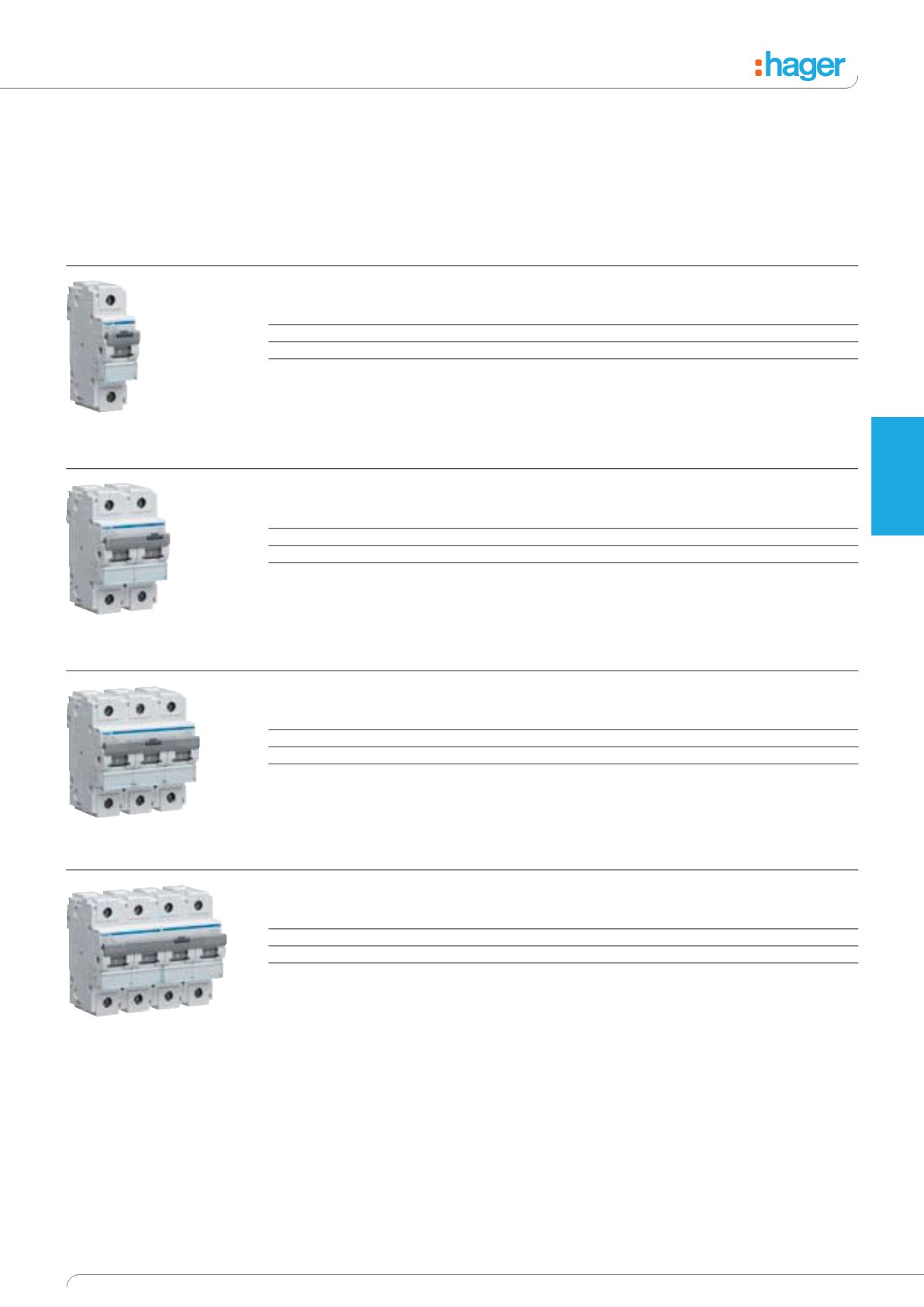

Single Pole MCBs 15kA D Curve
Rating
Width (26.25mm)
Cat ref.
80A
1 ½ Mod
HMD180T
100A
1 ½ Mod
HMD190T
125A
1 ½ Mod
HMD199T
Double Pole MCBs 15kA D Curve
Rating
Width (52.5mm)
Cat ref.
80A
3 Mod
HMD280T
100A
3 Mod
HMD290T
125A
3 Mod
HMD299T
Triple Pole MCBs 15kA D Curve
Rating
Width (78.75mm)
Cat ref.
80A
4 ½ Mod
HMD380T
100A
4 ½ Mod
HMD390T
125A
4 ½ Mod
HMD399T
Four Pole MCBs 15kA D Curve
Rating
Width (105mm)
Cat ref.
80A
6 Mod
HMD480T
100A
6 Mod
HMD490T
125A
6 Mod
HMD499T
HMD199T
HMD299T
HMD399T
HMD499T
