General Catalogue • Protection Devices
Miniature Circuit Breakers
80 - 125A 15kA C Curve
Curves C
15 kA BS EN 60898-1
15 kA BS EN 60947-2
I n 80 to 125A
Tripping Curves
“C” magnetic setting between
5 to 10 I n .
Use
Commercial and industrial
applications.
Connection Capacity
• 35mm
2
flexible wire (50mm
2
possible with some cable
pin lugs)
• 70mm
2
rigid wire
KEMA
Approved according to
BS EN 60898-1.

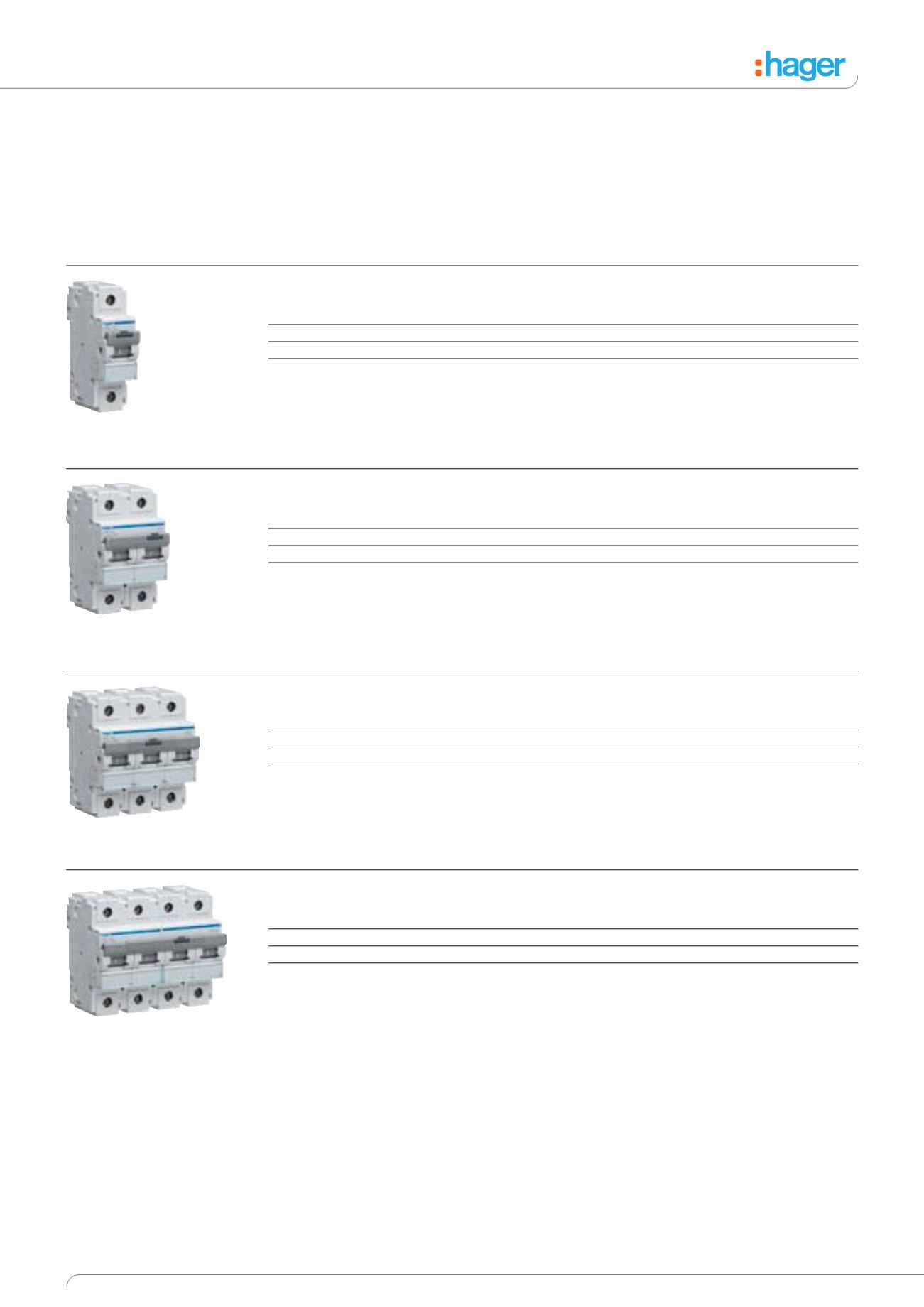

Single Pole MCBs 15kA C Curve
Rating
Width (26.25mm)
Cat ref.
80A
1 ½ Mod
HMC180T
100A
1 ½ Mod
HMC190T
125A
1 ½ Mod
HMC199T
Double Pole MCBs 15kA C Curve
Rating
Width (52.5mm)
Cat ref.
80A
3 Mod
HMC280T
100A
3 Mod
HMC290T
125A
3 Mod
HMC299T
Triple Pole MCBs 15kA C Curve
Rating
Width (78.75mm)
Cat ref.
80A
4 ½ Mod
HMC380T
100A
4 ½ Mod
HMC390T
125A
4 ½ Mod
HMC399T
Four Pole MCBs 15kA C Curve
Rating
Width (105mm)
Cat ref.
80A
6 Mod
HMC480T
100A
6 Mod
HMC490T
125A
6 Mod
HMC499T
HMC199T
HMC299T
HMC399T
HMC499T
