Cablelink Plus Screed
Technical
Cablelink Plus Screed System
Layout
In order that the installation may exhibit the desired flexibility, the ducting is usually
laid out on either a Grid, Fishbone or a Comb Pattern of single, double or triple runs.
A
Grid Pattern
is widely used in areas where the occupants require the highest
degree of flexibility in reorganising work areas. Capacity can be increased by
returning individual ring mains through different runs of duct which in itself allows
easier installation.
The
Fishbone Pattern
is ideal for a medium sized area where lesser boxes are
required.
The
Comb Pattern
is the most economical way of installation where least duct is
used. The comb pattern is suited for medium to small office areas.

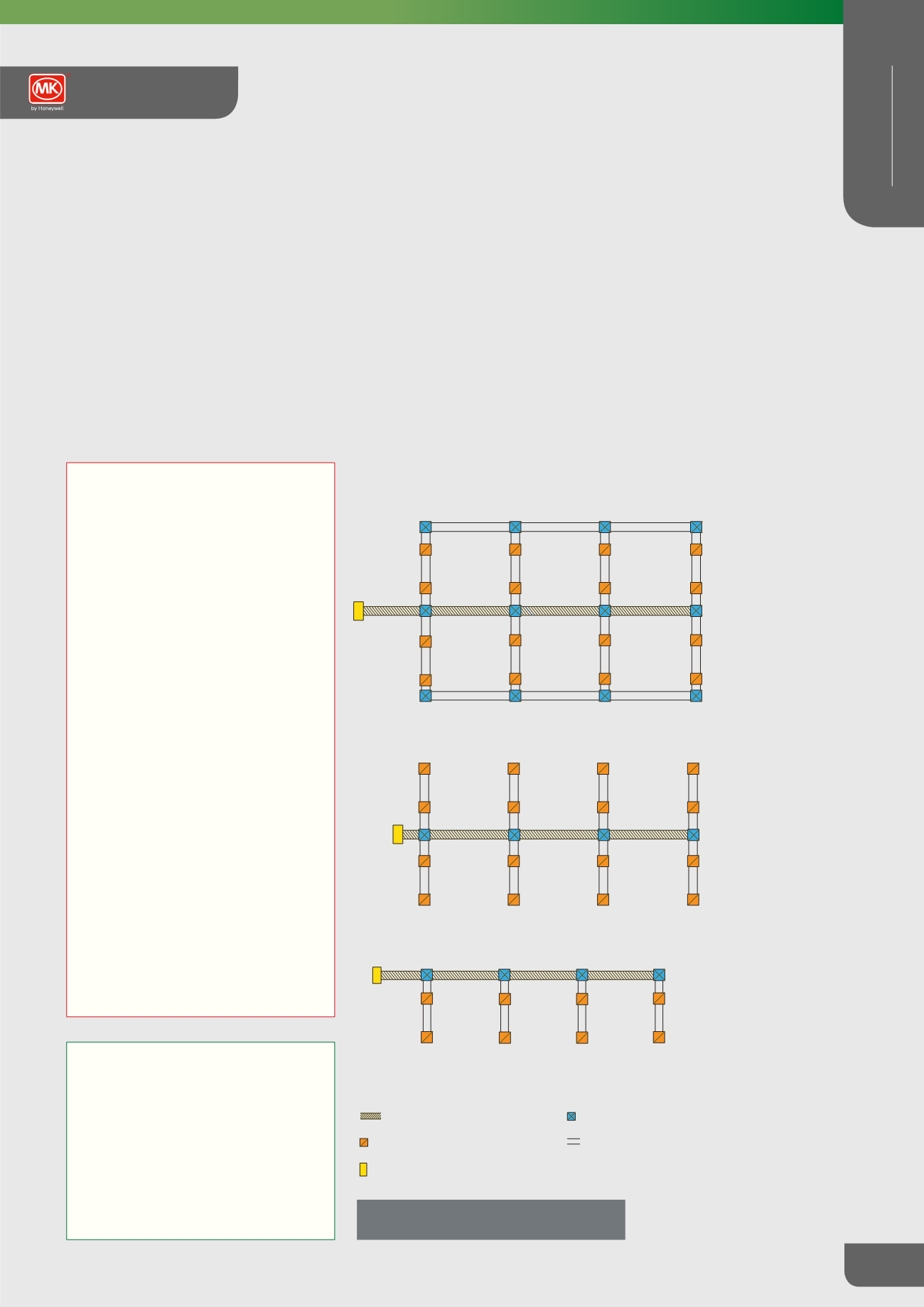

Comb pattern
Fishbone pattern
Grid pattern
Comb pattern
Header Runs
Universal Junction Box
Fishbone pattern
Grid pattern
Comb pattern
Service Outlet Box
Header Runs
Vertical Access Box
Universal Junction Box
Branch Runs
Fishbone pattern
Grid pattern
Comb pattern
Service Outlet Box
Header Runs
Vertical Access Box
Universal Junction Box
Branch Runs
Fishbone pattern
Grid pattern
Standards and Approvals
Cablelink Plus Screed System range complies
with the relevant requirements of the latest
edition of 17th Edition of the IET Wiring
Regulation (BS 7671) and to BS EN 50085
Part 1 and BS EN 50085 Part 2-2. Additionally
the floorboxes also comply with IEC 60670
Parts 1 and 23. The metal used complies to the
requirements of BS EN 10327:2004
FEATURE BENEFITS
l
Tested to BS EN 50085-2-2 to accept
5000N load
l
The system incorporates numerous design
features to ensure a fast and simple installation
l
Designed to support Cat 6 & Cat 6A structured
cabling systems
l
Suitable for screeded depth from 55mm to
110mm (Height adjustment kits and floor
coverings must be used)
l
Minimum finished floor thickness (including
carpet, tile etc) is 74mm, with a 35mm wiring
space. Can be reduced to 64mm if a 25mm
wiring space can be utilised. (A CUBA-1
adjustment kit must be used)
l
Floorboxes are IP2X rated in accordance with
BS EN 50085-1
l
Choice of 1, 2, 3 or 4 compartment floorboxes
l
Self Closing lid in accordance with
IEC 61534-22
l
Wide range of power and data accessories
available to meet all requirements
l
PVCu ducting manufactured from 100%
recycled material*
l
Quality, reliability and safety come as standard
l
Provision of RCD protection supports
compliance to the 17th Edition of the IET Wiring
Regulation (BS 7671)
l
5 year guarantee
TOP TIPS
l
Distance between two junction boxes must not
exceed 6 metres
l
Service Outlet Boxes
– fixed only on branch
ducts and not on header ducts. Fixing service
boxes on the header ducts affects cable
capacity and constricts the header
l
Workstations
– locate over Service Outlet
Boxes so that it does not interfere with normal
office traffic
* based on 2014 consumption
