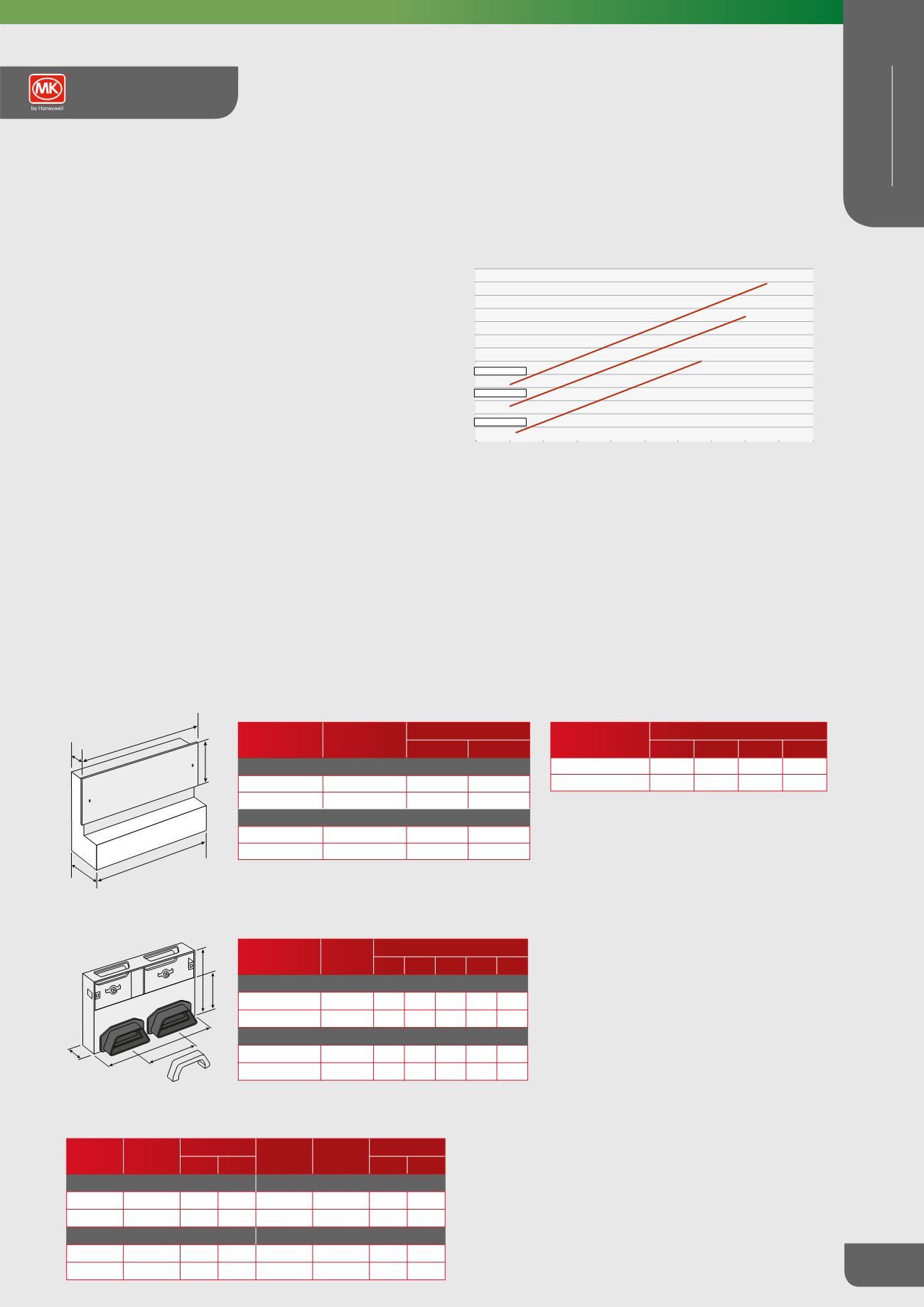

FLOOR SYSTEMS
SCREEDED
Cablelink Plus Screed
Technical
Screed Depth – 25mm, 35mm and 45mm
Wiring Space
This graph enables the specifier / installer to determine which
depth the screed (plus floor covering) must be in order to achieve
a certain accessory wiring space and plug top clearance within the
floorbox. For example if the specifier requires a 35mm standard
wiring depth and a 45mm plug top clearance then the graph
shows that an 82mm screed (plus 8mm non-compressible floor
covering) depth is required. Alternatively, if the depth is fixed,
at 90mm for example, then by having a 45mm wiring space the
resulting plug top clearance will be 43mm. If additional plug top
clearance is required then the wiring depth can be reduced to
35mm or even 25mm providing a plug top clearance of 53mm
or 63mm respectively. Care must be taken to ensure there is
sufficient wiring depth and plug top clearance for each individual
installation. All these dimensions are based upon the floor
covering being 8mm thick when fully compressed. If the floor
covering is thicker or thinner then the screed depth must be
reduced or increased as appropriate. When no floor covering is to
be used the minimum screed depth with a 25mm wiring space is
64mm. For screed depths greater than 105mm, service boxes are
provided with fixed wiring spaces of 75mm, 100mm, 125mm and
150mm respectively.
50
55
60
65
70
75
80
85
90
95
100
105
110
115
20
25
30
35
40
45
50
55
60
65
70
PlugTopClearance (mm)
25mmWiringSpace
35mmWiringSpace
45mmWiringSpace
ScreedDepth (mm)
Vertical Access Boxes: Metal Ducting
A
F
B
C
E
D
LIST NUMBER TO SUIT BOX
COVER PLATE DIMS
A (mm)
B (mm)
FLUSH COVER PLATE (SUPPLIED A STANDARD)
n/a
CUV265
265
90
n/a
CUV340
340
90
OVERLAPPING COVER PLATE
CUVP265
CUV265
285
100
CUVP340
CUV340
360
100
LIST NUMBER
BOX DIMENSIONS (mm)
C
D E
F
CUV265
265
85
50
200
CUV340
340
85
50
200
A
E
C
B
D
LIST NUMBER TYPE
DIMENSIONS (mm)
A
B C
D E
SHALLOW ACCESS
SF88152
Twin 260 170 50 110 100
SF88153
Triple 370 170 50 110 100
FULL ACCESS
SF88172
Twin 260 270 50 110 100
SF88173
Triple 370 270 50 110 100
LIST
NUMBER TYPE
DIMS (mm)
LIST
NUMBER TYPE
DIMS (mm)
A B
A B
OVERLAPPING SHALLOW ACCESS
FLUSH SHALLOW ACCESS
SF88180
Twin
280 80 SF88176
Twin
260 70
SF88181 Triple
390 80 SF88177 Triple
370 70
OVERLAPPING FULL ACCESS
FLUSH FULL ACCESS
SF88188
Twin
280 180 SF88184
Twin
260 170
SF88189 Triple
390 180 SF88185 Triple
370 170
Vertical Access Boxes: PVC Ducting
Cover Plates
Cablelink Plus Screed System
