Interact Overhead
Technical
Interact Overhead Power

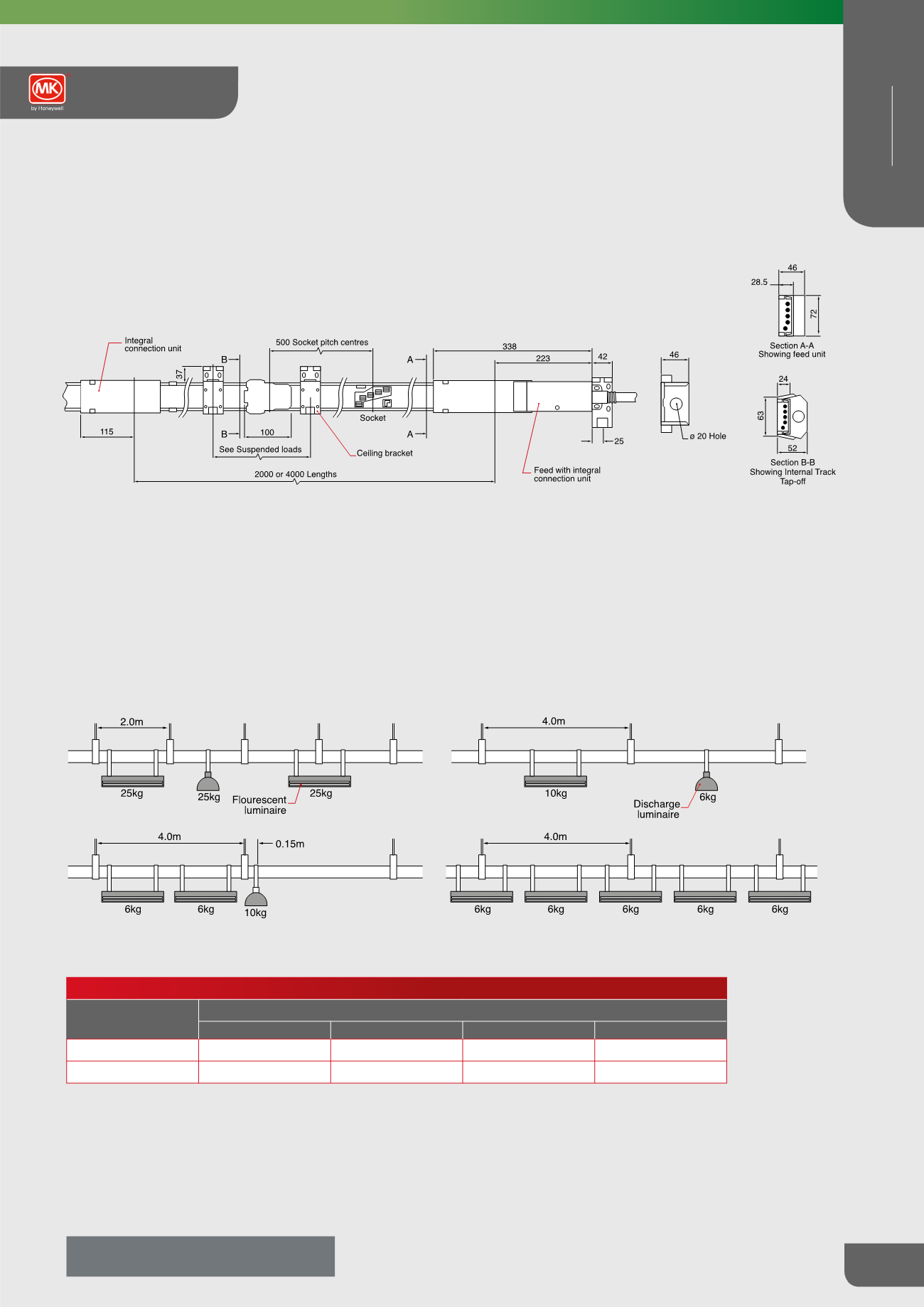

Dimensions
Suspended Loads
The load that can be suspended from the overhead powertrack is dependent on the distance between the supports. Loads should be
evenly distributed between hanging brackets. The maximum deflection should not be greater than 1/300.
The spacing between the powertrack ceiling brackets should not exceed 4 metres. The guidelines below should be followed when
deciding on the number of ceiling brackets required.
The rods should be of suitable size to carry the combined weight of the track plus the suspended load.
Joints between two lengths of track should be no greater than 500mm from a hanging bracket.
Note:
These values are for edge mounted track only. Flat mounted track should not be used for load suspension.
40A POWER TRACK WEIGHT
LENGTH M
NUMBER OF COPPER CONDUCTORS
2+PE
3+PE
4+PE
5+PE (& DUAL GREY)
2
3.1 Kg
3.36 Kg
3.61 Kg
3.87 Kg
4
5.72 Kg
6.22 Kg
6.73 Kg
7.23 Kg
