Onix Plus™ Technical
50
55
60
65
70
75
80
85
90
95
100
105
110
115
20
25
30
35
40
45
50
55
60
65
70
PlugTop Clearance (mm)
25mmWiring Space
35mmWiring Space
45mmWiring Space
Screed Depth (mm)
75

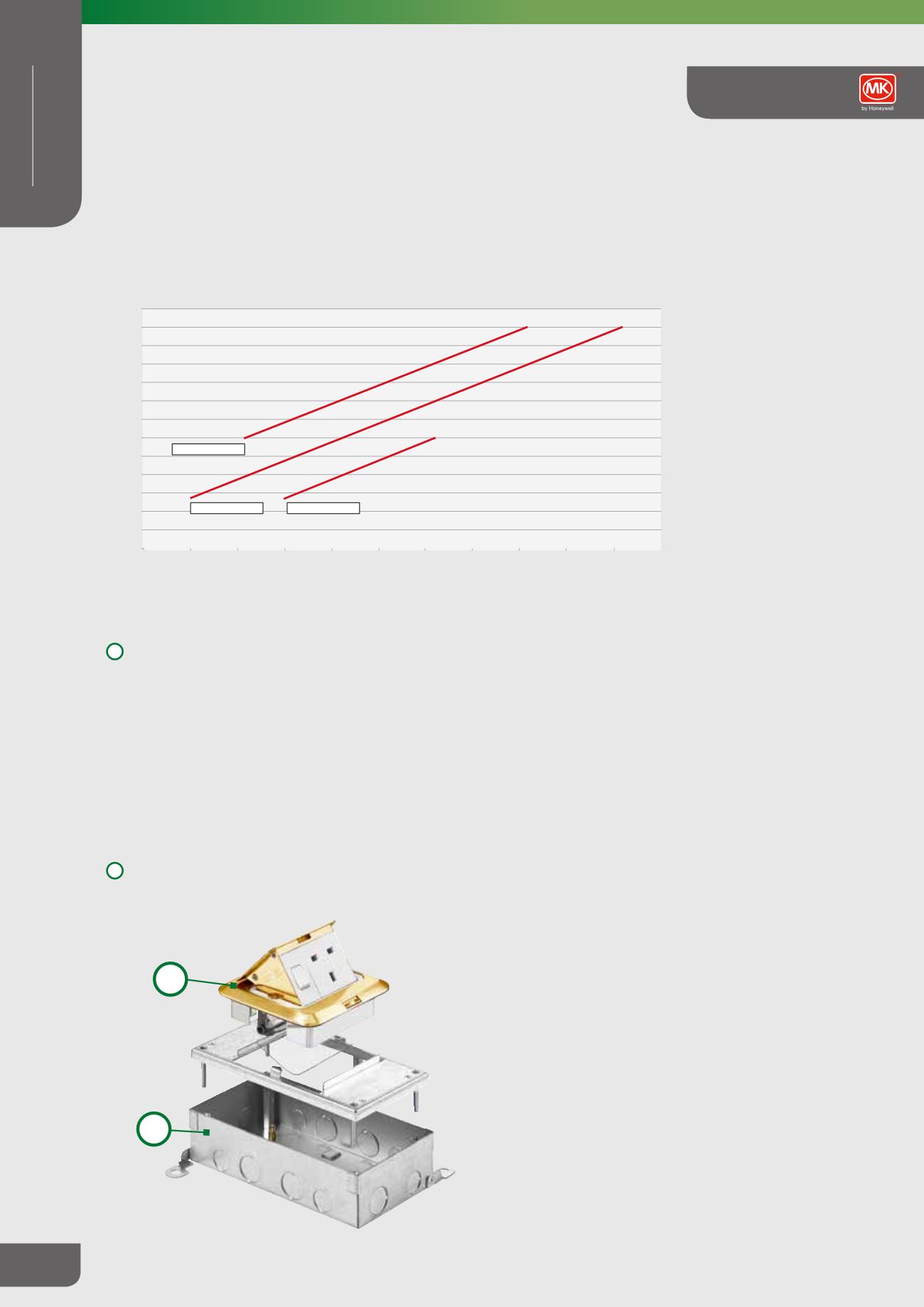

Installation of Metal Power Grommets
1
The Screed Base Unit, is laid onto the concrete slab.
There are two Screed Bases available depending on the
screed depth.
l
Screed depth between 55mm and 80mm use
NXGB100-1
l
Screed depth between 80mm and 110mm use
NXGB100X-1
A metal plate supplied with the Screed Base Unit to keep the
screed out of the interior of the box.
After screeding the mounting plate is fitted and the floor
covering is laid.
2
The grommet top is installed after the floor covering is laid.
The lid is simply screwed into position until tight with the floor.
Screed Depth – 25mm, 35mm and 45mm Wiring Space
Cat 6 Compatibility
With Cat 6 data cabling the orientation and depth of many data
outlets has changed, resulting in the need for greater backbox
depths and wiring space to accommodate these longer data
outlet. No longer is a 35mm wiring space sufficient to ensure data
terminations can be made to the manufacturer’s recommendations
to prevent transmission losses. 45mm wiring space for the
Cablelink Plus floorbox system is available.
