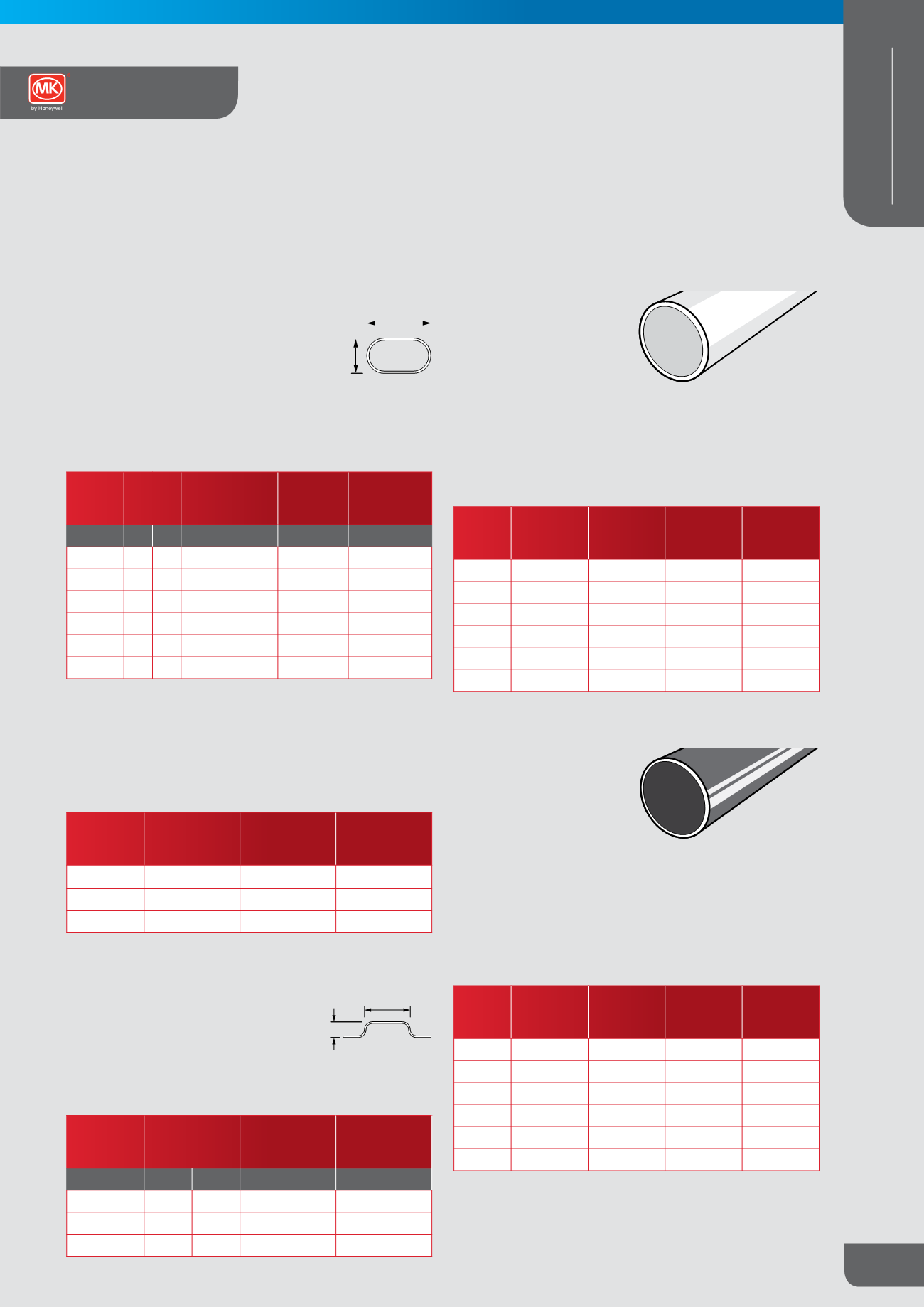

667
CABLE MANAGEMENT
PERIMETER AND
DISTRIBUTION
Egatube Conduit
Technical
A
B
OVAL SECTION
CONDUIT
(REF EOC)
Oval conduit is mainly used for switch drops and general domestic
installations in both buried and surface installations. Manufactured
in accordance with requirements of BS 4607 Part 5 and
BS EN 50085 Part 1 and Part 2-1.
LIST.
NO.
SIZE
mm
WALL
THICKNESS
mm
WEIGHT
KG/M
CROSS
SECTION AREA
mm²
A B
EOC1 13 8
0.9
0.036
60
EOC2 16 10
0.9
0.049
103
EOC3 22.5 11
0.9
0.084
172
EOC4 29 11
1.0
0.097
225
EOC5 29 16
1.0
0.125
336
EOC6 23 14
0.8
0.081
238
Standard length 3 metres.
FLEXIBLE CONDUIT (REF EF)
Suitable for connection of vibrating equipment or to provide tight
bends for interconnecting conduits. Can be surface mounted or
cast in concrete and can be used with standard conduit fittings.
Manufactured in accordance with BS EN 61386-1.
LIST.
NO.
DIAMETER
mm
WEIGHT
KG/M
CROSS
SECTION AREA
mm²
EF1
16
0.05
107
EF2
20
0.064
189
EF3
25
0.094
308
Standard lengths 50 metre coils.
Dimensions (mm)
A
B
RECTANGULAR CHANNELLING
(REF REC)
Used for switch drops and general domestic installations mainly in
carcass situations.
LIST.
NO.
SIZE
mm
WALL
THICKNESS
mm
WEIGHT
KG/M
A
B
REC1
12.5
8
0.9
0.047
REC2
25
8
0.9
0.051
REC3
38
9.5
0.9
0.069
Standard length 2 metres.
ROUND SECTION HEAVY GAUGE
HIGH IMPACT CONDUIT
(REF. HIP)
This is acknowledged to be the finest PVCu conduit available and
is designed to withstand the most arduous site conditions and
extremes of weather.
Temperature range –5°C to +60°C.
Complies with BS EN 61386 Part 1 Heavy Impact.
LIST.
NO.
OUTSIDE
DIAMETER
mm
WALL
THICKNESS
mm
WEIGHT
KG/M
CROSS
SECTION AREA
mm²
HIP1
16
1.7
0.102
121
HIP2
20
1.8
0.150
209
HIP3
25
1.9
0.205
350
HIP4
32
2.5
0.322
573
HIP5
38
2.5
0.394
859
HIP6
50
3.1
0.684
1506
Standard length 3 metres.
ROUND SECTION LIGHT GAUGE
HIGH IMPACT CONDUIT
(REF. HLG)
Suitable for applications where heavy compressive strength is not
required. The high impact characteristic combined with the lighter
gauge provides excellent physical properties for flush and surface
applications.
Temperature range –5°C to +60°C.
Complies with BS EN 61386 Part 1 Medium Impact.
LIST.
NO.
OUTSIDE
DIAMETER
mm
WALL
THICKNESS
mm
WEIGHT
KG/M
CROSS
SECTION AREA
mm²
HLG1
16
1.1
0.076
143
HLG2
20
1.3
0.102
237
HLG3
25
1.5
0.170
376
HLG4
32
1.5
0.214
654
HLG5
38
1.5
0.259
954
HLG6
50
1.9
0.417
1676
Standard length 3 metres.
Conduit and fittings
