673
CABLE MANAGEMENT
PERIMETER AND
DISTRIBUTION

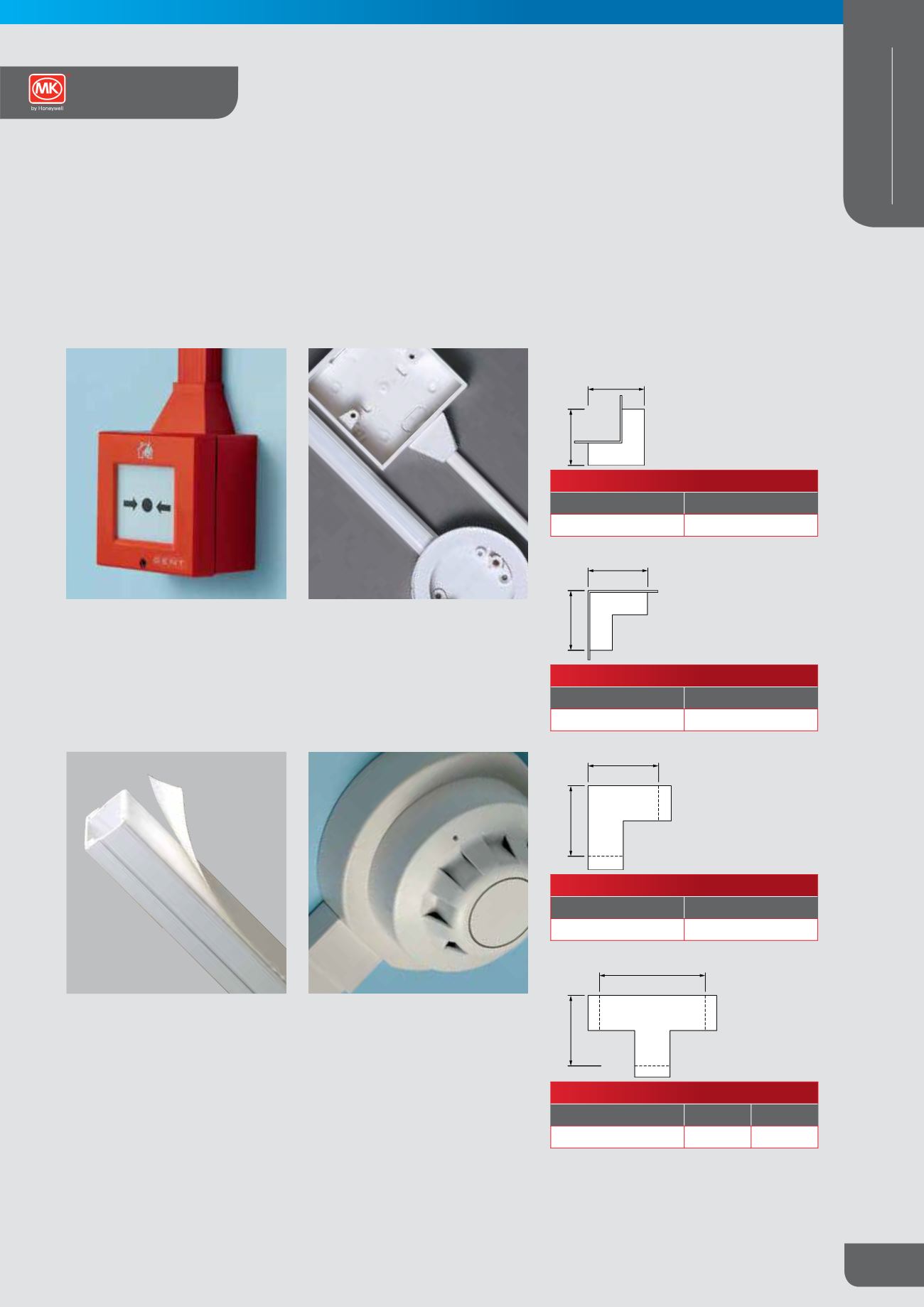

Ega Mini Trunking
Technical
Ega Mini, Communication and Red Alert Trunking
Description
A range of trunking systems designed for cable distribution in new or refurbishment
projects in the domestic and commercial sectors.
Circular boxes
These are designed to accept standard
ceiling roses, pull switches and plug-in
lighting fittings. The base incorporates
an earth terminal facility (order terminal
separately). Red Alert bases are
supplied with earth terminal. 50.8 mm
fixing centres and M4 Pillar inserts.
Load suspension 3 kg @ 60°C max.
Speedfix trunkings
These are self-adhesive profiles used to
distribute data and voice cabling.
All systems are compatible and have
simple clip on lids which positively
locate when hand pressure is applied.
Communication trunkings
Designed to take smaller diameter
telecommunications and data cabling.
There are three sizes available and the
systems are complete with a range of
fittings.
Red Alert
Available in red, simplifies alarm
circuit identification and is specifically
designed for use with light duty mineral
insulated cables.
Components
The four components shown below are fabricated
sections and space must be allowed for inclusion
in runs of trunking. All other components snap on
over standard trunking profiles.
A
A
EXTERNAL CORNER (90
°
) YAE
LIST NO
A
YAE7
80mm
B
B
INTERNAL CORNER (90
°
) YAI
LIST NO
B
YAI7
50mm
C
C
FLAT ANGLE (90
°
) YAF
LIST NO
C
YAF7
100mm
D
E
FLAT TEE (90
°
) YTF
LIST NO
D
E
YTF7
150mm 100mm
