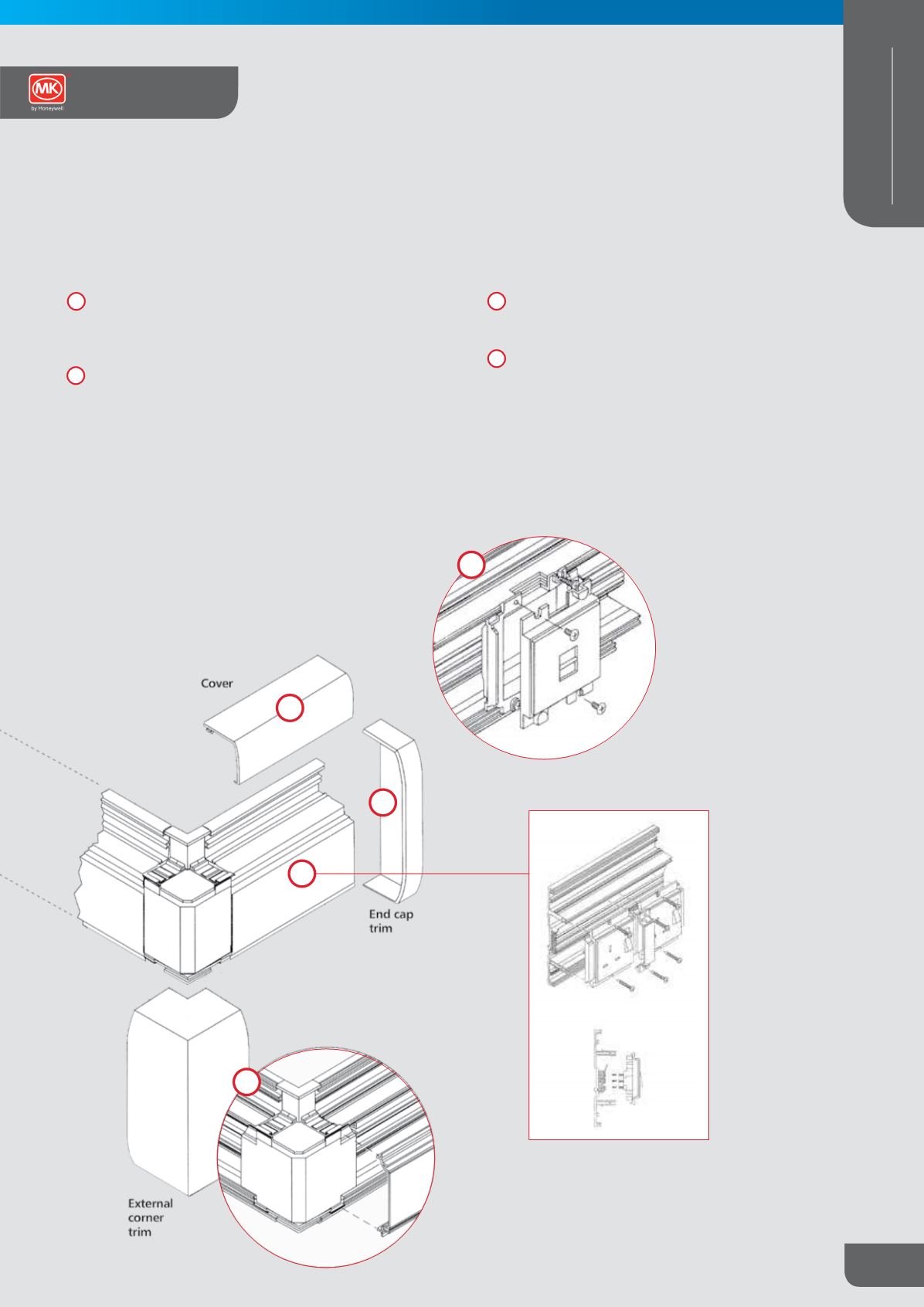

Moulded corner and coupler shields should be fitted before
fitting any covers. They are secured by the central covers
overlapping each side of the component and do not require
additional fixing.
Powerlink Plus Sockets – Plug the socket onto the busbars
in the required region ensuring that the socket clips fully
locate firmly on to their corresponding busbars. Secure with
screws provided. Note – do not tamper with busbar clips.
Plug on connection units – Connect the load conductors
which are either routed through the centre compartment of
the trunking or enter through the flex outlet. Plug connection
unit onto busbar where required and secure as described
above.
Outer Covers – For central covers and end cap
retainers, leave a gap of 8-10mm and snap fit onto
trunking.
Snap fit end caps then other trims after fitting all central
and outer covers.
