627
CABLE MANAGEMENT
PERIMETER AND
DISTRIBUTION

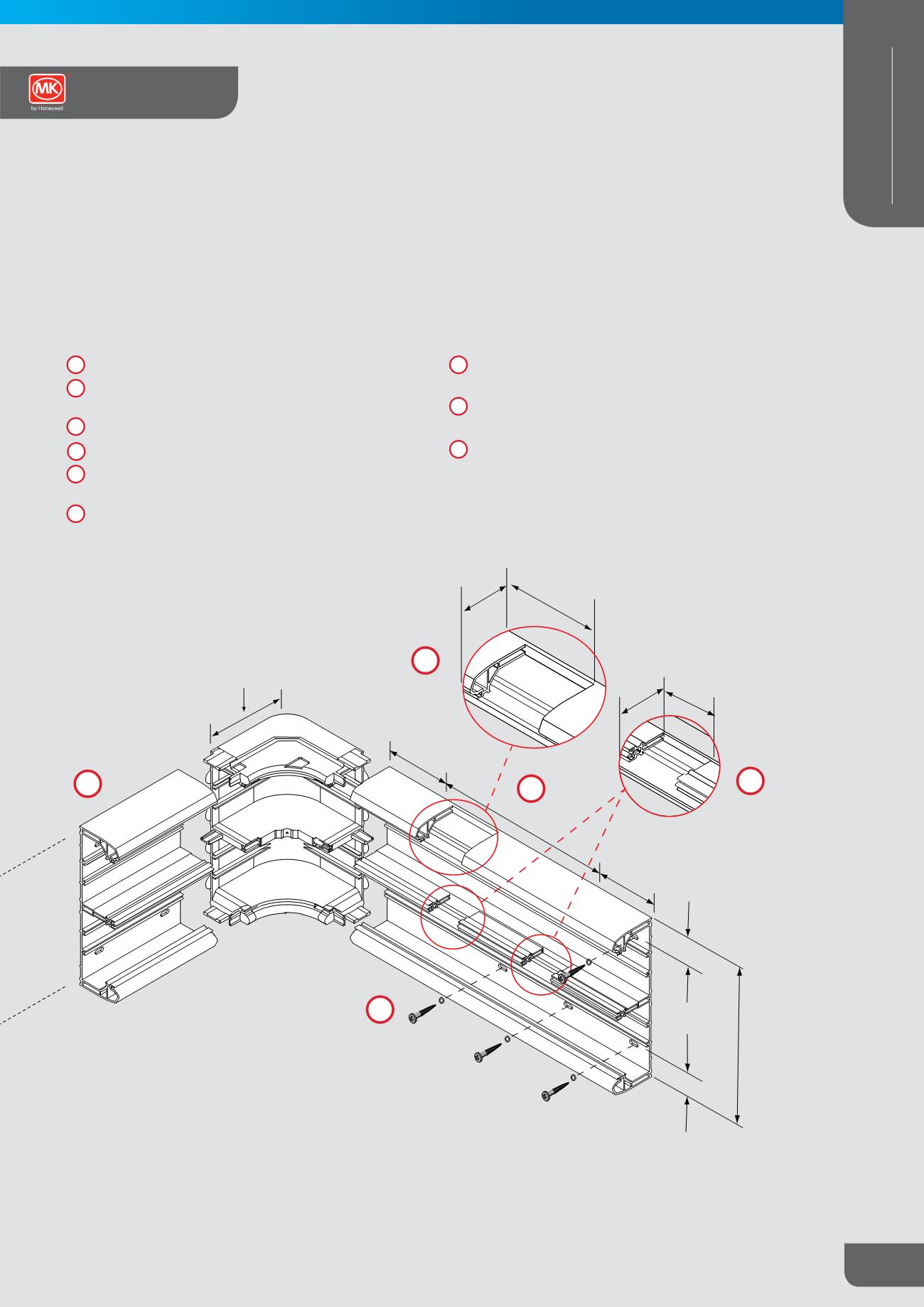

Prestige 2Com
Technical
118mm
100mm max
100mm max
34mm
210mm
34mm
500mm max
47mm
wide
70mm
wide
56mm
deep
34mm
deep
6
7
8
9a
General Notes
Prior to installation strike a line of trunking using a plumb and
chalk line for vertical, and spirit levels for horizontal runs.
Drill Holes in supporting walls prior to fixing
When mounting at skirting level allowance should be
made for thickness of floor finish
Start Installation at a corner position
Debur all carrier cut ends
Carrier couplers must be placed at all junctions between
carriers
Leave a gap of 5mm for expansion in long runs
Fixings require washers and No. 8 Round or Pan head
screws
Fixings to be at 500mm centres and also at points within
100mm of each end
Cut trunking to allow for mini trunking / conduit (9a)
and box adaptor crossover bridge (9b).
1
2
3
4
5
6
7
8
9
9b
Data Trunking System
