CABLE MANAGEMENT
PERIMETER AND
DISTRIBUTION
Prestige 2Com
Technical
1 gang 76mm
2 gang 137mm
3 gang 197mm
for outlet boxes
88mm
for mini
trunking
adaptor

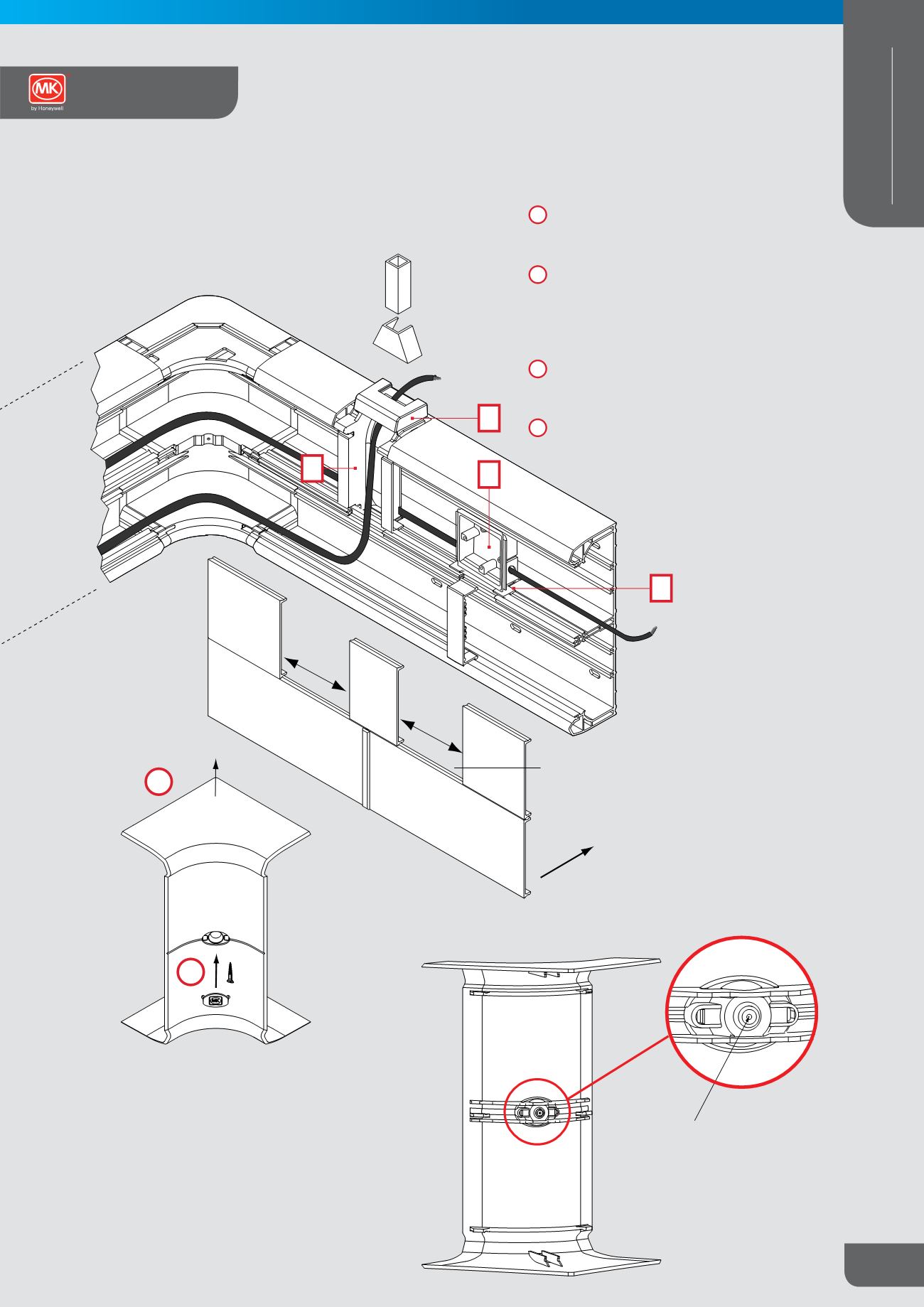

Fit covers by locating them correctly into
position and pushing them firmly to snap in
place.
Determine whether corners need to be screw
fixed
(Fig 1)
. Continue to locate correctly the
Corner and Joint covers and push them firmly
until they snap into place. Fit the appropriate
badge to the Corner Covers.
Fit covers by locating them correctly into
position and pushing them firmly to snap in
place.
Fit end caps by pushing them on from the
front so the clips slide behind the retainers
and engage in the main carrier.
a
b
c
d
16
17
FIGURE 1
15
16
17
18
Data Trunking System
Drill 4.5mm dia.
clearance hole
to allow fixing
of screw.
