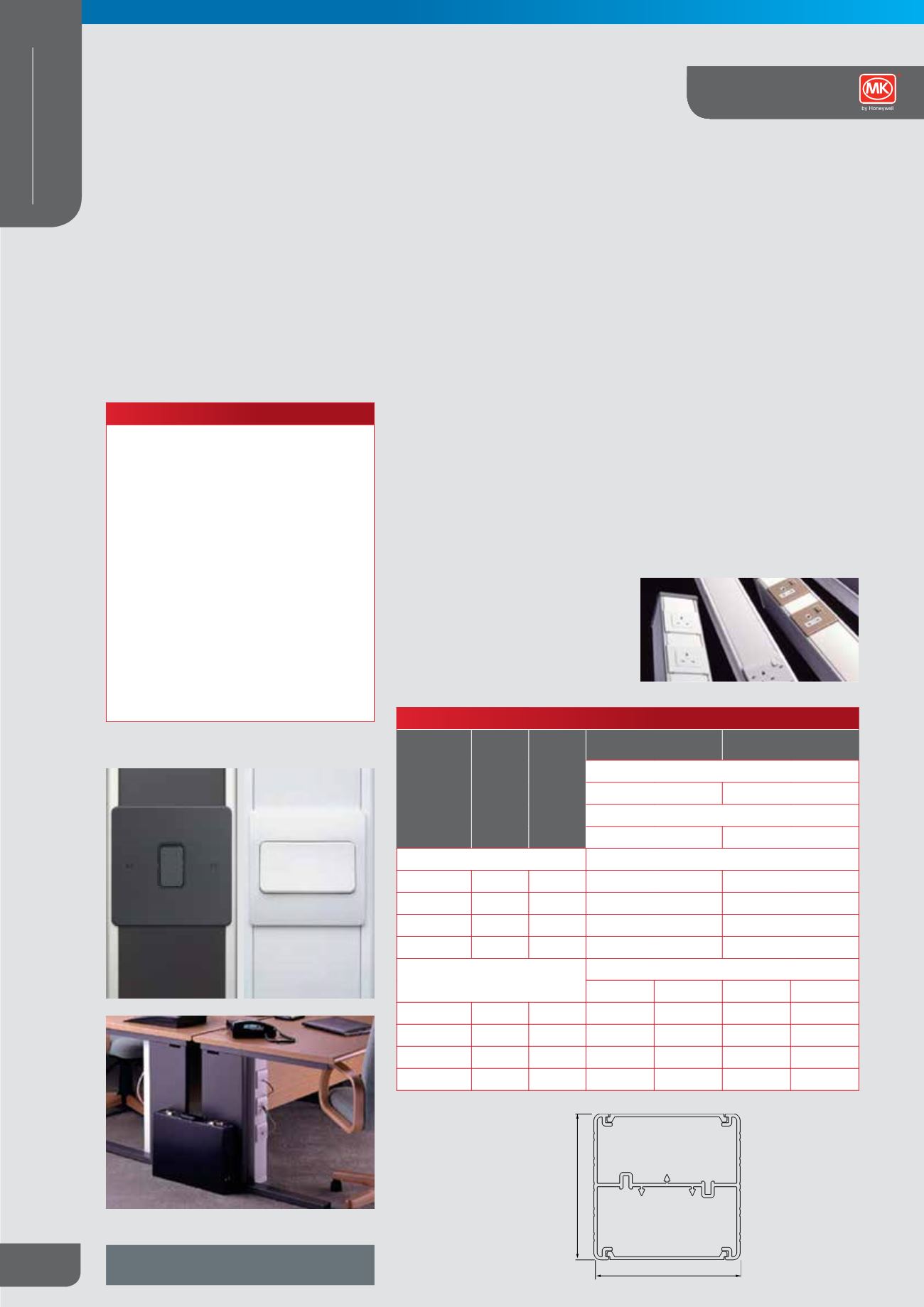

630
CABLE MANAGEMENT
PERIMETER AND
DISTRIBUTION
Standards and Approvals
Prestige Power Post and Power Poles
are manufactured in accordance with the
requirements of BS 4678 Part 4.
All systems comply with all relevant
requirements of BS 7671:2008.
TECHNICAL SPECIFICATION
MATERIALS
Aluminium AW 6060.
Complying with BS EN 573 and BS EN 755.
PVCu materials used in the manufacture of MK products
are self extinguishing non-flame propagating in
accordance with BS 4678 Part 4.
Extrusion material has been tested by a UKAS accredited
laboratory in accordance with the requirements of
BS 476 Part 7 and has achieved a Class 1Y.
Moulding material has been tested by a UKAS accredited
laboratory and conforms with IEC 695-2-1 at a severity
of 650°C
IET WIRING REGULATIONS
Designed and manufactured to comply in all respects
with BS 7671:2008 (IET Wiring Regulations 17th
Edition: 2008)
QUALITY ASSURANCE
The system is manufactured to BS EN ISO 9001
PRESTIGE POLE AND POST CABLE CAPACITY
TYPE OF
CONDUCTOR SIZE
CABLE
FACTOR
COMPARTMENT 1
COMPARTMENT 1
WITH PPC20 BACKBOX
Full Term CSA 100% Fill (MM
2
)
4196
1625
TERM AT 45% FILL (MM
2
)
1888
731
POWER CABLES
NUMBER OF CABLES AT 45% FILL
PVC stranded 1.5mm
2
8.6
219
85
2.5mm
2
12.6
149
58
4mm
2
16.6
113
44
6mm
2
21.2
89
34
DATA CABLES
Number of Cables at 45% Fill (a) and Full Capacity (b)
A
B
A
B
Cat 5E UTP 5.5mm dia.
30.2
62
138
24
53
Cat 5E STP 6.0mm dia.
36.0
52
116
20
45
Cat 6 UTP 6.5mm dia.
42.2
44
99
17
38
Cat 6 STP 7.0mm dia.
49.0
38
85
14
33
For a full range of corresponding products,
see pages 318-319 in the product selector.
Prestige Poles
and Posts Technical
Description
POWER POST
MK Power Post provides a means to
supply multi-services to work stations as
an alternative to, or in conjunction with
services outlet boxes. They fit neatly
under desks and provide up to ten
accessory outlets for any combination
of power, telecommunications and data
services.
Power Posts have a natural anodised
aluminium body and are available with
PVCu covers in a choice of charcoal
or white, or white powder coated
aluminium body with white PVCu cover.
It is recommended that Power Posts are
fitted with MK accessories which have
thin profile front plates and are available
in co-ordinating colours.
When used in conjunction with Interact
or Cablelink Plus Screeded Floor
systems, Power Posts provide even
greater flexibility in cable distribution.
POWER POLE
MK Power Pole, similar in construction
to the Power Post, is a
multi-compartment system segregating
power, data and telecom circuits and
can accommodate a complete range of
accessories including fire alarm manual
call points.
It is suitable for both suspended and
solid ceiling applications.
Prestige Power Poles can be easily cut
to size on site and are equipped with a
jacking facility to assist installation and
ensure secure location.
100
100
1
1
Dimensions (mm)
