WIRING DEVICES
Standards and approvals
Filtered socket outlets comply with
BS 5733:2010.
TECHNICAL SPECIFICATION
ELECTRICAL
CURRENT RATING
13A maximum total for 2 sockets
VOLTAGE RATING
250V a.c.
EARTH LEAKAGE
0.5 mA
SUPPRESSION
150 kHz – 30 MHz (transients)
MAXIMUM ENERGY ABSORPTION
140 Joules L – N
140 Joules L – E
TERMINAL CAPACITY
2 x 6mm²
3 x 4mm²
3 x 2.5mm²
3 x 1.5mm²
PHYSICAL
AMBIENT OPERATING TEMPERATURE
-5°C to +40°C
THERMAL OVERLOAD
The K1826 and K2826 filter socket incorporates a
thermal overload device in the RFI filter section.
Overload current causes temperature rise, resulting in
automatic ‘trip out’. The overload device will re-set as
the temperature falls.
IP RATING
IP2XD
MAX. INSTALLATION ALTITUDE
2000 metres
FEATURES
l Moulded ‘on’ indicator flash on
switches will not rub off – totally safe
l 3 pin operated safety shutter
l Printed terminal markings on grey rear
mouldings for clearer identification
l Reduces risk of damage to equipment
and down time
l Reduces risk of data loss
l 2 way filtering – into appliance and
back into mains supply
l Additional electrical safety from DP
Switch, neutral ‘make first’, ‘break last’
feature
l Double pole switches
l Dual earth terminals for high integrity
earthing
l Clearly visible LED on filter cassette,
changes from green to red when
replacement required
l Simple replacement of cassettes
l 10 year guarantee (except filter
cassette)
l 3mm minimum switch contact gap
l Backed out and captive terminal
screws

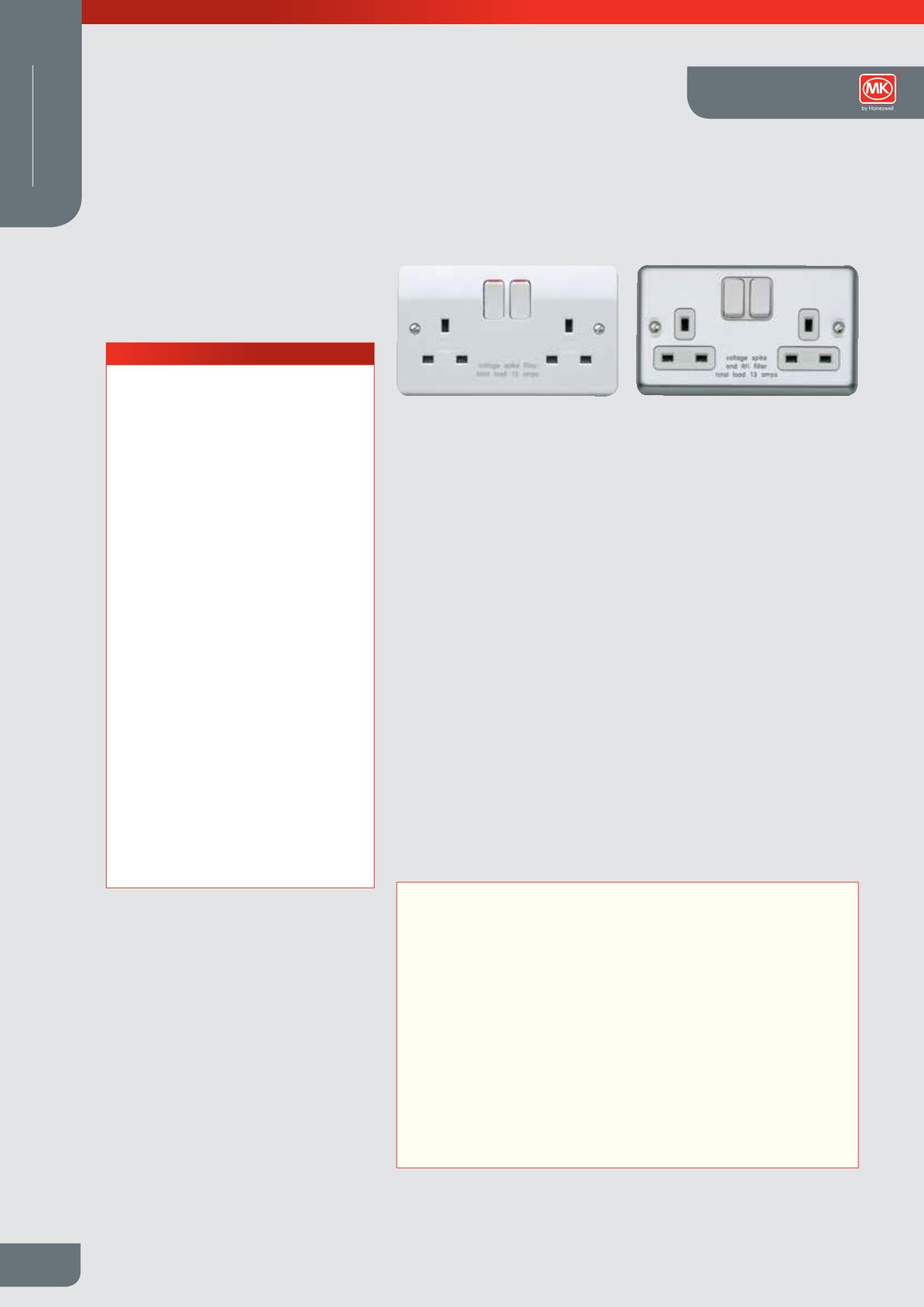

Filtered Switchsocket Outlets (Logic Plus and Albany Plus)
Description
A range of sockets in the Logic Plus and Albany Plus styles, designed to combat
interference to or data losses on sensitive electrical products and systems due to
mains borne voltage spikes and RFI.
Such systems include:
l Computer or microprocessor based equipment
l Telecommunications systems
l Electronic measurement equipment
l Cash registers
l Audio visual and hi-fi equipment
These products can be quickly installed as replacements for existing twin 13A
sockets or in a new installation.
Fitted with two earth terminals to provide a double earth facility for use when
installations require a high integrity protective connection as specified within the
latest edition of BS 7671.
Filter cassettes
Filter cassettes are supplied with sockets and have an LED which shows green
under normal conditions but will turn red or extinguish when a replacement cassette
(K1800WHI) is required. An alarm will also beep at 5 second intervals to indicate
replacement necessity. It can be de-activated if required.
