WIRING DEVICES
mkelectric.co.ukFEATURES
l
Top access terminal screws make
wiring quicker and easier
l
Automatic primary supply switching
on insertion of plug
l
Choice of 230V or 115V output socket
positions
l
Safety interlocked shutters to prevent
insertion of two plugs simultaneously
l
Only one size of screwdriver required
for installation
l
Front plate fixing screws retained on
rear case moulding
l
Integral over current device to protect
transformer
l
Suitable for use with electric
toothbrush chargers
Standards and approvals
Shaver/Toothbrush supply units comply with
BS 61558-2-5:1998
Accommodates plugs as follows:
l
British 5mm dia pins on 16.6mm pitch (230V
socket) to BS 4573:1970.
l
European 4mm dia pins on 17 to 19mm pitch
(230V socket) to BS EN 50075
l
Australian 6.5 x 1.6 flat blades each set
at 30° to the vertical on a nominal pitch of
13.7mm (230V socket) AS/NZS 3112:2000
l
American 6.6 x 1.6 flat horizontal blades
on 12.7mm pitch (115V socket) to UL498 /
NEMA WD6.
TECHNICAL SPECIFICATION
ELECTRICAL
VOLTAGE RATING
K701:
230V a.c. Input (will operate at 220-250V a.c.)
K706:
127V a.c. Input (will operate at 110-130V a.c.)
230V or 115V nominal outputs
CURRENT RATING
K701: 200mA max.
(internal thermister trip current)
K706: 400mA max.
(internal thermister trip current)
MAXIMUM LOAD
20VA
No load voltage < 275V
TERMINAL CAPACITIES
Each terminal will accommodate 1 x 4mm² or
2 x 2.5mm² solid conductors
PHYSICAL
AMBIENT OPERATING TEMPERATURE
-5°C to +40°C
IP RATING
IP41 (In Zone 2 if fixed where direct spray from
showers is unlikely)
MAX. INSTALLATION ALTITUDE
2000 metres

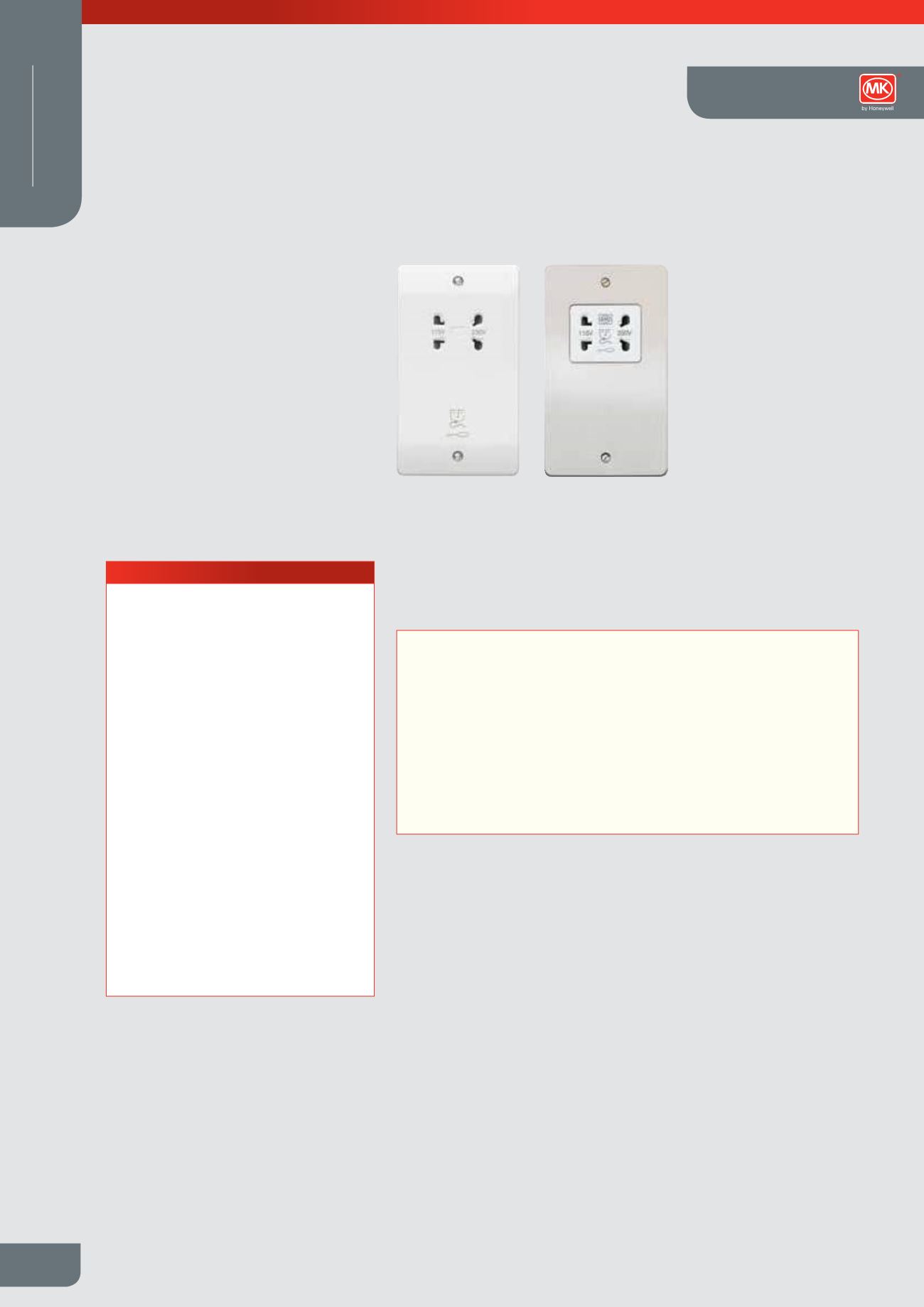

Shaver/Toothbrush Supply Units
Description
Designed for ease of installation and having many of the advantageous design
features of the MK range of wiring devices.
May be used in bathrooms and washrooms – must only be installed in accordance
with the latest edition of BS 7671.
Installation
Shaver/Toothbrush supply unit should be wall mounted.
