WIRING DEVICES
Technical Hotline
+44 (0)1268 563720
FEATURES
l
Top access terminals make wiring
quicker and easier
l
Only one size of screwdriver required
for installation
l
Terminal screws supplied ‘backed out’
and held captive within the terminal
moulding
l
White printed terminal markings
on grey rear mouldings for clearer
identification
l
Front plate fixing screws retained on
rear case moulding

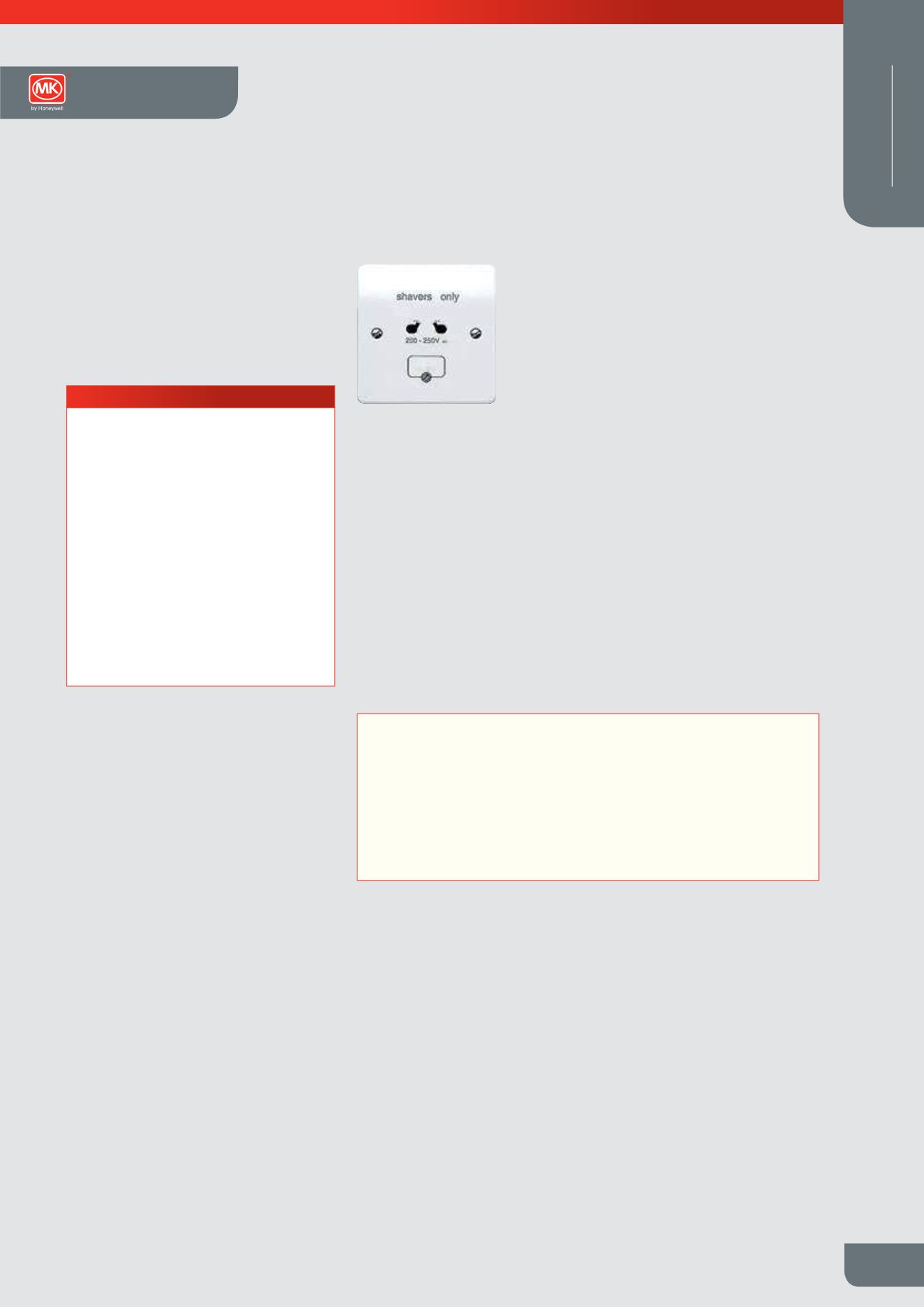

Shaver Socket Outlets
Description
Designed for ease of installation and having many of the advantageous features of
the Logic Plus
TM
range.
The shaver socket outlet accommodates the following plugs:
British 5mm dia pins on 16.6mm pitch (230V socket) to BS 4573:1970.
European 4mm dia pins on 17 to 19mm pitch (230V socket) to IEC 83:1975
Standard C5.
Australian 6.5 x 1.6 flat blades each set at 30° to the vertical on a nominal pitch of
13.7mm (230V socket).
AS C112:1964.
The fuse carrier is captive and opened by a fast acting, screwdriver operated worm
drive screw for ease of replacement.
Installation
This shaver socket
must not
be used in bathrooms and washrooms. Non-isolated,
fused, shaver socket outlets must never be installed in any location subject to
splashes, condensation or damp conditions.
For installation in any other room where a wash basin or shower cubicle is installed
then refer to the current IET wiring regulations.
Standards and approvals
Shaver socket outlets comply with
BS 4573:1970 and IEC 60884-1:2006.
Plug pin apertures, and engagement face
dimensions comply with BS 4573:1970.
TECHNICAL SPECIFICATION
ELECTRICAL
VOLTAGE RATING
200-250V a.c. Input
MAXIMUM LOAD
200 mA (internal thermister trip current)
TERMINAL CAPACITIES
Each terminal will accommodate
1 x 4mm², or 2 x 2.5mm², 3 x 1.5 solid conductors
PHYSICAL
AMBIENT OPERATING TEMPERATURE
-5°C to +40°C
IP RATING
IP2XD
MAX. INSTALLATION ALTITUDE
2000 metres
Wiring Devices Technical
– Logic Plus™
