WIRING DEVICES
Technical Hotline
+44 (0)1268 563720
Description

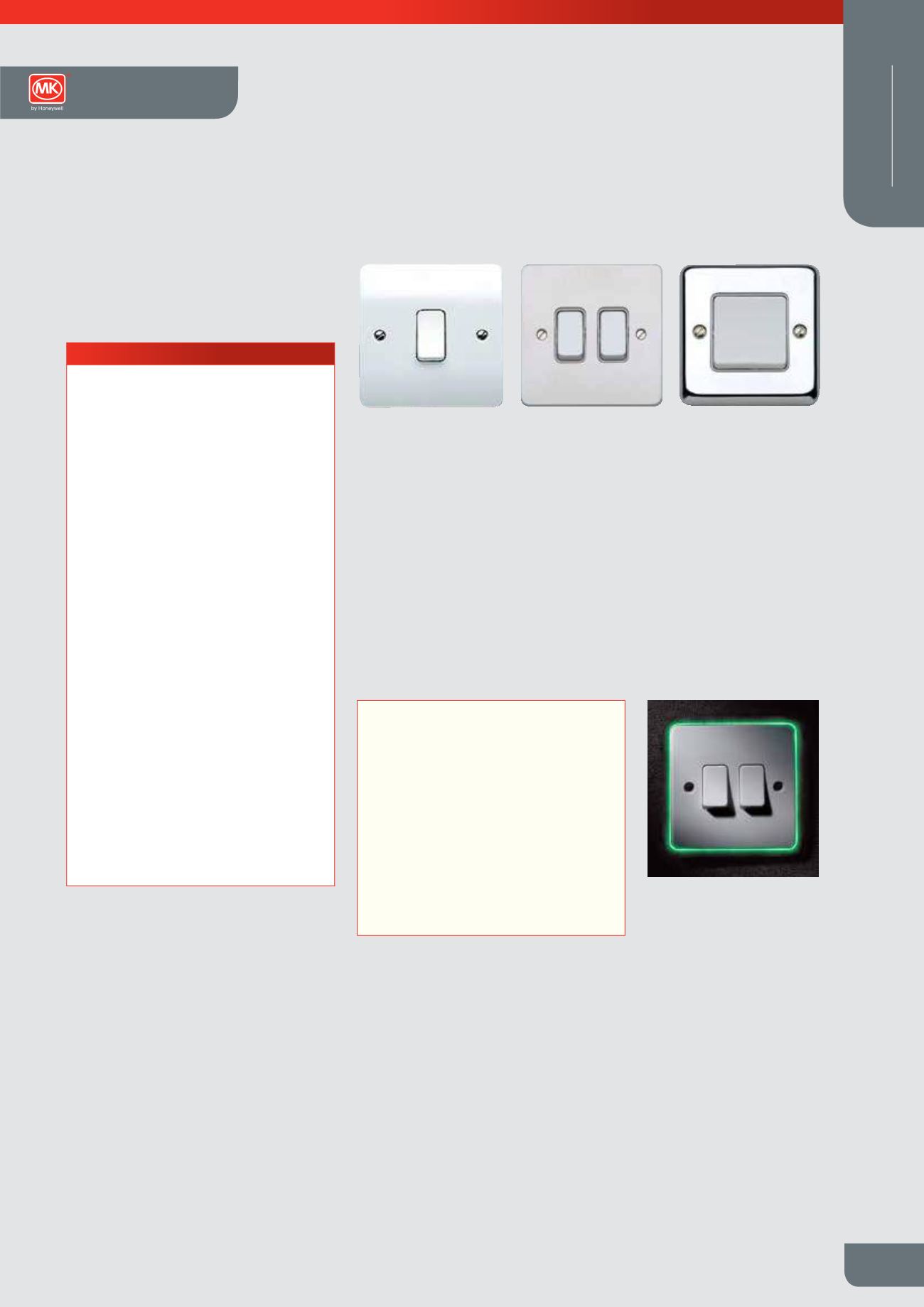

MK plateswitches are designed to blend in with the decor, whilst complementing
a wide range of other MK wiring devices. They are designed for easy installation
in plasterdepth boxes and are suitable for controlling lighting circuits in domestic,
commercial and industrial applications.
Neon locator
A textured, polycarbonate moulding allowing the glow of the neon to be seen
at almost any angle. Designed to complement the Logic Plus 1, 2, or 3 gang
plateswitches.
It is easy to install in existing locations. For 3 gang applications using a 25mm deep
box simplifies wiring.
Plateswitches
Standards and approvals
All MK plateswitches comply with
BS EN 60669-1:1999.
TECHNICAL SPECIFICATION
ELECTRICAL
VOLTAGE RATING
250V a.c.
CURRENT RATING
10A – no derating when used on fluorescent
or inductive loads
20A – no derating when used on fluorescent
or inductive loads
Push / Retractive switch types are not intended for
fluorescent loads.
TERMINAL CAPACITY
4 x 1mm²
4 x 1.5mm²
3 x 2.5mm²
2 x 4mm²
1 x 6mm²
CONTACT GAP
3mm switch contact gap
PHYSICAL
AMBIENT OPERATING TEMPERATURE
-5°C to +40°C
IP RATING
IP2XD
MAX. INSTALLATION ALTITUDE
2000 metres
Operational testing (all plateswitches): tested to
100,000 operations for mechanical life tested to
40,000 operations at 10A rating tested to 10,000
operations at 20A rating.
FEATURES
l
Two way switches can be wired as one or two
way
l
Matching Grid switches available in 10 or
20A ratings
l
3mm switch contact gap
l
Positive switch action
l
Top access, backed out and captive terminal
screws
l
Neon locator available making switch easy to
find in darkened rooms (Logic Plus
TM
only)
