WIRING DEVICES
Technical Hotline
+44 (0)1268 563720
BOX TYPES
GANG FLUSH
FLUSH
(FOR EXTRA WIRING SPACE)
SURFACE
1 GANG
861ZIC
866ZIC
K2140WHI
2 GANG
862ZIC
886ZIC
K2142WHI
BOX TYPES
GANG FLUSH
SURFACE
1 GANG
861ZIC
K2140WHI
2 GANG
862ZIC
K2142WHI

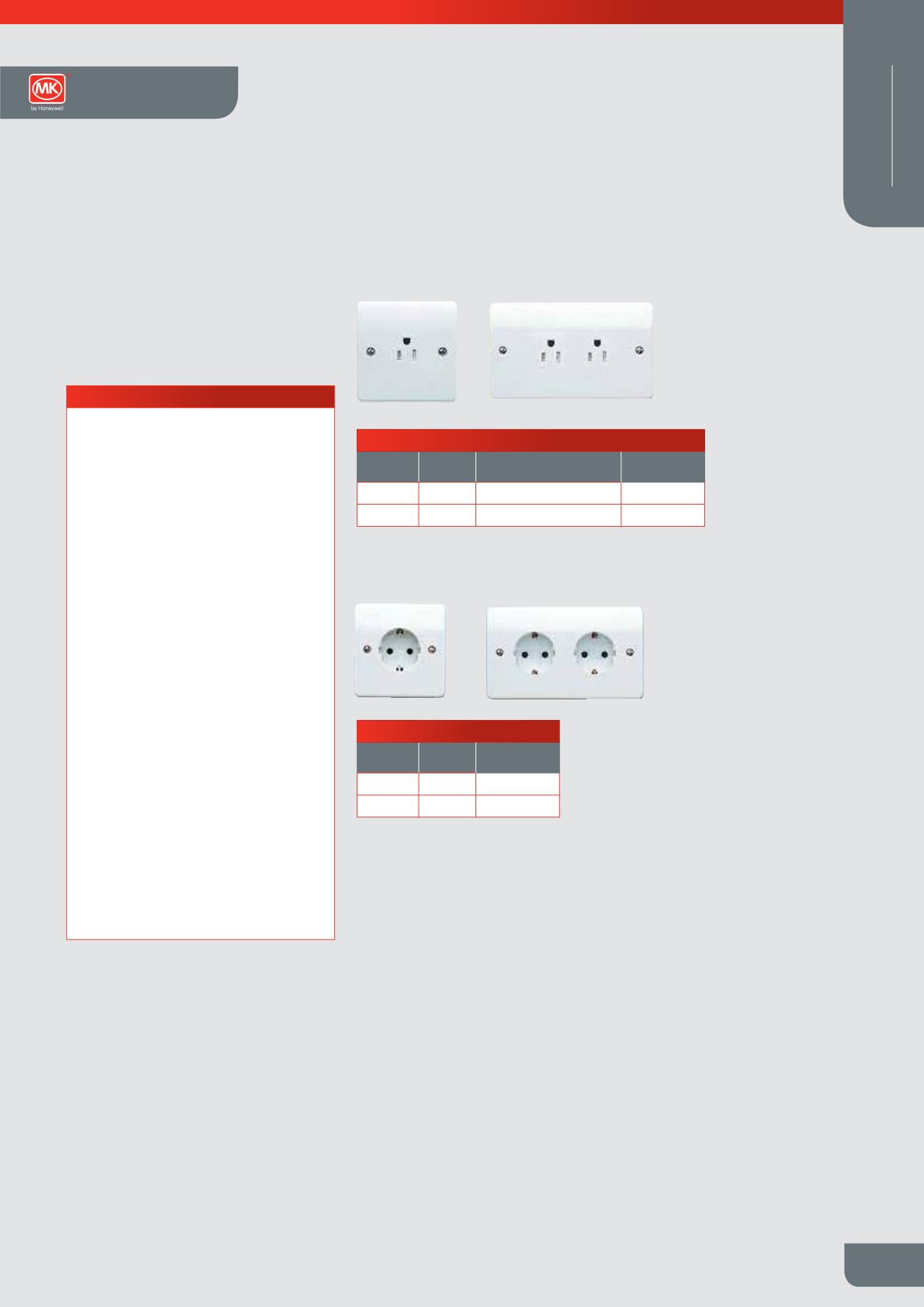

Non UK Socket Outlets
Standards and approvals
15A American sockets comply with
SASO 2004:2003
16A 2P+E German sockets comply with
IEC 60884-1:2006
TECHNICAL SPECIFICATION
ELECTRICAL
15A AMERICAN
VOLTAGE RATING
127V a.c.
CURRENT RATING
15A
TERMINAL CAPACITY
Live, neutral & earth
3 x 2.5mm²
2 x 4mm²
1 x 6mm² (stranded)
MAX. INSTALLATION ALTITUDE
2000 metres
16A 2P+E GERMAN SOCKET
VOLTAGE RATING
250V a.c.
CURRENT RATING
16A
TERMINAL CAPACITY
Live, neutral & earth
4 x 1.5mm²
2 x 2.5mm²
1 x 4mm²
PHYSICAL
AMBIENT OPERATING TEMPERATURE
-5°C to +40°C
IP RATING
IP2XD
MAX. INSTALLATION ALTITUDE
2000 metres
15A AMERICAN (Logic Plus*)
16A 2P+E GERMAN (Logic Plus*)
Note: 16A 2P+E German Outlet: These products are NOT suitable for
25mm deep boxes.
*15A American Sockets and 16A 2P+E German Sockets are also
available in a modular format for MK decorative wiring device ranges.
