WIRING DEVICES
Technical Hotline
+44 (0)1268 563720

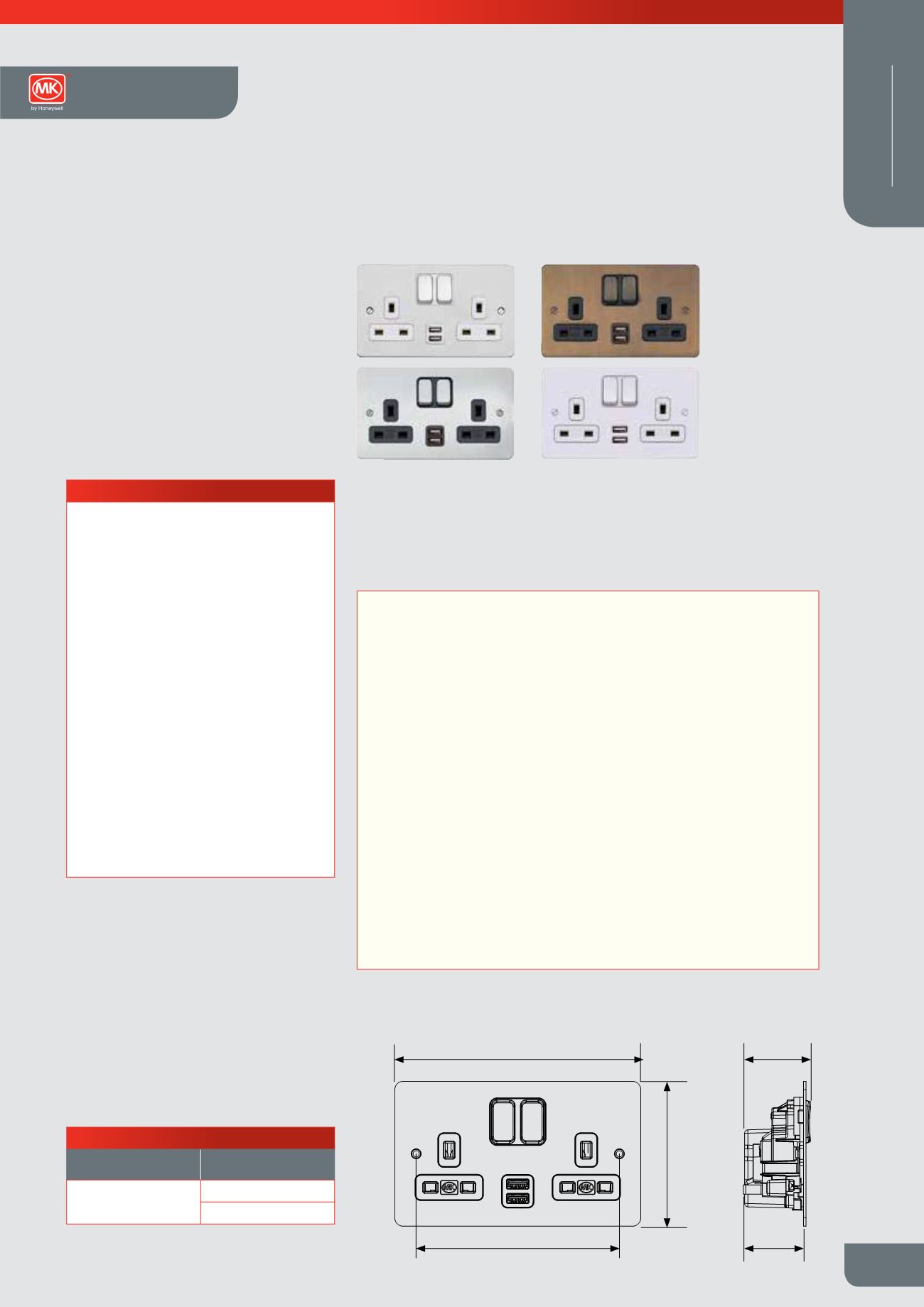

2 Gang Switchsocket Outlet with Integrated
Dual USB Charging Capability
Description
A range of socket outlets designed for ease of installation and having all the
advantageous design features of the Edge
TM
range. Dual USB charging outlets offer
end users easy access to power for charging a variety of devices such as smart
phones, tablets and cameras.
Standards and approvals
Edge
TM
13A socket outlets and 2A USB charging
outlets comply with BS 5733 and
IEC 61558-2-16.
EMC Compatibility:
IEC 61000-6-1
IEC 61000-6-3
Products are CE marked and meet the
requirements of the Low Voltage, EMC, RoHS
and WEEE directives.
TECHNICAL SPECIFICATION
13A SOCKET OUTLETS
ELECTRICAL
VOLTAGE RATING
220-240V
CURRENT RATING
13A
Combined total 2A drawn from USB outlets
STANDBY POWER
150mW
TERMINAL CAPACITY
Live, neutral & earth
3 x 2.5mm
2
3 x 4mm
2
2 x 6mm
2
(stranded)
PHYSICAL
AMBIENT OPERATING TEMPERATURE
–5°C to +40°C
IP RATING
IP2XD
MAX. INSTALLATION ALTITUDE
2000 metres
Installation
Edge
TM
socket outlets can be wall or bench
mounted.
Do not mount or use as a trailing socket or
where they may be subject to excessive
moisture or damp.
Cable management
Edge
TM
socket outlets can be mounted in
a variety of MK trunking systems.
FEATURES
l
Matching metal rocker switches
l
3 pin operated safety shutter on 13A
socket outlets
l
USB 2.0 and 3.0 compatible
l
Can charge a device at up to a full 2A
l
If only one device is connected to a
USB outlet the total output current of
2A is available from either outlet
l
If two devices are connected to USB
outlets the the total rated current of 2A
is divided between the two outlets
l
Differing manufacturers devices can
be charged simultaneously via the two
USB outlets
l
If the total charging current exceeds
the rated level of 2A then the device will
enter a current limiting safety mode
l
Electronically protected against an
overload or short circuit on either USB
outlet
l
USB Outlets are designed to provide
optimum charging compatibility
across a wide range of devices
l
Printed terminal markings on grey rear
mouldings for clearer identification
l
Top access, angled terminals make
wiring easier and quicker
l
3mm minimum switch contact gap
l
Double pole switching
l
Additional electrical safety from
neutral ‘make first’, ‘break last’ feature
l
Switch contacts with silver contacts
on both surfaces for good continuity
l
Backed out and captive terminal
screws
l
Dual earthed
BOX TYPES WITHOUT PATRESS
GANG
FLUSH
2 GANG
DEPTH 47MM
878 ZIC
Dimensions (mm)
Wiring Devices Technical
– Edge™
146
86
40
35.7
120.6
