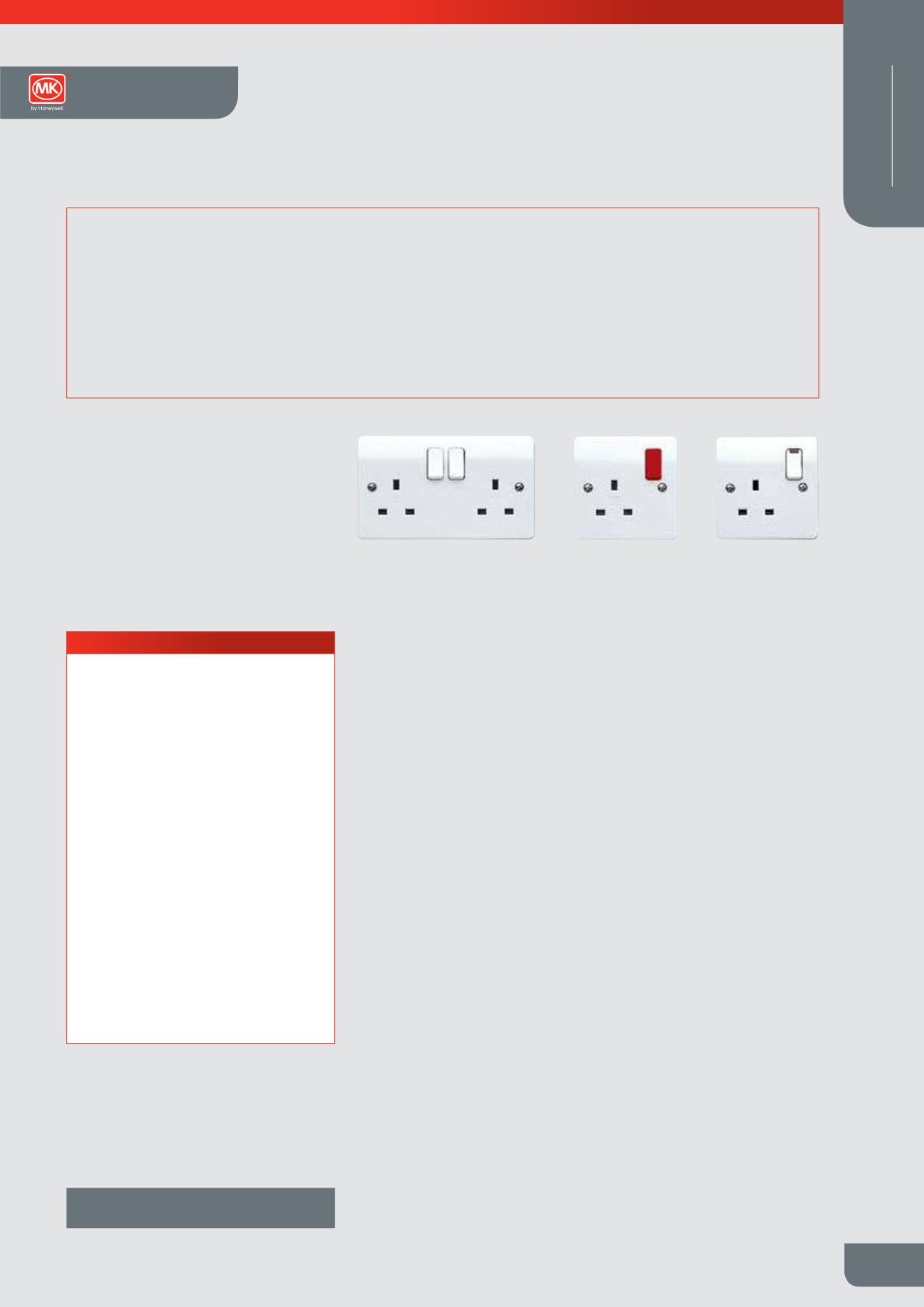

WIRING DEVICES
Technical Hotline
+44 (0)1268 563720
Description
A range of socket outlets designed for ease of installation and having all the
advantageous design features of the MK range of wiring devices. The 2 gang
sockets with outboard rockers (available in Logic Plus and Albany Plus) are of
particular value for use by the infirm and partially sighted whilst the same feature in
Metalclad Plus is ideal for use with gloved hands.
Non-standard clean earth sockets are for use on installations where restricted
access is required and will only accept a 647WHI 13A non-standard plug with
T-shaped earth pin. The sockets have two independent earth terminals so that they
can also be used for ‘clean earth’ installations. The K2746CE and K2947CE also
have two independent earth terminals for ‘clean earth’ installations.
A variety of sockets (see Technical Specification) are fitted with two earth terminals
on a common busbar to provide a double earth facility for use when installations
require a high integrity protective connection as specified within the latest edition of
BS 7671 which should be referred to for guidance.
The products can be quickly installed as replacement for existing 13A sockets or in
a new installation.
Fuse carriers
(Logic Plus 3 gang switchsocket only)
The fuse carrier is opened by a fast-acting, screwdriver-operated, worm-drive screw
for ease of replacement.
For a full range of corresponding products,
see pages 32-188 in the product selector.
Standards and approvals
13A socket outlets comply with
BS 1363 Part 2:1995.
Replacement fuses to the 3 gang switchsocket
outlets (Logic Plus only) comply with
BS 1362:1973.
TECHNICAL SPECIFICATION
ELECTRICAL
VOLTAGE RATING
250V a.c.
CURRENT RATING
13A
(3 Gang Switchsocket 13A total)
TERMINAL CAPACITY
Live, neutral & earth
3 x 2.5mm²
3 x 4mm²
2 x 6mm² (standard)
(Dual earth terminals on list Nos. K781, K2657,
K2737, K2746, K2757, all standard Edge and Aspect
sockets, K733, K2958, K2458, K2947, K2947D6,
K850, K2977, K2477, K3045, K3077, K2945,
K2945D6 and K5357)
PHYSICAL
AMBIENT OPERATING TEMPERATURE
–5°C to +40°C
IP RATING
IP2XD
MAX. INSTALLATION ALTITUDE
2000 metres
13A Socket Outlets
Installation general information
Socket outlets, switches and other MK wiring accessories can be wall or bench mounted. Do not use a trailing lead for sockets and
connection units or mount any devices where they may be subject to excessive moisture or dampness.
Cable management
Socket outlets, switches and other MK wiring accessories can be mounted in a variety of MK trunking systems.
