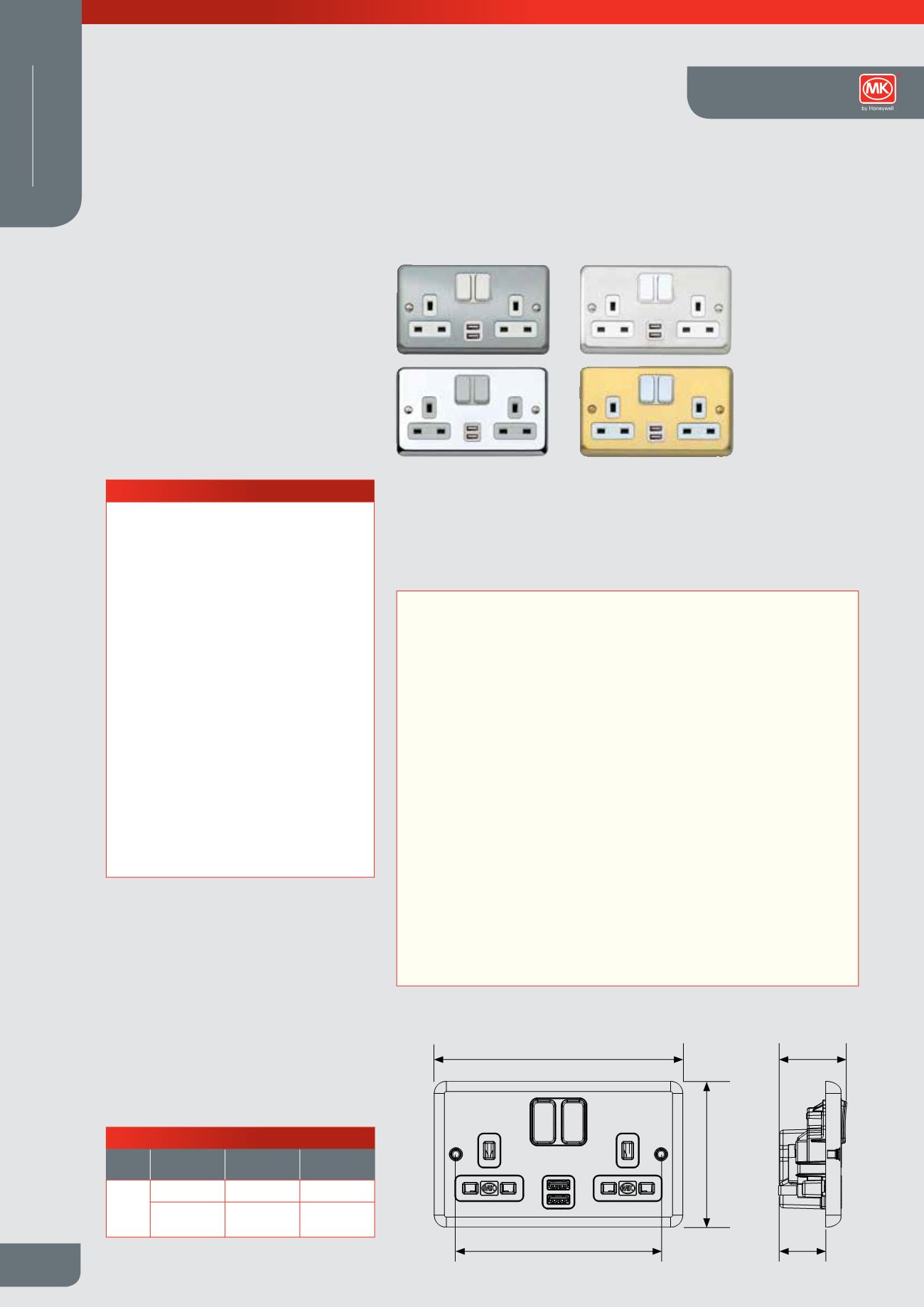

WIRING DEVICES2 Gang Switchsocket Outlet with Integrated
Dual USB Charging Capability
Description
A range of socket outlets designed for ease of installation and having all the
advantageous design features of the Albany Plus™ range. Dual USB charging
outlets offer end users easy access to power for charging a variety of devices such
as smart phones, tablets and cameras.
Standards and approvals
Albany Plus™ 13A socket outlets and 2A USB
charging outlets comply with BS 5733 and
IEC 61558-2-16.
EMC Compatibility:
IEC 61000-6-1
IEC 61000-6-3
Products are CE marked and meet the
requirements of the Low Voltage, EMC, RoHS
and WEEE directives.
TECHNICAL SPECIFICATION
13A SOCKET OUTLETS
ELECTRICAL
VOLTAGE RATING
220-240V
CURRENT RATING
13A
Combined total 2A drawn from USB outlets
STANDBY POWER
150mW
TERMINAL CAPACITY
Live, neutral & earth
3 x 2.5mm2
3 x 4mm 2
2 x 6mm 2 (stranded)
PHYSICAL
AMBIENT OPERATING TEMPERATURE
–5°C to +40°C
IP RATING
IP2XD
MAX. INSTALLATION ALTITUDE
2000 metres
Installation
Albany Plus™ socket outlets can be wall or
bench mounted.
Do not mount or use as a trailing socket or
where they may be subject to excessive
moisture or damp.
Cable management
Albany Plus™ socket outlets can be mounted in
a variety of MK trunking systems.
BOX TYPES WITHOUT PATRESS
GANG FLUSH SURFACE
INSULATED
SURFACE
METAL
2 GANG
DEPTH 35MM DEPTH 40MM DEPTH 41MM
886 ZIC K2172 WHI K2212ALM /
K2214ALM
FEATURES
l Moulded ‘on’ indicator flash on
switches will not rub off – totally safe
l 3 pin operated safety shutter on 13A
socket outlets
l USB 2.0 and 3.0 compatible
l Can charge a device at up to a full 2A
l If only one device is connected to a
USB outlet the total output current of
2A is available from either outlet
l If two devices are connected to USB
outlets the the total rated current of 2A
is divided between the two outlets
l Differing manufacturers devices can
be charged simultaneously via the two
USB outlets
l If the total charging current exceeds
the rated level of 2A then the device will
enter a current limiting safety mode
l Electronically protected against an
overload or short circuit on either USB
outlet
l USB outlets are designed to provide
optimum charging compatibility
across a wide range of devices
l Printed terminal markings on grey rear
mouldings for clearer identification
l Top access, angled terminals make
wiring easier and quicker
l 3mm minimum switch contact gap
l Double pole switching
l Additional electrical safety from
neutral ‘make first’, ‘break last’ feature
l Switch contacts with silver contacts
on both surfaces for good continuity
l Backed out and captive terminal
screws
l Dual earthed
Dimensions (mm)
Wiring Devices Technical
– Albany Plus™
146.1
85.8
40
27.7 120.6
