A range of socket outlets designed for ease of installation and having all the
advantageous design features of the Metalclad Plus
™
range. Dual USB charging
outlets offer end users easy access to power for charging a variety of devices such
as smart phones, tablets and cameras.
Standards and approvals
Metalclad Plus
™
13A socket outlets and 2A USB
charging outlets comply with BS 5733 and
IEC 61558-2-16.
EMC Compatibility:
IEC 61000-6-1
IEC 61000-6-3
Products are CE marked and meet the
requirements of the Low Voltage, EMC, RoHS
and WEEE directives.
TECHNICAL SPECIFICATION
13A SOCKET OUTLETS
ELECTRICAL
VOLTAGE RATING
220-240V
CURRENT RATING
13A
Combined total 2A drawn from USB outlets
STANDBY POWER
150mW
TERMINAL CAPACITY
Live, neutral & earth
3 x 2.5mm
2
3 x 4mm
2
2 x 6mm
2
(stranded)
PHYSICAL
AMBIENT OPERATING TEMPERATURE
–5°C to +40°C
IP RATING
IP2XD
MAX. INSTALLATION ALTITUDE
2000 metres
BOX TYPES WITHOUT PATRESS
GANG FLUSH
SURFACE
2 GANG
DEPTH
35MM
DEPTH 38MM
886 ZIC
K830 ALM (without knockouts)
K897 ALM and K897 WHI
(with 8 x 20mm knockouts)
FEATURES
l
Moulded ‘on’ indicator flash on
switches will not rub off – totally safe
l
3 pin operated safety shutter on 13A
socket outlets
l
USB 2.0 and 3.0 compatible
l
Can charge a device at up to a full 2A
l
If only one device is connected to a
USB outlet the total output current of
2A is available from either outlet
l
If two devices are connected to USB
outlets the the total rated current of 2A
is divided between the two outlets
l
Differing manufacturers devices can
be charged simultaneously via the two
USB outlets
l
If the total charging current exceeds
the rated level of 2A then the device will
enter a current limiting safety mode
l
Electronically protected against an
overload or short circuit on either USB
outlet
l
USB outlets are designed to provide
optimum charging compatibility
across a wide range of devices
l
Printed terminal markings on grey rear
mouldings for clearer identification
l
Top access, angled terminals make
wiring easier and quicker
l
3mm minimum switch contact gap
l
Double pole switching
l
Additional electrical safety from
neutral ‘make first’, ‘break last’ feature
l
Switch contacts with silver contacts
on both surfaces for good continuity
l
Backed out and captive terminal
screws
l
Metallic powder paint finish is
corrosion and scratch resistant
l
Dual earthed
l
High impact resistance
Installation
Metalclad Plus
™
socket outlets can be wall or
bench mounted.
Do not mount or use as a trailing socket or
where they may be subject to excessive
moisture or damp.
Cable management
Metalclad Plus
™
socket outlets can be mounted
in a variety of MK trunking systems.
Dimensions (mm)

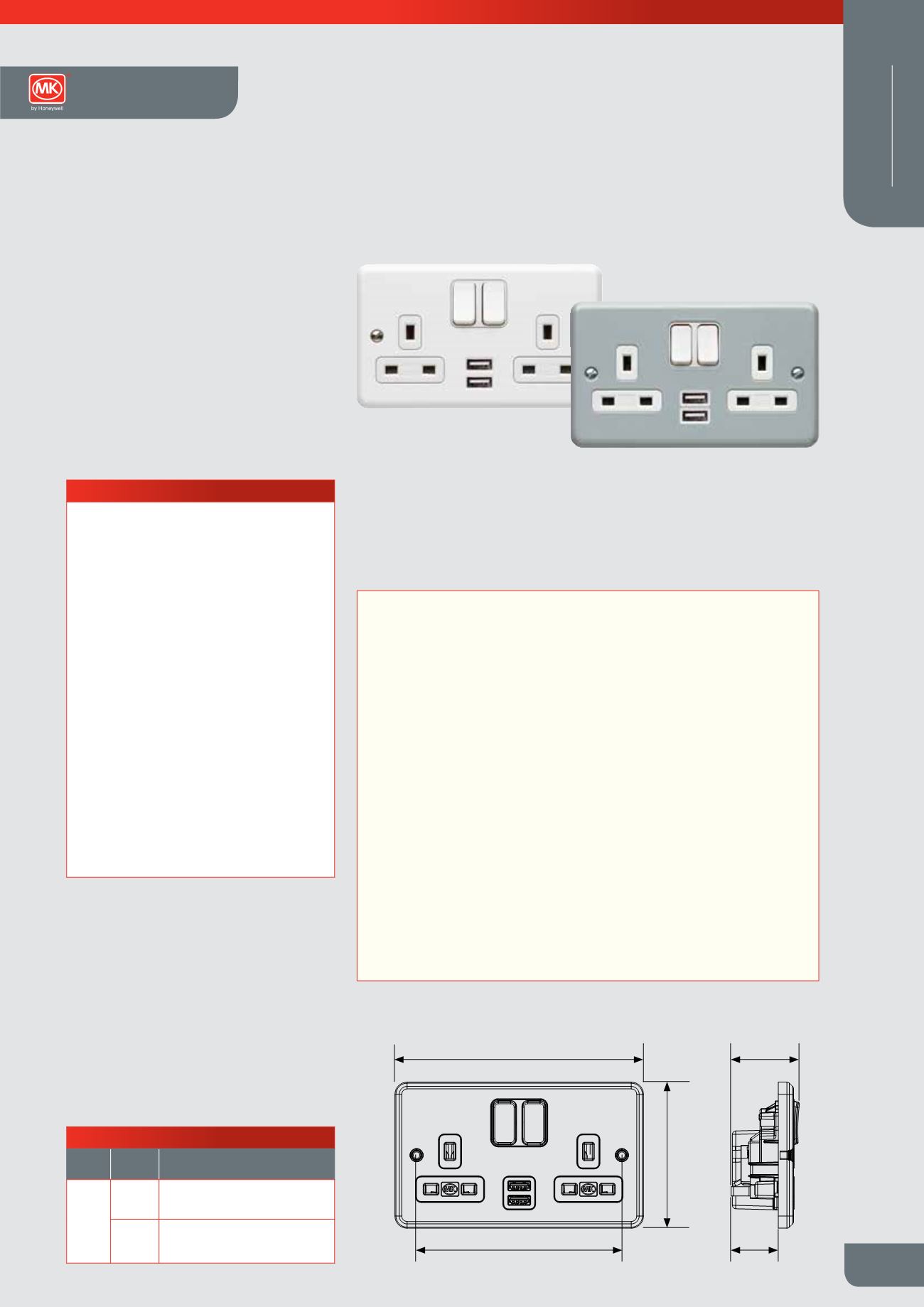

2 Gang Switchsocket Outlet with Integrated
Dual USB Charging Capability
Wiring Devices Technical
– Metalclad Plus™
146
85.8
40
27.7
120.6
