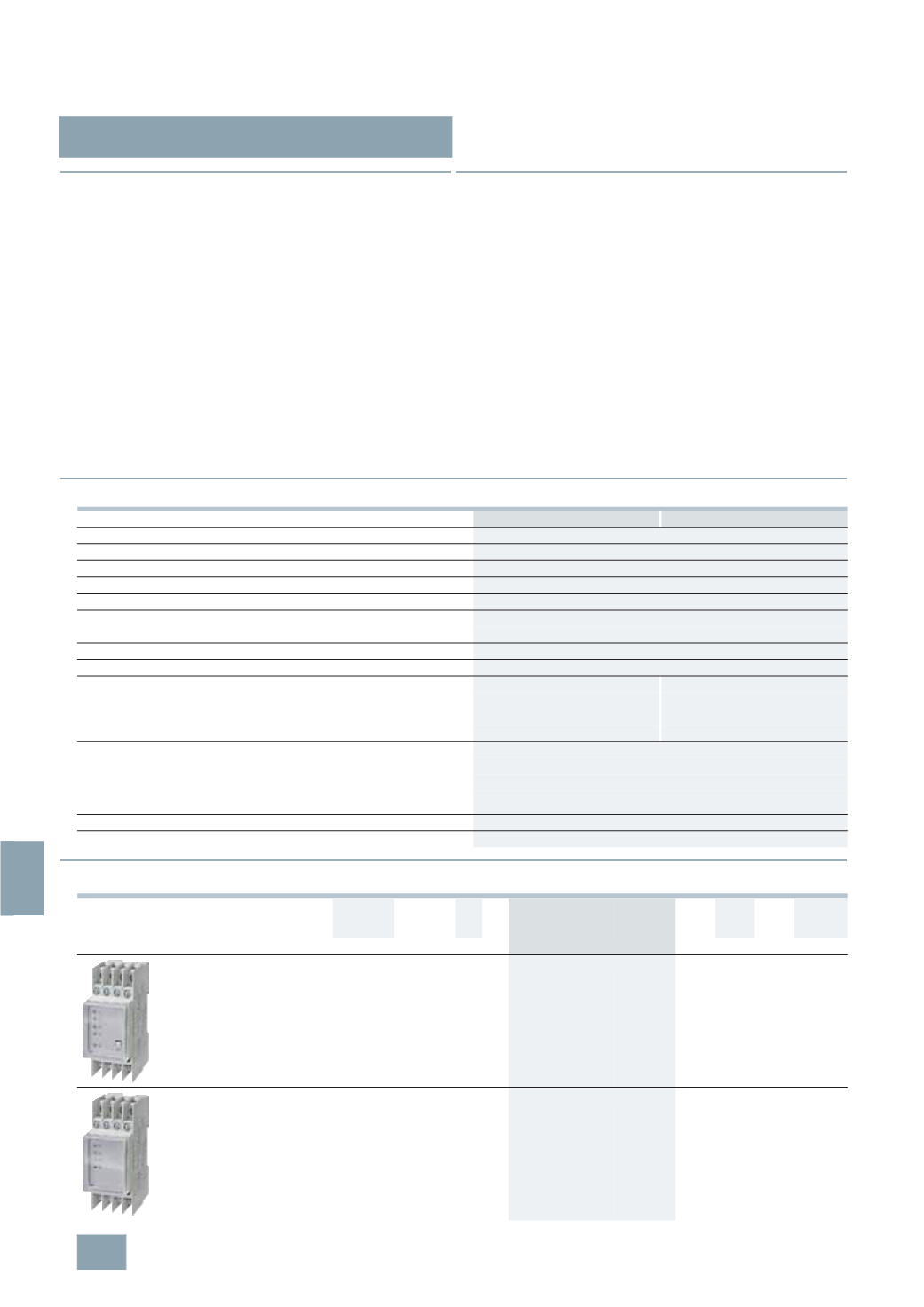

BETA Monitoring

Monitoring of Plants and Devices

5

TT3 46 fault signaling units

14/8

Siemens ET B1 · 10/2008

*

You can order this quantity or a multiple thereof.

14

Overview

Fault signaling units are used in small plants where the installation

of complex fault signaling systems would be too cost and labor-

intensive. In the event of a fault, they enable fast fault localization

of all monitoring devices and limit monitors from a central location.

This increases plant availability. With the correct sensor configu-

ration, they also provide the option of preventative maintenance.

• 4

fault signal inputs with LED

• 1

LED as centralized fault indicator

One unit each for centralized fault indication and acoustic sig-

naling

With acknowledgment for acoustic indicators

Open-/closed-circuit principle to the 4 inputs can be set via

jumpers X1 – X2

A maximum of 39 5TT3 461 expansion fault signaling units can

be connected to the 5TT3 460 centralized fault signaling unit

The maximum possible cable length between 5TT3 460

centralized fault signaling units and 5TT3 461 expansion fault

signaling units is approx. 100 m with a conductor cross-section

of 1.5 mm

2

.

Benefits

Ultra compact device designs that only require the smallest of

spaces in distribution boards

The modular design means that extra devices can be simply

added as your system expands.

Technical specifications

Selection and ordering data

5

TT3 460

5

TT3 461

Standards

IEC 60255; DIN VDE 0435-110, -303

Rated control voltage U

c

V AC 230

Operating range

× U

c

0.8 ... 1.1

Rated frequency f

n

Hz

50/60

Fault signaling inputs S1 ... S4

V AC 230

Signal voltage

to terminals S and H

V

7 ... 10

Noise pulse duration

ms

100

Acknowledgment pulse duration

ms

200

Contacts

Rated operational voltage U

e

V AC 230

--

Rated operational current

I

e

A

5

--

Minimum contact load

V; mA 10;100

--

Terminals

Terminals

±

screw (Pozidriv)

PZ 1

Conductor cross-sections

-

Rigid, max.

mm

2

2

× 2.5

-

Flexible, with end sleeve, min.

mm

2

1

× 0.5

Permissible ambient temperature

°C -20 ... +60

Humidity class

Acc. to IEC 60068-2-30

F

U

e

I

e

U

c

MW DT Order No.

Price

per PU

PG PU PS*/

P. unit

Weight

per PU

approx.

V AC A AC V AC

Unit(s) Unit(s) kg

Centralized fault signaling units with transparent cap

230

5

230

2

B

5

TT3 460

027 1

1

0.130

Expansion fault signaling units with transparent cap

230

2

B

5

TT3 461

027 1

1

0.110

© Siemens AG 2008
