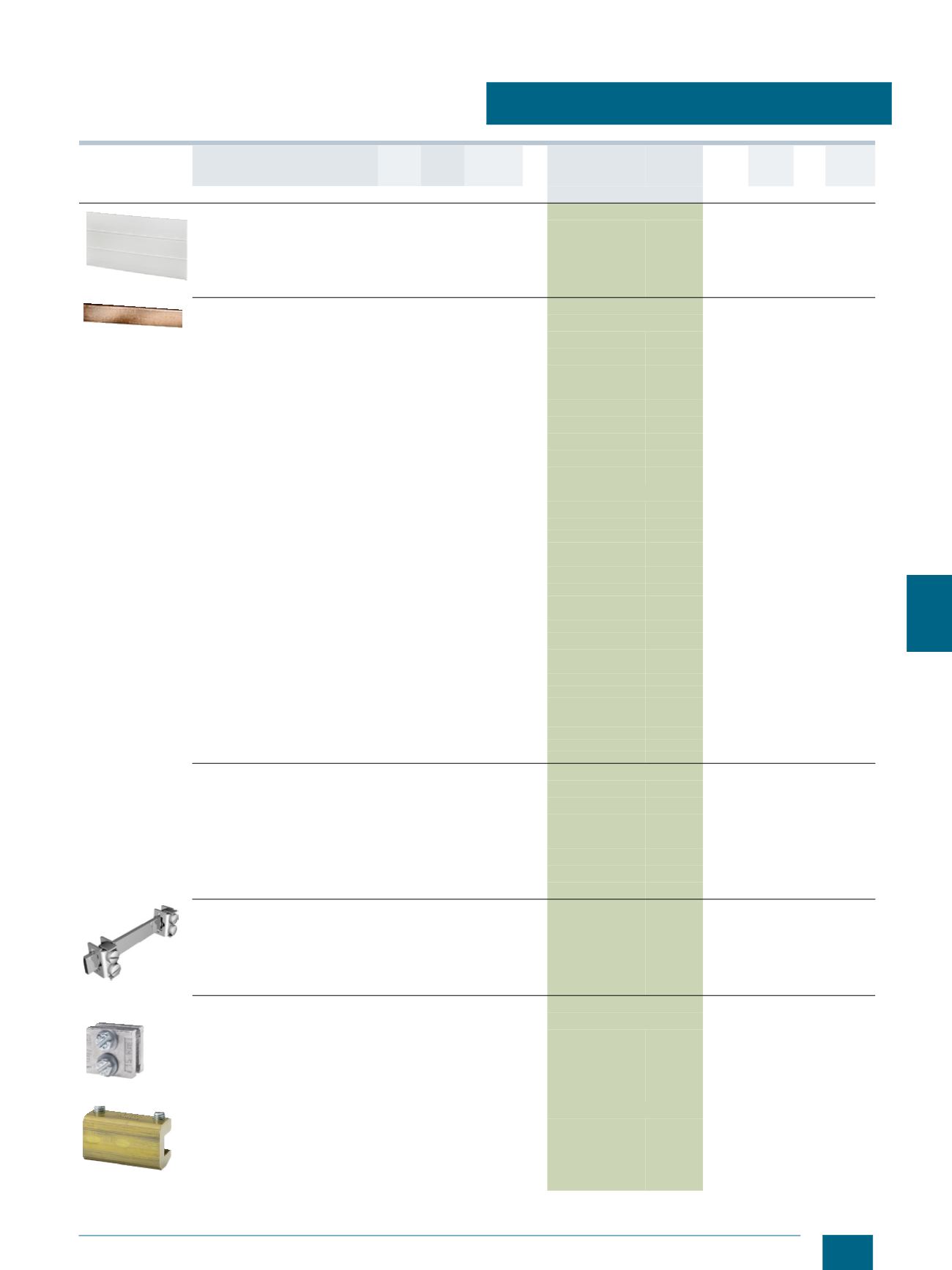

Busbar Systems
8US 60 mm Busbar Systems
Basic assemblies up to 630 A
10/13 Siemens LV 10 · 2014
* You can order this quantity or a multiple thereof.
Description Length Cross-
section
Standard DT Article No. Price
per PU
PU
(UNIT,
SET, M)
PS*/
P. unit
PG Weight
per PU
approx.
mm mm2 kg
8US1922-2UA01
Base plates
For 3-pole system,
width 230 mm
1100 -- UL 508 8US1922-2UA01 1 2 units 143 0.600
$ Flat copper profiles (flat profile, bare)
Flat copper profiles for universal applications
• 12 x 5 mm, current intensity 200 A 2400 60 EN 12167 8WC5123 1 1 unit 143 1.100
• 15 x 5 mm, current intensity 250 A 2400 75 EN 12167 8WC5121 1 1 unit 143 1.550
• 20 x 5 mm, current intensity 320 A 2400 100 EN 12167 8WC5126 1 1 unit 143 1.780
• 20 x 5 mm, current intensity 400 A 1100 125 EN 12167 8WC5031-1AA00 1 1 unit 143 2.240
• 25 x 5 mm, current intensity 400 A 2400 125 EN 12167 8WC5131 1 1 unit 143 2.240
• 30 x 5 mm, current intensity 447 A 1100 150 EN 12167 8WC5033-1AA00 1 1 unit 143 2.680
• 30 x 5 mm, current intensity 447 A 2400 150 EN 12167 8WC5133 1 1 unit 143 2.680
• 20 x 10 mm, current intensity 520 A 2400 200 EN 12167 8WC5128 1 1 unit 143 3.200
• 30 x 10 mm, current intensity 630 A 2400 300 EN 12167 8WC5134 1 1 unit 143 5.360
Flat copper profile for ALPHA distribution boards
• 12 x 5 mm, current intensity 250 A 250 60 EN 12167 8GK9731-0KK10 1 5 units 039 0.100
500 60 EN 12167 8GK9731-0KK20 1 5 units 039 0.261
750 60 EN 12167 8GK9731-0KK30 1 5 units 039 0.500
1000 60 EN 12167 8GK9731-0KK40 1 5 units 039 0.531
1250 60 EN 12167 8GK9731-0KK50 1 5 units 039 0.830
• 20 x 5 mm, current intensity 320 A 250 100 EN 12167 8GK9733-0KK10 1 5 units 039 0.290
500 60 EN 12167 8GK9733-0KK20 1 5 units 039 0.412
750 60 EN 12167 8GK9733-0KK30 1 5 units 039 0.850
1000 60 EN 12167 8GK9733-0KK40 1 5 units 039 1.120
1250 60 EN 12167 8GK9733-0KK50 1 5 units 039 1.470
• 30 x 5 mm, current intensity 447 A 250 150 EN 12167 8GK9735-0KK10 1 5 units 039 0.325
500 150 EN 12167 8GK9735-0KK20 1 5 units 039 0.750
750 150 EN 12167 8GK9735-0KK30 1 5 units 039 1.460
1000 150 EN 12167 8GK9735-0KK40 1 5 units 039 2.170
1250 150 EN 12167 8GK9735-0KK50 1 5 units 039 2.880
• 30 x 10 mm, current intensity 630 A 250 300 EN 12167 8GK9736-0KK10 1 5 units 039 0.750
500 300 EN 12167 8GK9736-0KK20 1 5 units 039 1.310
750 300 EN 12167 8GK9736-0KK30 1 5 units 039 1.972
1000 300 EN 12167 8GK9736-0KK40 1 5 units 039 3.400
1250 300 EN 12167 8GK9736-0KK50 1 5 units 039 3.450
$ Flat copper profiles, tinned
• 12 x 5 mm, current intensity 200 A 2000 60 EN 12167 8WC5051 1 1 unit 143 1.100
• 15 x 5 mm, current intensity 250 A 2000 75 EN 12167 8WC5052 1 1 unit 143 1.550
• 20 x 5 mm, current intensity 320 A 2000 100 EN 12167 8WC5053 1 1 unit 143 1.780
• 25 x 5 mm, current intensity 400 A 2000 125 EN 12167 8WC5054 1 1 unit 143 2.240
• 30 x 5 mm, current intensity 447 A 2000 150 EN 12167 8WC5055 1 1 unit 143 2.680
• 20 x 10 mm, current intensity 520 A 2000 200 EN 12167 8WC5063 1 1 unit 143 3.200
• 30 x 10 mm, current intensity 630 A 2000 300 EN 12167 8WC5065 1 1 unit 143 5.360
8JK3 20
Extension terminals
For busbars 12 x 5 mm, tightening
torque 6.0 Nm
(busbar not included,
1 set = 2 units)
-- -- -- 8JK3201 1 10 sets 046 0.020
Busbar connection pieces for bars
8US1921-2BE00
For flat profiles (max. 630 A)
20 mm  5 mm,
20 mm  10 mm,
25 mm  5 mm,
25 mm  10 mm,
30 mm  5 mm,
30 mm  10 mm
40 -- -- 8US1921-2BE00 1 6 units 143 0.275
8US1921-2BF00
For flat profiles (max. 630 A)
12 mm  5 mm,
12 mm  10 mm,
15 mm  5 mm,
15 mm  10 mm,
20 mm  5 mm,
20 mm  10 mm
55 -- -- 8US1921-2BF00 1 12 units 143 0.216
© Siemens AG 2014
