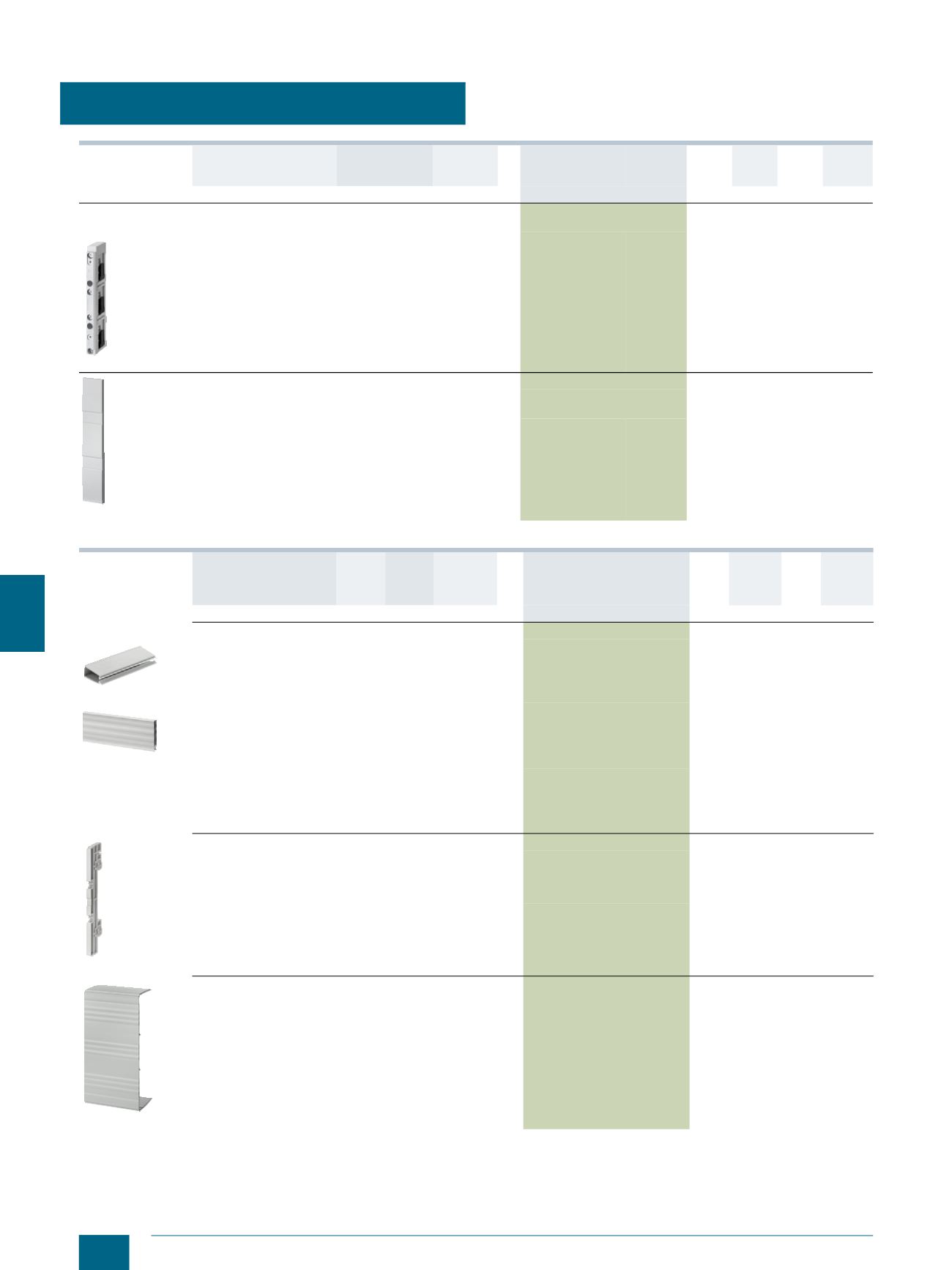

Busbar Systems
8US 60 mm Busbar Systems
Basic assemblies up to 630 A
10/12 Siemens LV 10 · 2014
10
* You can order this quantity or a multiple thereof.
Covers, supports for blanking covers, flat copper profiles and busbar connection parts
1) Only with base plate 8US1922-2UA01
Description Connections Standard DT Article No. Price
per PU
PU
(UNIT,
SET, M)
PS*/
P. unit
PG Weight
per PU
approx.
kg
End and intermediate holders for flat copper profiles
5 mm x 20 mm, 10 mm x 20 mm, 10 mm x 30 mm
8US1923-3UA01
3-pole, with inner fixing L1–L3 UL 5081) 8US1923-3UA01 1 10 units 143 0.126
8US1922-1AC00
& End covers
For covering free busbar
ends
• For 8US1923-2AA01,
3AA01 and -3UA01
L1–L3 UL 508 8US1922-1AC00 1 10 units 143 0.020
Description Length Width Standard DT Article No. Price
per PU
PU
(UNIT,
SET,
M)
PS*/
P. unit
PG Weight
per PU
approx.
mm mm kg
( Cover profiles for busbars
8US1922-2CA00
12 mm x 5 mm 1000 8US1922-2CA00 1 10 units 143 0.066
8US1922-2AA00
15 mm x 5 mm,
20 mm x 5 mm,
25 mm x 5 mm,
30 mm x 5 mm
1000 UL 508 8US1922-2AA00 1 10 units 143 0.153
12 mm x 10 mm,
15 mm x 10 mm,
20 mm x 10 mm,
25 mm x 10 mm,
30 mm x 10 mm
1000 UL 508 8US1922-2BA00 1 10 units 143 0.152
8US1922-2EA0.
) Supports for blanking covers
Mounting on busbar,
32 mm depth
(2 units per section of
blanking cover)
UL 508 8US1922-2EA00 1 4 units 143 0.035
Mounting on busbar,
107 mm depth
(2 units per section of
blanking cover)
UL 508 8US1922-2EA01 1 8 units 143 0.081
8US1922-2EB00
* Blanking covers
Mounting on
8US1922-2EA.. support
for blanking covers
Height 195 mm,
Depth 63 mm,
Length 700 mm
UL 508 8US1922-2EB00 1 2 units 143 0.700
