Busbar Systems
8US 60 mm Busbar Systems
Basic assemblies up to 1 600 A
10/14
Siemens LV 10 · 2014
* You can order this quantity or a multiple thereof.
10
■
Overview

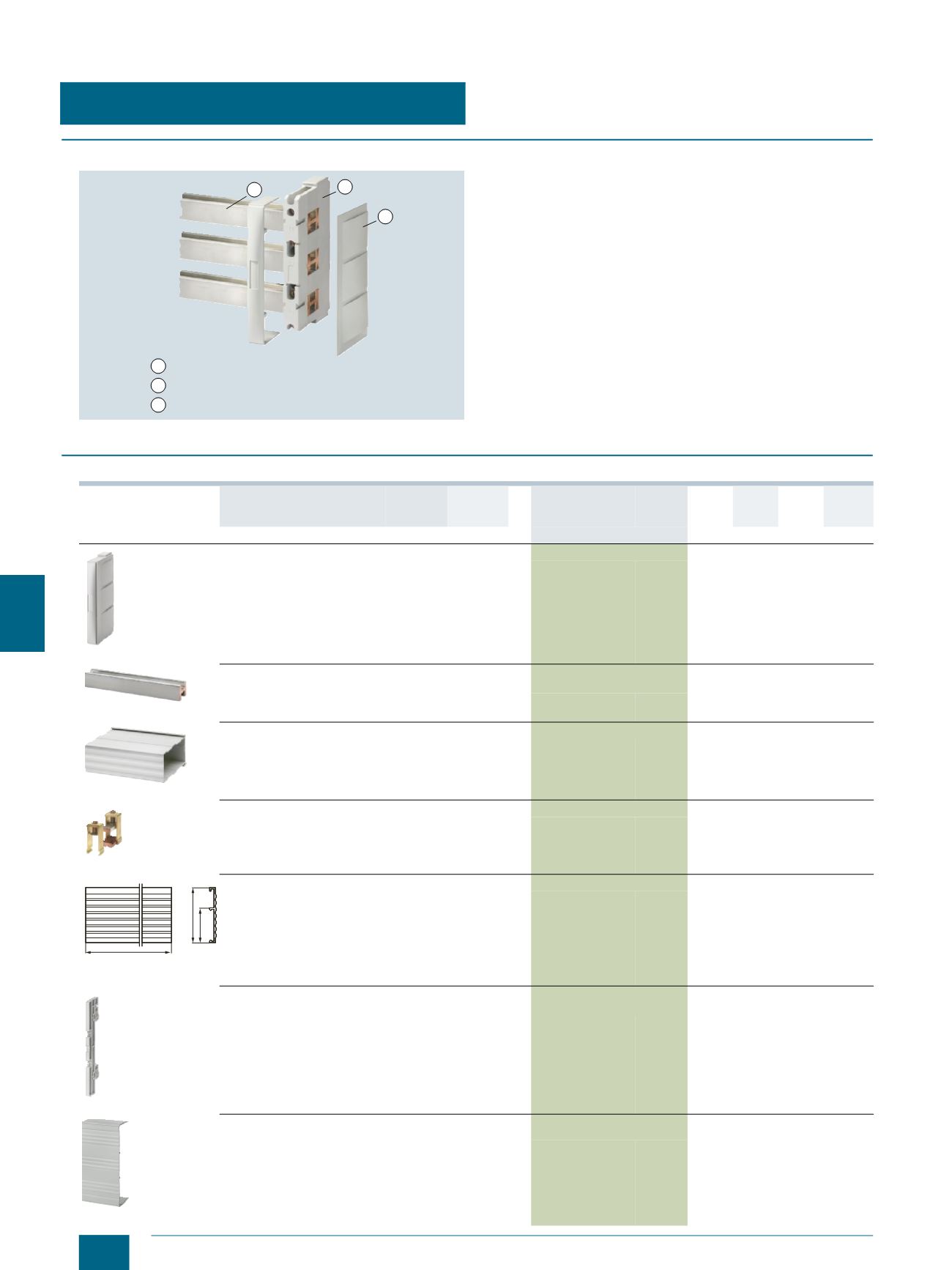

60 mm busbar system: Basic assembly up to 1 600 A
■
Selection and ordering data
End cover
Busbar support
Flat copper profile
NSE0_02113
Description
Standard DT Article No.
Price
per PU
PU
(UNIT,
SET, M)
PS*/
P. unit
PG Weight
per PU
approx.
kg
8US1943-3AA00
Busbar supports
3-pole,
for TT special profiles
End and intermediate holder
with finger-safe busbar cover
(1 pack = 2 busbar supports +
finger-safe end covers)
L1–L3
UL 508
8US1943-3AA00
1 1 unit
143 1.140
8US1948-2AA00
Flat copper profiles
(approx. 2.4 m long, tinned)
TT special profile up to 1 600 A,
cross-section 720 mm
2
8US1948-2AA00
1 1 unit
143 15.600
8US1948-2AA00
Cover profiles
For flat copper profiles, length 1 000 mm
8US1922-2DA00
1 5 units 143 0.400
8US1941-2BF00
Busbar connection pieces
For special profiles/TT profiles up to 1 600 A
8US1941-2BF00
1 3 units 143 1.116
8US1922-1JA00
Partitions, closed
76 mm wide, 2 400 mm long
For additional lateral touch protection
at the top/bottom
8US1922-1JA00
1 1 unit
143 0.500
8US1922-2EA0.
Supports
for blanking covers
Mounting on busbar,
32 mm depth
(2 units per section of blanking cover)
UL 508
8US1922-2EA00
1 4 units 143 0.035
Mounting on busbar,
107 mm depth
(2 units per section of blanking cover)
UL 508
8US1922-2EA01
1 8 units 143 0.081
8US1922-2EB00
Blanking covers
Mounting on 8US1922-2EA..
support for blanking covers
Height 195 mm,
Depth 63 mm,
Length 700 mm
UL 508
8US1922-2EB00
1 2 units 143 0.700
48
76
2400
NSB0_91362b
