Eaton Industrial Switchgear - XEnergy XPole Energy distribution, switching and protection

29 / 543

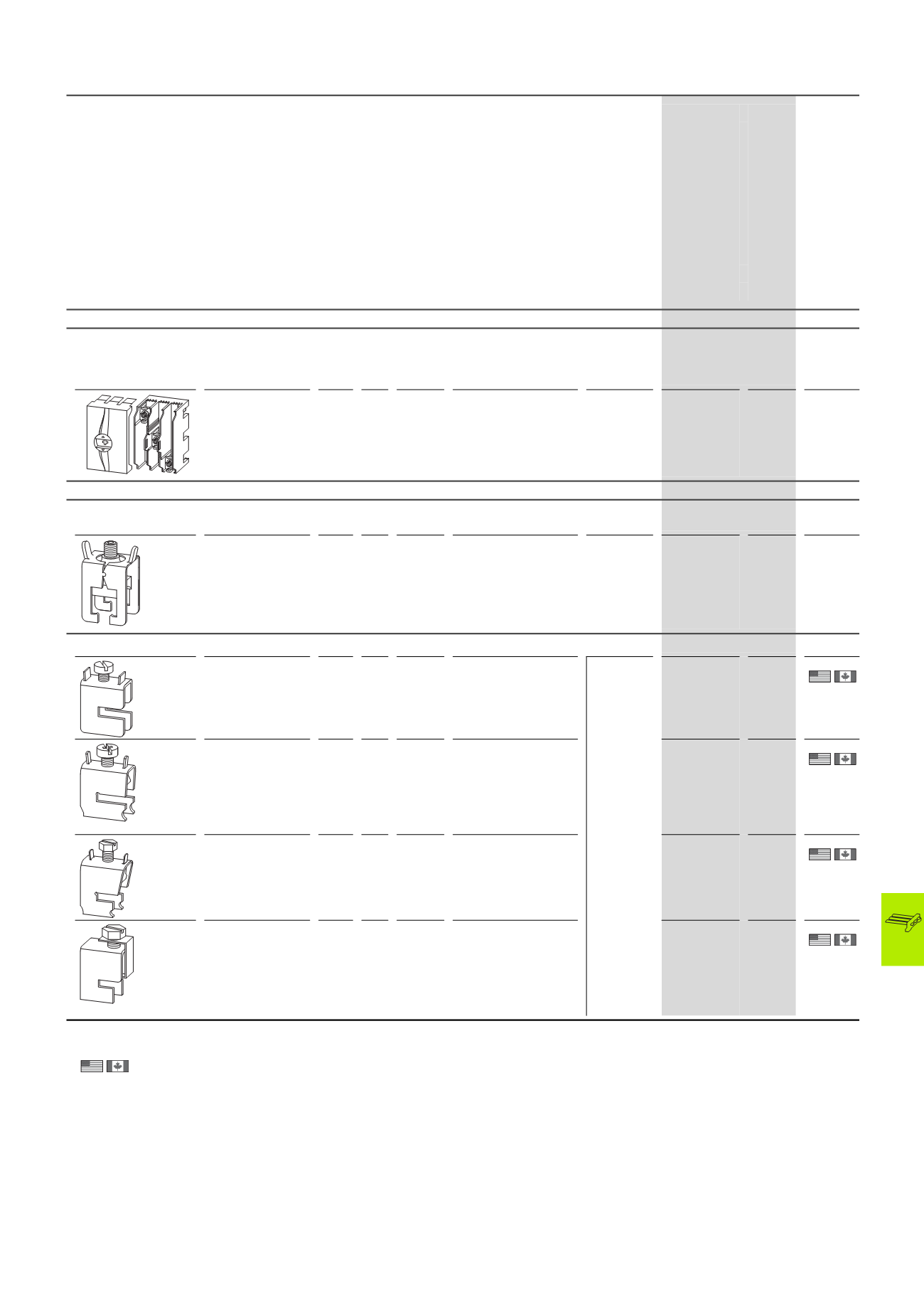

Compact System
Terminals and connectors
2010 CA08103002Z-EN
SASY 16/25
SASYTerminalsandconnectors
Terminal area W x H Width Poles Rated
operating
current
Terminal capacity
⊙ Round conductor, solid
 Round conductor,
flexible, with correctly
crimped ferrule
 Round conductor,
stranded
 Sectoral conductor, solid
 Sectoral conductor,,
stranded
Copper strip
▃Copper bar
For use with Part no.
Article no.
Price
See
price list
Std. pack
Ie
mm mm A mm
Terminal plates
The terminal can be removed for the connection
of uncut conductors.
Contacting of cable with busbar via cable
bedding.
– 90 3 480 35 - 150 mm2
AWG 2 - MCM 300.


10 x 20 x 1
12 x 5/10
15 x 5/10
20 x 5/10
BBA-TP3/100-C
138373
1 off
Expansion terminals
Contacting of cable with busbar via cable
bedding.
– 38 – 480 35 - 150 mm2
AWG2/0 - MCM 300.
 Directly clamped


12 x 5/10
20 x 5/10
AKS150
138374
6 off
Universal conductor Connection terminals
7.5 x 7.5 11.5 – 180 1.5 - 16 mm2
AWG 14 - AWG 6.
 Directly clamped
⊙

8 x 6 x 0.5
All 5 mm
thick flat
busbars
AKU16/5
107187
100 off
10.5 x 11 15.5 – 270 4 - 35 mm2
AWG 10 - AWG 2.
 Directly clamped
⊙

3 x 9 x 0.8
or 6 x 9 x 0.8
AKU35/5
107188
50 off
14 x 14 20.5 – 400 16 - 70 mm2
AWG 4 - AWG 2/0.
 Directly clamped

2 x (3 x 9 x 0.8)
or 6 x 9 x 0.8
AKU70/5
107189
25 off
17 x 15 23.5 – 440 16 - 120 mm2
AWG 4 - MCM 250.
 Directly clamped

4 x 16 x 0.8
or 6 x 16 x 0.8
or 10 x 16 x 0.8
AKU120/5
107190
25 off
Information relevant for export to North America
Product Standards UL508A; CSA-C22.2 No. 14; IEC 60439-1; CE marking
UL File No. E307559
UL CCN NMTR2, NMTR8
CSA File No. 236217
CSA Class No. 3211-37
NA Certification UL Recognized, CSA certified
Conditions of Acceptability Refer to approbation report
Suitable for Feeder circuits
Max. Voltage Rating 600 V AC
BBA..., AKU..., AKS... HPL16025EN
