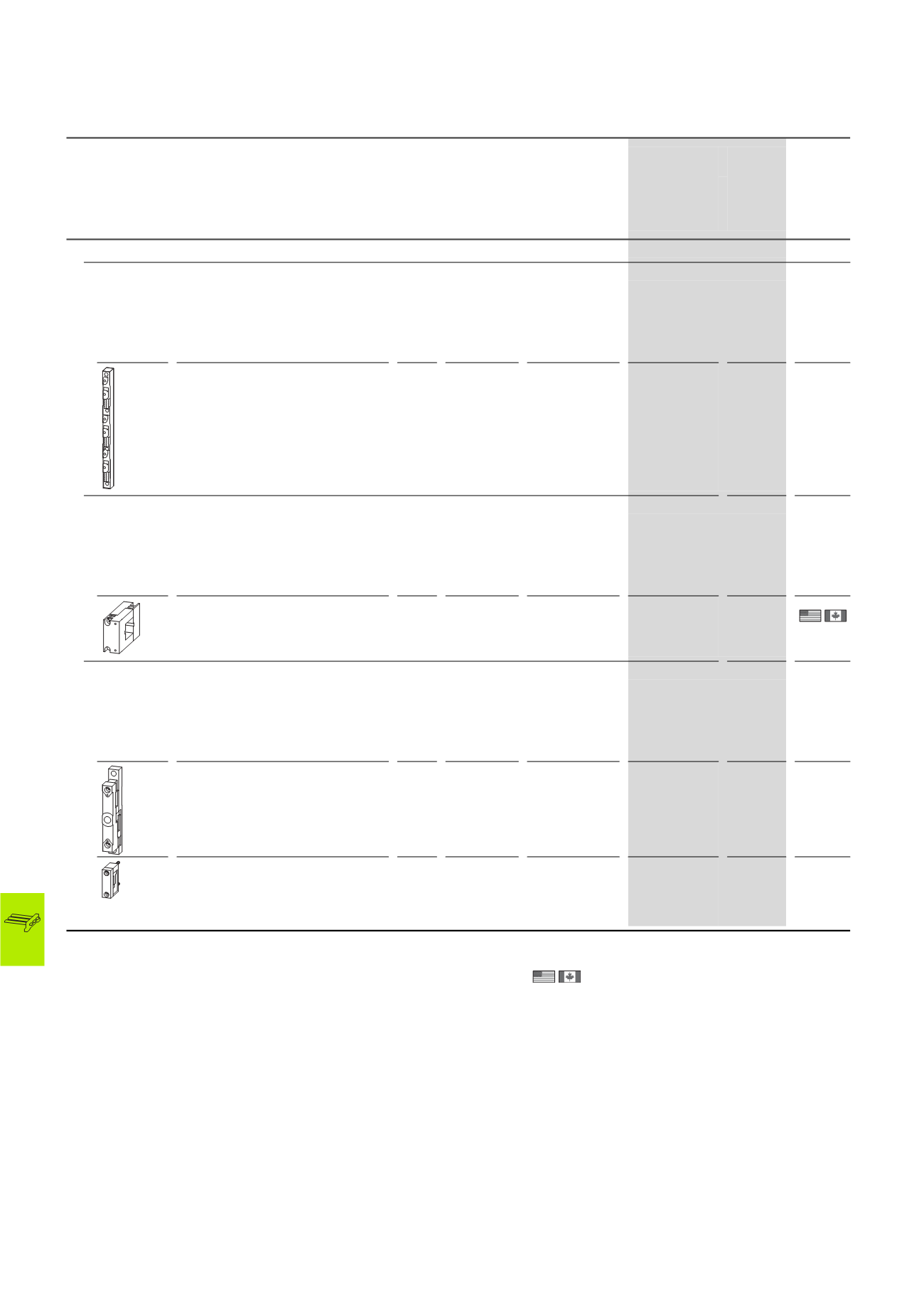

16/30 185 mm system
System for flat and profiled busbars
2010 CA08103002Z-EN
SASY
SASYSystem for flatandprofiledbusbarsOrdering
Poles Rated opera-
tional current
For use with Part no.
Article no.
Price
See price
list
Std. pack
Ie
A
Busbar supports
Double T/Triple T profile busbar supports
• Thermoplast, silicone-free, chlorine-free
• Halogen-free
• Self-extinguishing to UL 94
• RAL 7035
• Creepage resistance CTI 200
• Temperature-resistant up to 120 °C
Can be fitted with NH-SLS…
Hole-less mounting of busbars.
3 2500 30 x 10
40 x 10
50 x 10
60 x 10
80 x 10
100 x 10
120 x 10
Double T profile
Triple T profile
BBS-3/FL-185
107210
1 off
Double T profile busbar supports
• Thermoplast, silicone-free, chlorine-free
• Halogen-free
• Self-extinguishing to UL 94
• RAL 7035
• Creepage resistance CTI 200
• Temperature-resistant up to 120 °C
Suitable for surface mounting of PE or N bar.
With internal screw holes.
1 1600 Double T profile BBS-1/PR
107165
10 off
PE/N busbar supports
• Thermoplast, silicone-free, chlorine-free
• Halogen-free
• Self-extinguishing to UL 94
• RAL 7035
• Creepage resistance CTI 200
• Temperature-resistant up to 120 °C
Can be fitted to all busbar sizes using
concertina system.
Can be mounted individually.
2 630 12 x 5/10
15 x 5/10
20 x 5/10
25 x 5/10
30 x 5/10
BBS-2/FL
107069
10 off
Can be fitted to all busbar sizes using
concertina system.
Can be mounted individually.
1 630 12 x 5/10
15 x 5/10
20 x 5/10
25 x 5/10
30 x 5/10
BBS-1/FL
107161
10 off
Information relevant for export to North America
Product Standards UL508A; CSA-C22.2 No. 14;
IEC 60439-1; CE marking
UL File No. E300273
UL CCN NMTR, NMTR7
CSA File No. 236217
CSA Class No. 3211-37
NA Certification UL Listed, CSA certified
Conditions of Acceptability Refer to approbation report
Suitable for Feeder circuits
Max. Voltage Rating 600 V AC
BBS-... HPL16030EN
