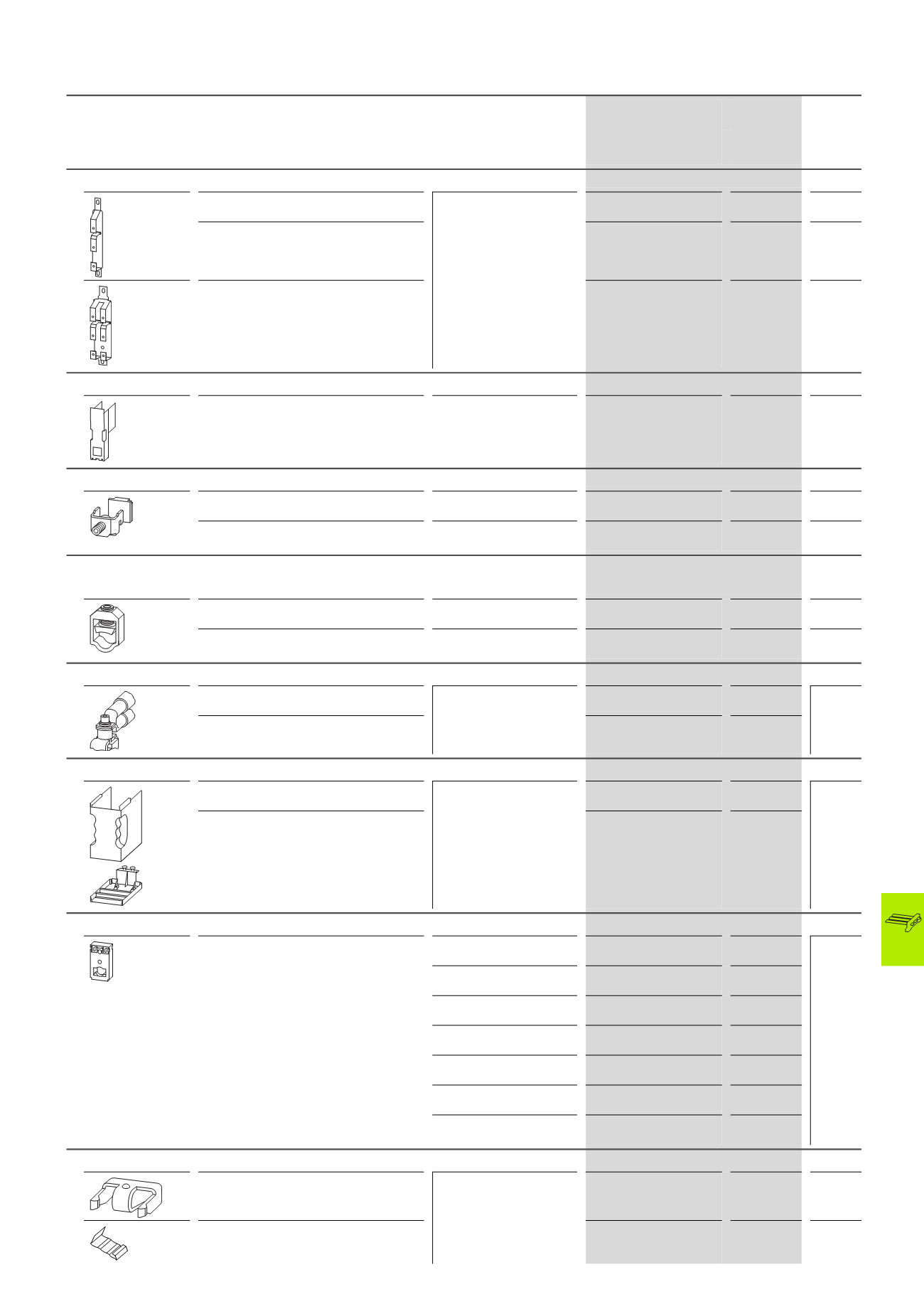

185 mm system
Busbar fuse material
2010 CA08103002Z-EN
www.eaton.comSASY
16/33
SASYBusbar fusematerial
For use with/
transformer ratio
Part no.
Article no.
Price
See price list
Std. pack
K
N
A
Adapters
Single adapter 100/185
30 x 10
40 x 10
50 x 10
60 x 10
80 x 10
100 x 10
120 x 10
Double T profile
Triple T profile
Z-NH-SLS-00-SAD
106220
1 off
Single adapter 100/185
for mounting without holes
Z-NH-SLS-00-SAD-KR
106222
1 off
Double adapter 100/185
Z-NH-SLS-00-SADD
106221
1 off
Terminal shroud/size adapter for NH-SLS
Size 00
for NH-SLS-00/160
Z-NH-SLS-KA
106223
2 off
Claw-type terminals
For connection at bottom
NH-SLS, size 1, 2, 3
Z-NH-SLS-KRU
106224
3 off
For connection at top
NH-SLS, size 1, 2, 3
Z-NH-SLS-KRO
106225
3 off
V-terminals
Up to 240 mm
2
for stranded sectoral conductor, up to 300 mm
2
for solid sectoral conductor
For size 1, 2
NH-SLS, size 1, 2
Z-NH-SLS-1+2-VAK
106226
3 off
For size 3
NH-SLS, size 3
Z-NH-SLS--3VAK
106227
3 off
Terminal expansion for 2 cable lugs
For size 1, 2
–
Z-NH-SLS-1+2-AE
106239
1 off
For size 3
Z-NH-SLS--3AE
106240
Device support with DIN rail for terminals etc.
Cover
–
Z-NH-SLS-1+2+3-GTAB
106231
1 off
Lower section
Z-NH-SLS-1+2+3-GT
106230
Current transformer
NH-SLS-00
• Fit to Z-NH-SLS-00-SAD… with fixing clip
Z-NH-SLS-00BC.
NH-SLS size 1, 2, 3
• Swing into the standard rail, no additional
space requirement.
• Mounting of claw-type terminals still possible
• Fix current transformer cables with fixing
clips Z‐NH‐SLS‐-1+2+3‐BC.
150/5
Z-WAS-150/5A-1
106232
3 off
200/5
Z-WAS-200/5A-1
106233
250/5
Z-WAS-250/5A-1
106234
300/5
Z-WAS-300/5A-1
106235
400/5
Z-WAS-400/5A-1
106236
500/5
Z-WAS-500/5A-1
106237
600/5
Z-WAS-600/5A-1
106238
Fixing clip
For fixing current transformer to adapter
in 185 mm busbar system (size 00)
–
Z-NH-SLS-00-BC
106229
3 off
For fixing (current transformer) cables to rear of
the LV h.b.c. rails of sizes 1, 2, 3
Z-NH-SLS-1+2+3-BC
106228
100 off
Z-NH-SLS, Z-WAS
HPL16033EN
