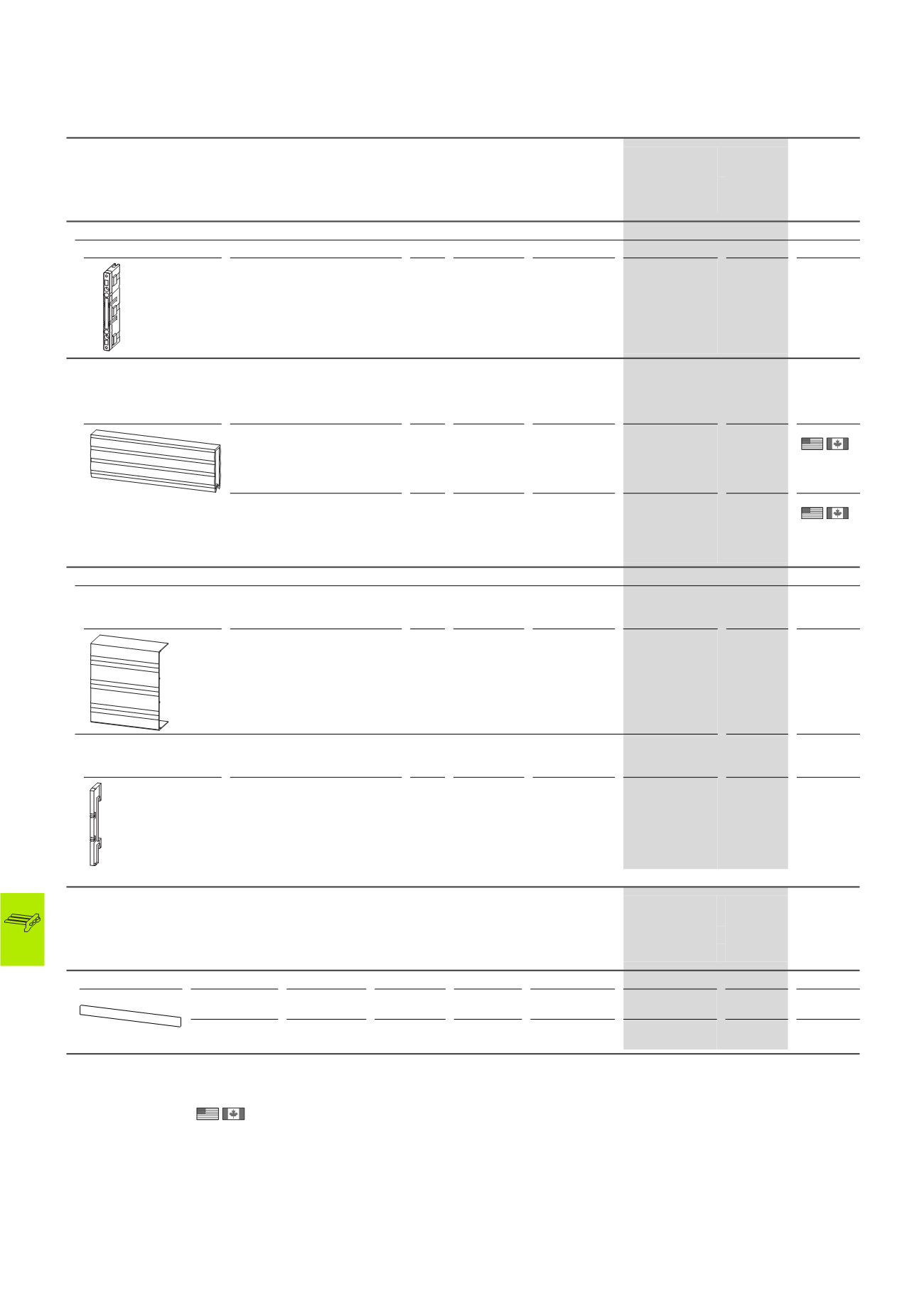

16/24 Compact System
System for flat busbars, system covers
2010 CA08103002Z-EN
SASY
System for flatbusbars,systemcoversSASYOrdering
Poles Rated opera-
tional current
For use with Part no.
Article no.
Price
See price
list
Std. pack
Ie
A
Busbar supports
Compact busbar support
With removable contact element
for adapting to the busbar size.
With screw holes on inside and
integrated end cover.
3 360 12 x 5/10 BBS-3/FL-C1)
138370
10 off
Busbar shrouds
• Silicone-free, chlorine-free
• Temperature-resistant up to 110 °C
• Self-extinguishing to UL 94
1000 mm long. – – 12 x 5
15 x 5
20 x 5
25 x 5
30 x 5
BBC-FL5
107173
10 off
1000 mm long. – – 12 x 10
15 x 10
20 x 10
25 x 10
30 x 10
BBC-FL10
107174
10 off
System covers
Cover for empty sections, modular
For covering the Compact System from the front.
Can only be used with BBC-MRCOV3-C.
1100 mm long. – – BBC-RCOV3-C
138371
2 off
Empty sections cover support
Suitable for 5 and 10 mm busbar thickness.
Can only be used with BBBC-RCOV3-C.
– – – 12 x 5/10 BBC-MRCOV3-C
138372
10 off
Ratedoperational
current
Copper bars Length Copper
factor2)
Material Part no.
Article no.
Price
See price
list
Std. pack
Ie
A mm mm
Flat busbars
160 12 x 5 1500 Copper, tinned CU12X5
034121
10 off
160 12 x 5 2250 Copper, tinned CU12X5-2250
005093
10 off
Notes 1) Short-circuit strength ￫Page 16/40
2) Calculation of material surcharge￫Chapter 23
Information relevant for export to North America
Product Standards UL508A; CSA-C22.2 No. 14; IEC 60439-1; CE marking
UL File No. E300273
UL CCN NMTR, NMTR7
CSA File No. 236217
CSA Class No. 3211-37
NA Certification UL Listed, CSA certified
Conditions of Acceptability Refer to approbation report
Suitable for Feeder circuits
Max. Voltage Rating 600 V AC
BBC..., CU12X HPL16024EN
