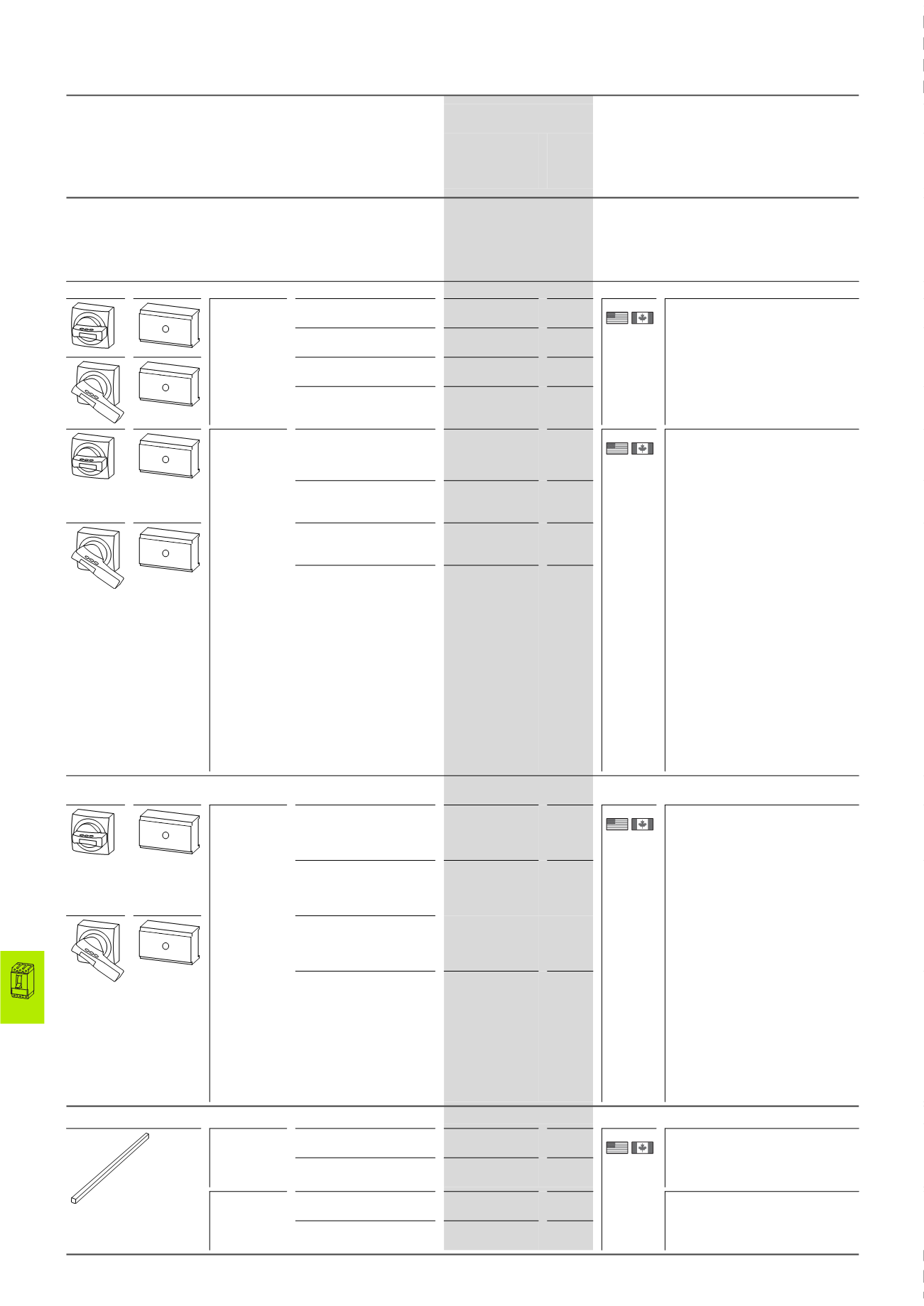

17/120 Circuit-breakers, switch-disconnectors
Door coupling rotary handles for North America
2010 CA08103002Z-EN
Doorcoupling rotaryhandles forNorthAmerica
Standard
Product view For use with Part no.
Article no. when
ordered separately
Price
See
price list
Std. pack Notes
Door coupling rotary handles
Complete including rotary drive and coupling parts
Extension shaft additionally required.
Degree of protection IP66/UL/CSA type 4X, 12
Difference to normal IEC handles:
Door opening only possible with active rotation beyond the 0 position.
Standard, black/grey
Lockable in
0 position on
handle. With
door interlock.
NZM1, N1 NZM1-XTVD-NA
271445
1 off Door interlock
• Can not be defeated in the locked
OFF position.
• Door opening with active rotation
beyond the 0 position.
• Cannot be combined with mechanical
interlock
• External warning plate/designation
label can be clipped on.
NZM2, N2 NZM2-XTVD-NA
271446
NZM3, N3 NZM3-XTVD-NA
271447
NZM4, N4 NZM4-XTVD-NA
271448
Lockable on
handle and
switch with up
to 3 padlocks.
Lockable in
0 position on
handle. With
door interlock.
Lockable on
switch in
0 position.
NZM1, N(S)1 NZM1-XTVDV-NA
100683
1 off Door interlock
• Can not be defeated in the locked
OFF position.
• Door opening possible with active
rotation beyond the 0 position. Can be
defeated from the outside using a
screwdriver.
• Cannot be combined with mechanical
interlock
• External warning plate/designation
label can be clipped on.
NZM2, N(S)2 NZM2-XTVDV-NA
100684
NZM3, N(S)3 NZM3-XTVDV-NA
100685
NZM4, N(S)4 NZM4-XTVDV-NA
100686
Red-yellow for emergency
switching off
Lockable on
handle and
switch with up
to 3 padlocks.
Lockable in
0 position on
handle. With
door interlock.
Lockable on
switch in
0 position.
NZM1, N(S)1 NZM1-XTVDVR-NA
271449
1 off Door interlock
• Can not be defeated in the locked
OFF position.
• Door opening with active rotation
beyond the 0 position.
• Cannot be combined with mechanical
interlock
• External warning plate/designation
label can be clipped on.
NZM2, N(S)2 NZM2-XTVDVR-NA
271450
NZM3, N(S)3 NZM3-XTVDVR-NA
271451
NZM4, N(S)4 NZM4-XTVDVR-NA
271452
Extension shaft
400 mm max.
mounting depth
NZM1(-4), PN1(-4), N(S)1(-4)
NZM2(-4), PN2(-4), N(S)2(-4)
NZM1/2-XV4
261232
1 off Length 290 mm, can be cut to required
length.
NZM3(-4), PN3(-4), N(S)3(-4)
NZM4(-4), N(S)4(-4)
NZM3/4-XV4
261234
600 mm max.
mounting depth
NZM1(-4), PN1(-4), N(S)1(-4)
NZM2(-4), PN2(-4), N(S)2(-4)
NZM1/2-XV6
260191
Length 425 mm, can be cut to required
length.
NZM3(-4), PN3(-4), N(S)3(-4)
NZM4(-4), N(S)4(-4)
NZM3/4-XV6
260193
Notes Circuit-breaker can also be installed in a lying position 90° left/right, with the handle still in the same position.
NZM1, NZM2, NZM3, NZM4 HPL17120EN
