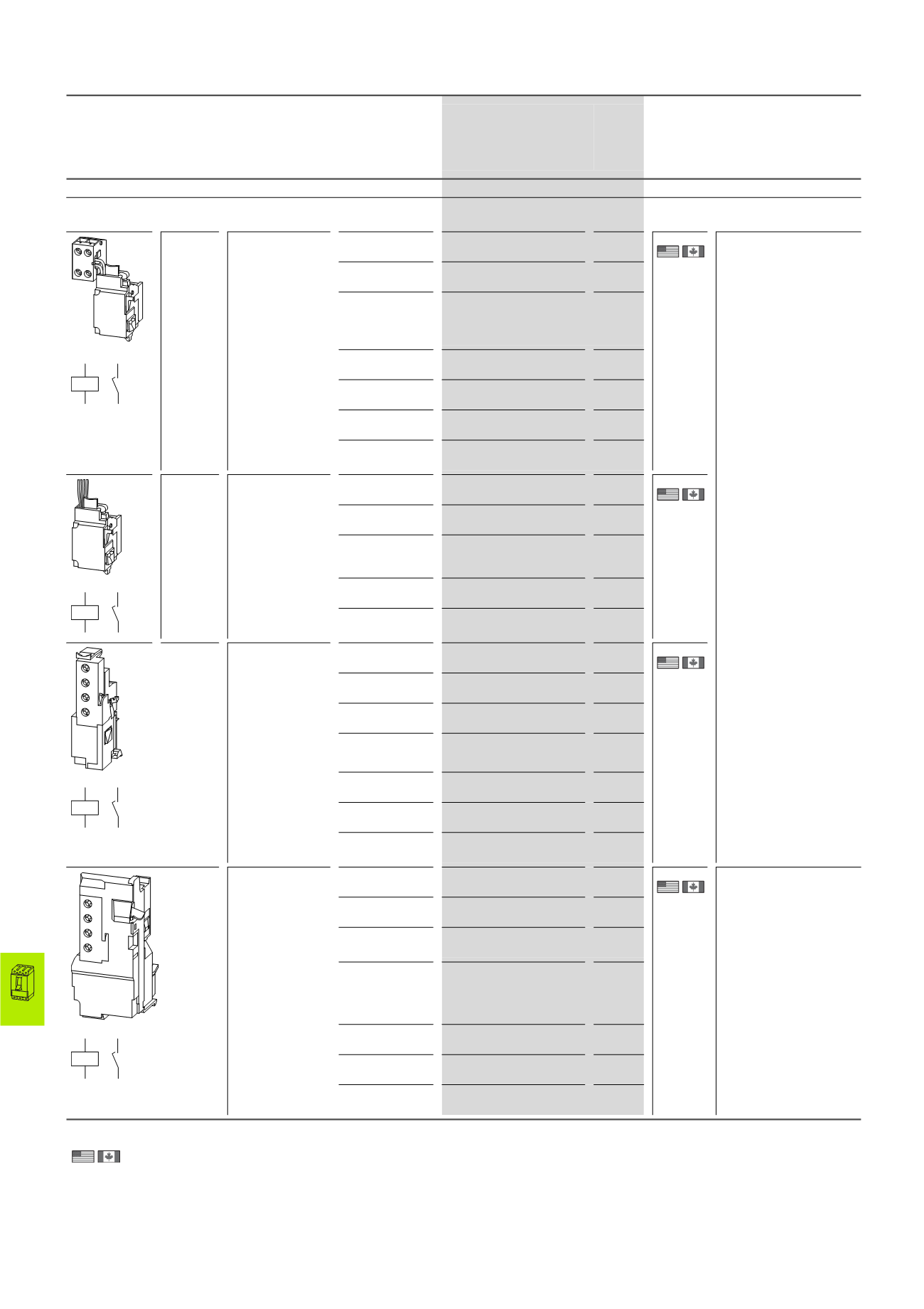

17/116 Circuit-breakers, switch-disconnectors
Shunt releases
2010 CA08103002Z-EN
Shunt releases
For use with Rated control
voltage
Part no.
Article no. when ordered
separately
Price
See price
list
Std. pack Notes
Us
V
Shunt releases
With early-make auxiliary contact
Not in combination with remote operator.
Withclamp
terminal on
left switch
side.
NZM1(-4), N(S)1(-4) 12 V AC/DC NZM1-XAHIV12AC/DC
259772
1 off When the shunt release is live,
contact with the switch’s main
contacts on switching on is
reliably prevented.
Earlymake of auxiliarycontact
on switching on and off
(manual operation):
approx. 20 ms.
Undervoltage release cannot
be installed simultaneously
with early-make auxiliary
contact NZM...-XHIV... or
undervoltage release
NZM...-XU...
24 V AC/DC NZM1-XAHIV24AC/DC
259774
48 V AC/DC NZM1-XAHIV48AC/DC
259776
60 V AC/DC NZM1-XAHIV60AC/DC
259778
110 V-130 V AC/DC NZM1-XAHIV110-130AC/DC
259780
208 V-250 V AC/DC NZM1-XAHIV208-250AC/DC
259782
380 V-440 V AC/DC NZM1-XAHIV380-440AC/DC
259784
With 3 m
connection
cable
instead of
screw
connection
.
NZM1(-4), N(S)1(-4) 12 V AC/DC NZM1-XAHIVL12AC/DC
259790
1 off
24 V AC/DC NZM1-XAHIVL24AC/DC
259792
110 V-130 V AC/DC NZM1-XAHIVL110-130AC/DC
259798
208 V-250 V AC/DC NZM1-XAHIVL208-250AC/DC
259800
380 V-440 V AC/DC NZM1-XAHIVL380-440AC/DC
259802
NZM2(-4), N(S)2(-4)
NZM3(-4), N(S)3(-4)
12 V AC/DC NZM2/3-XAHIV12AC/DC
259808
1 off
24 V AC/DC NZM2/3-XAHIV24AC/DC
259810
48 V AC/DC NZM2/3-XAHIV48AC/DC
259812
60 V AC/DC NZM2/3-XAHIV60AC/DC
259814
110 V-130 V AC/DC NZM2/3-XAHIV110-130AC/DC
259816
208 V-250 V AC/DC NZM2/3-XAHIV208-250AC/DC
259818
380 V-440 V AC/DC NZM2/3-XAHIV380-440AC/DC
259820
NZM4(-4), N(S)4(-4) 12 V AC/DC NZM4-XAHIV12AC/DC
266470
1 off When the shunt release is live,
contact with the switch’s main
contacts on switching on is
reliably prevented.
Earlymake of auxiliarycontact
on switching on (manual
operation): approx. 90 ms.
Cannot be used in conjunction
with remote operator
NZM...-XR....
Undervoltage release cannot
be installed simultaneously
with early-make auxiliary
contact NZM...-XHIV... or
undervoltage release
NZM...-XU...
24 V AC/DC NZM4-XAHIV24AC/DC
266471
48 V AC/DC NZM4-XAHIV48AC/DC
266472
60 V AC/DC NZM4-XAHIV60AC/DC
266473
110 V-130 V AC/DC NZM4-XAHIV110-130AC/DC
266474
208 V-250 V AC/DC NZM4-XAHIV208-250AC/DC
266475
380 V-440 V AC/DC NZM4-XAHIV380-440AC/DC
266476
Information relevant for export to North America Product Standards UL489; CSA-C22.2 No. 5-09; IEC60947, CE marking
UL File No. E140305
UL CCN DIHS
CSA File No. 022086
CSA Class No. 1437-01
NA Certification UL Listed, CSA certified
C1
C2
3.13
3.14
C1
C2
3.13
3.14
C1
C2
3.13
3.14
C1
C2
3.13
3.14
NZM1, NZM2/3, NZM4 HPL17116EN
