Eaton Industrial Switchgear - XEnergy XPole Energy distribution, switching and protection

208 / 543

17/112 Circuit-breakers, switch-disconnectors
Undervoltage releases
2010 CA08103002Z-EN
Undervoltage releases
For use
with
Rated control voltage Part no.
Article no. when ordered
separately
Price
See price
list
Std. pack Notes
Us
V

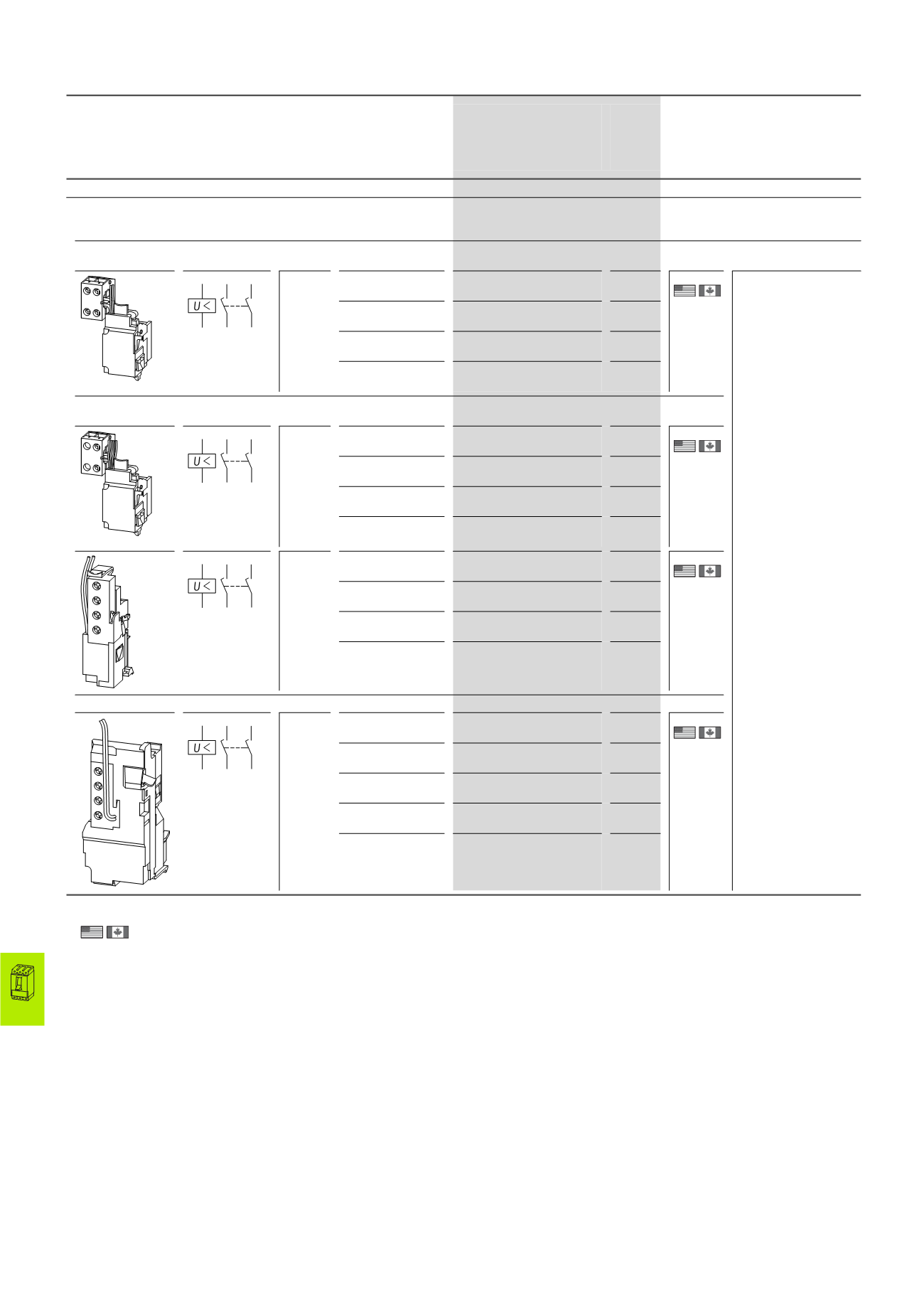

Undervoltage releases
With 2 separate early-make auxiliary contacts
For use with emergency switching off devices in conjunction with emergency
switching off button.
Coil connections wired to clamp terminals, auxiliary contact connections with
3 m loose connection cables.
NZM1(-4),
N(S)1(-4)
24 V 50/60 Hz NZM1-XUHIV20KL24AC
284388
1 off When the undervoltage
release is de-energized,
accidental contact with
the main contacts of the
switch during attempts to
switch on is reliably
prevented.
Early make of auxiliary
contacts on switching on
and off (manual operation):
approx. 20 ms
Cannot be used in
conjunction with remote
operator NZM...-XR....
Undervoltage release
cannot be installed simul-
taneously with early-make
auxiliary contact NZM...-
XHIV... or shunt release
NZM...-XA...
110 V-130 V 50/60 Hz NZM1-XUHIV20KL110-130AC
284389
208 V-240 V 50/60 Hz NZM1-XUHIV20KL208-240AC
284400
24 V DC NZM1-XUHIV20KL24DC
284387
Coil connections with 3 m loose connection cables, auxiliary contact connec-
tions wired to clamp terminals.
NZM1(-4),
N(S)1(-4)
24 V 50/60 Hz NZM1-XUHIV20LK24AC
284402
1 off
110 V-130 V 50/60 Hz NZM1-XUHIV20LK110-130AC
284403
208 V-240 V 50/60 Hz NZM1-XUHIV20LK208-240AC
284404
24 V DC NZM1-XUHIV20LK24DC
284401
NZM2(-4),
N(S)2(-4)
NZM3(-4),
N(S)3(-4)
24 V 50/60 Hz NZM2/3-XUHIV20LK24AC
285291
1 off
110 V-130 V 50/60 Hz NZM2/3-XUHIV20LK110-130AC
284407
208 V-240 V 50/60 Hz NZM2/3-XUHIV20LK208-240AC
284408
24 V DC NZM2/3-XUHIV20LK24DC
284405
Contacts 3.23 and 3.24 with separate 3 m connection cables.
NZM4(-4),
N(S)4(-4)
24 V 50/60 Hz NZM4-XUHIV2024AC
266244
1 off
110 V-130 V 50/60 Hz NZM4-XUHIV20110-130AC
266247
208 V-240 V 50/60 Hz NZM4-XUHIV20208-240AC
266248
380 V-440 V 50/60 Hz NZM4-XUHIV20380-440AC
266249
24 V DC NZM4-XUHIV2024DC
266258
Information relevant for export to North America Product Standards UL489; CSA-C22.2 No. 5-09; IEC60947, CE marking
UL File No. E140305
UL CCN DIHS
CSA File No. 022086
CSA Class No. 1437-01
NA Certification UL Listed, CSA certified
3.23
3.24
3.13
3.14 D2
D1
3.23
3.24
3.13
3.14 D2
D1
3.23
3.24
3.13
3.14 D2
D1
3.23
3.24
3.13
3.14 D2
D1
NZM1, NZM2/3..., NZM4 HPL17112EN
