Eaton Industrial Switchgear - XEnergy XPole Energy distribution, switching and protection

205 / 543

Circuit-breakers, switch-disconnectors
Undervoltage releases
2010 CA08103002Z-EN
17/109

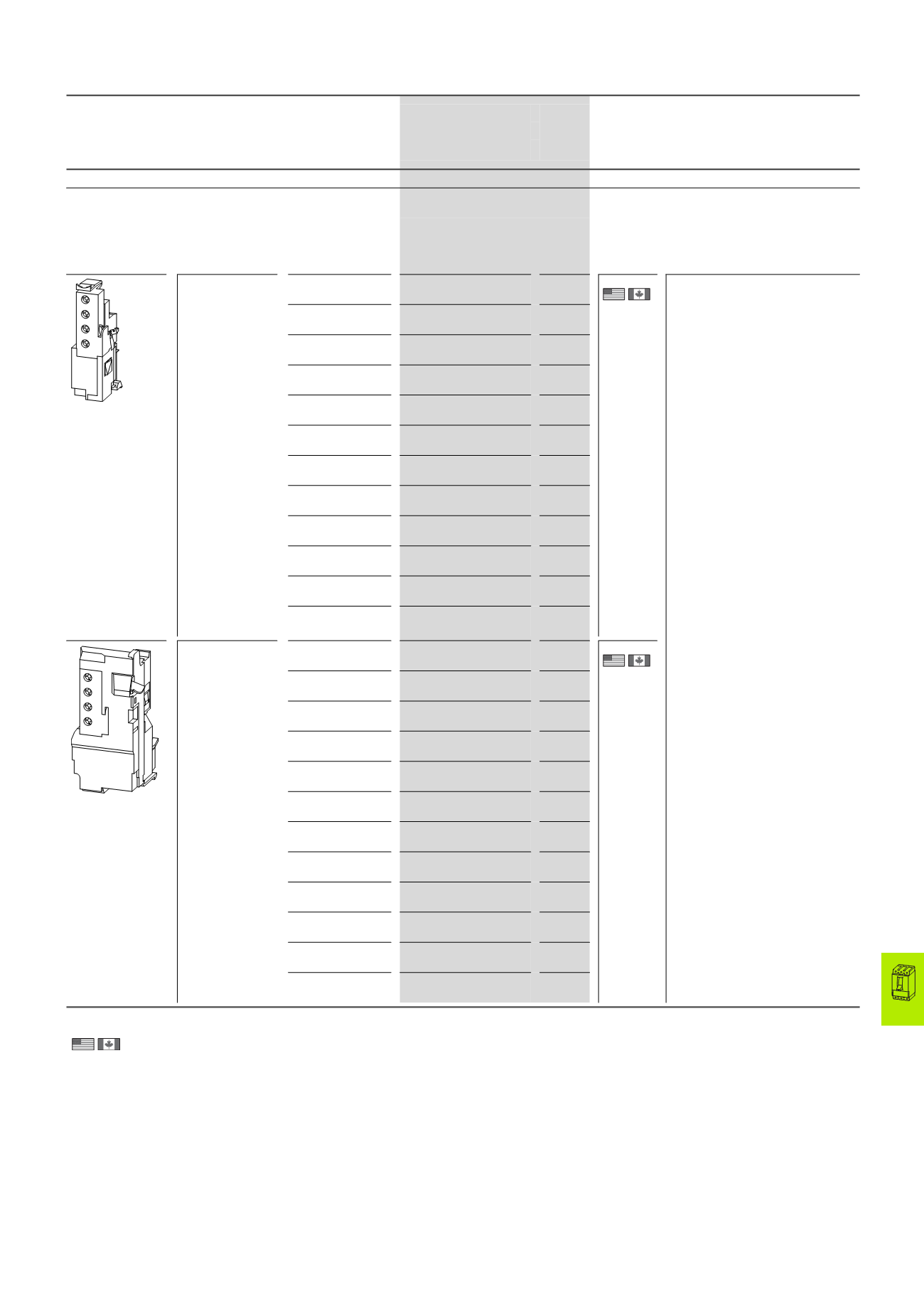

Undervoltage releases
For use with Rated control voltage Part no.
Article no. when ordered
separately
Price
See price
list
Std. pack Notes
Us
V
Undervoltage releases
Without auxiliary
contacts
Non-delayed disconnection of circuit-breaker NZM or switch-
disconnector N when control voltage drops below 35 – 70% US.
For use with emergency switching off devices in conjunction with
emergency switching off button
NZM2(-4), N(S)2(-4)
NZM3(-4), N(S)3(-4)
24 V 50/60 Hz NZM2/3-XU24AC
259491
1 off When the undervoltage release is
de-energized, accidental contact with
the main switches of the switch during
attempts to switch on is reliably
prevented.
Undervoltage release cannot be installed
simultaneously with early-make auxiliary
contact NZM...-XHIV... or undervoltage
release NZM...-XA...
48 V 50/60 Hz NZM2/3-XU48AC
259493
60 V 50/60 Hz NZM2/3-XU60AC
259495
110 V-130 V 50/60 Hz NZM2/3-XU110-130AC
259497
208 V-240 V 50/60 Hz NZM2/3-XU208-240AC
259499
380 V-440 V 50/60 Hz NZM2/3-XU380-440AC
259501
480 V-525 V 50/60 Hz NZM2/3-XU480-525AC
259503
600 V 50/60 Hz NZM2/3-XU600AC
259505
12 V DC NZM2/3-XU12DC
259507
24 V DC NZM2/3-XU24DC
259509
110 V-130 V DC NZM2/3-XU110-130DC
259515
220 V-250 V DC NZM2/3-XU220-250DC
259517
NZM4(-4), N(S)4(-4) 24 V 50/60 Hz NZM4-XU24AC
266189
1 off
48 V 50/60 Hz NZM4-XU48AC
266190
60 V 50/60 Hz NZM4-XU60AC
266191
110 V-130 V 50/60 Hz NZM4-XU110-130AC
266192
208 V-240 V 50/60 Hz NZM4-XU208-240AC
266193
380 V-440 V 50/60 Hz NZM4-XU380-440AC
266194
480 V-525 V 50/60 Hz NZM4-XU480-525AC
266195
600 V 50/60 Hz NZM4-XU600AC
266196
12 V DC NZM4-XU12DC
266203
24 V DC NZM4-XU24DC
266204
110 V-130 V DC NZM4-XU110-130DC
266207
220 V-250 V DC NZM4-XU220-250DC
266208
Information relevant for export to North America Product Standards UL489; CSA-C22.2 No. 5-09; IEC60947, CE marking
UL File No. E140305
UL CCN DIHS
CSA File No. 022086
CSA Class No. 1437-01
NA Certification UL Listed, CSA certified
NZM2/3..., NZM4 HPL17109EN
