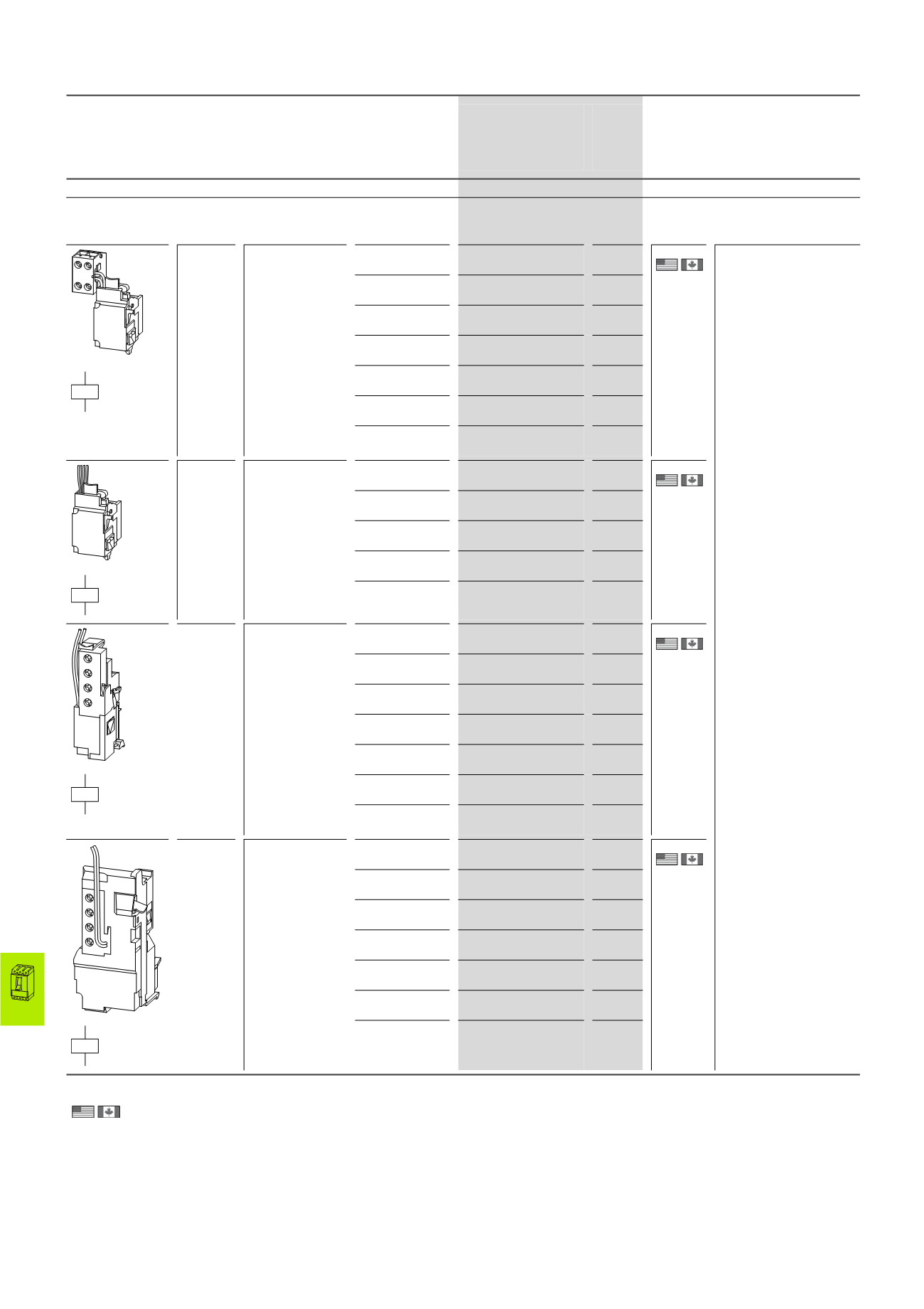

17/114 Circuit-breakers, switch-disconnectors
Shunt releases
2010 CA08103002Z-EN
Shunt releases
For use with Rated cntrol
voltage
Part no.
Article no. when ordered
separately
Price
See price
list
Std. pack Notes
Us
V
Shunt releases
Without auxiliary contacts
Switches are tripped by a voltage pulse or by the application of uninterrupted
voltage.
Withclamp
terminal on
left switch
side.
NZM1(-4), N(S)1(-4) 12 V AC/DC NZM1-XA12AC/DC
259706
1 off When the shunt release is live,
contact with the switch’s main
contacts on switching on is
reliably prevented.
Undervoltage releases cannot
be installed simultaneously
with early-make auxiliary
contact NZM...-XHIV... or
shunt release NZM...-XU... .
24 V AC/DC NZM1-XA24AC/DC
259708
48 V AC/DC NZM1-XA48AC/DC
259720
60 V AC/DC NZM1-XA60AC/DC
259722
110 V-130 V AC/DC NZM1-XA110-130AC/DC
259724
208 V-250 V AC/DC NZM1-XA208-250AC/DC
259726
380 V-440 V AC/DC NZM1-XA380-440AC/DC
259728
With 3 m
connection
cable
instead of
screw
terminal.
NZM1(-4), N(S)1(-4) 12 V AC/DC NZM1-XAL12AC/DC
259734
1 off
24 V AC/DC NZM1-XAL24AC/DC
259736
110 V-130 V AC/DC NZM1-XAL110-130AC/DC
259742
208 V-250 V AC/DC NZM1-XAL208-250AC/DC
259744
380 V-440 V AC/DC NZM1-XAL380-440AC/DC
259746
NZM2(-4), N(S)2(-4)
NZM3(-4), N(S)3(-4)
12 V AC/DC NZM2/3-XA12AC/DC
259752
1 off
24 V AC/DC NZM2/3-XA24AC/DC
259754
48 V AC/DC NZM2/3-XA48AC/DC
259756
60 V AC/DC NZM2/3-XA60AC/DC
259758
110 V-130 V AC/DC NZM2/3-XA110-130AC/DC
259760
208 V-250 V AC/DC NZM2/3-XA208-250AC/DC
259763
380 V-440 V AC/DC NZM2/3-XA380-440AC/DC
259766
NZM4(-4), N(S)4(-4) 12 V AC/DC NZM4-XA12AC/DC
266446
1 off
24 V AC/DC NZM4-XA24AC/DC
266447
48 V AC/DC NZM4-XA48AC/DC
266448
60 V AC/DC NZM4-XA60AC/DC
266449
110 V-130 V AC/DC NZM4-XA110-130AC/DC
266450
208 V-250 V AC/DC NZM4-XA208-250AC/DC
266451
380 V-440 V AC/DC NZM4-XA380-440AC/DC
266452
Information relevant for export to North America Product Standards UL489; CSA-C22.2 No. 5-09; IEC60947, CE marking
UL File No. E140305
UL CCN DIHS
CSA File No. 022086
CSA Class No. 1437-01
NA Certification UL Listed, CSA certified
C1
C2
C1
C2
C1
C2
C1
C2
NZM1, NZM2/3, NZM4 HPL17114EN
