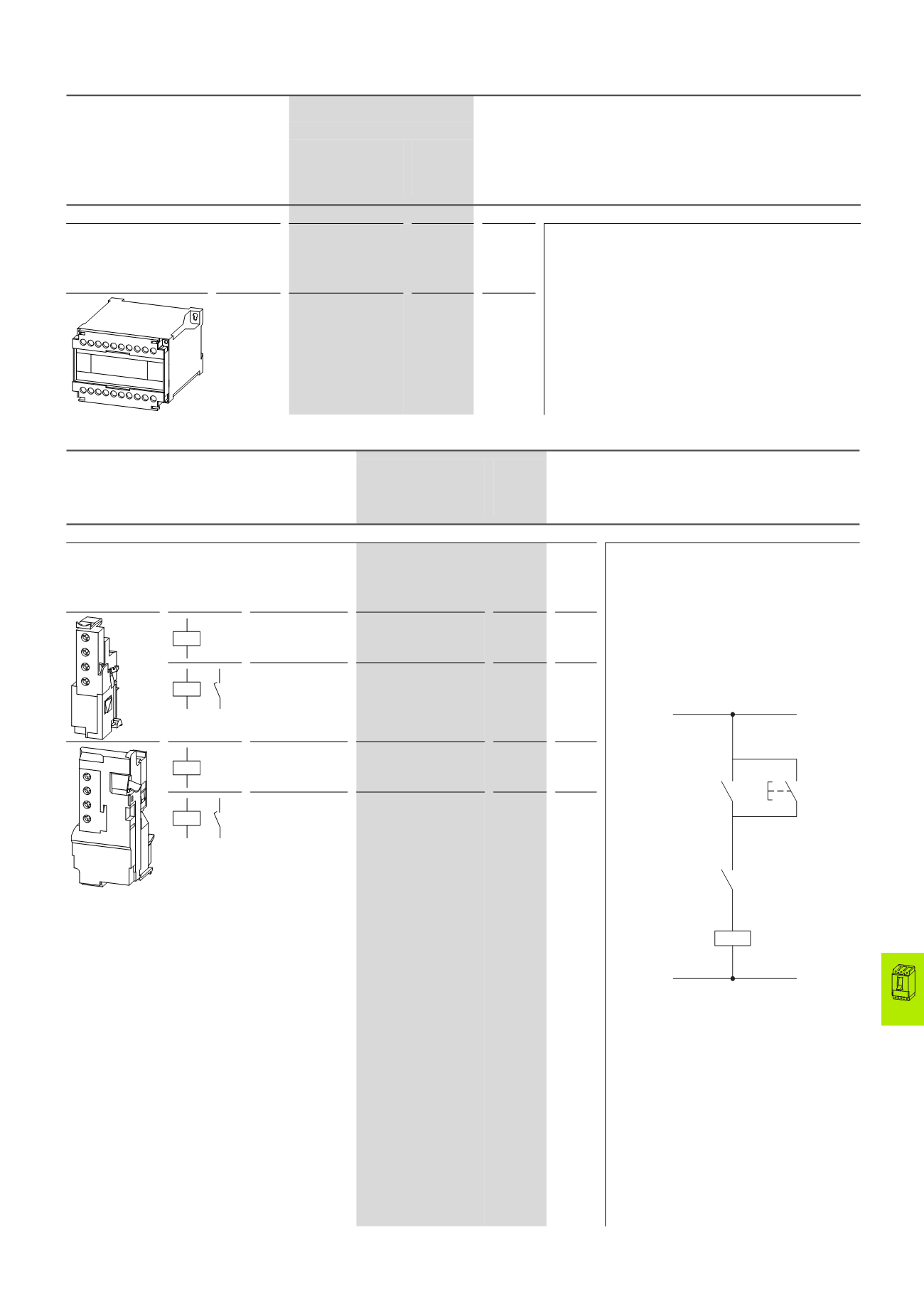

Circuit-breakers, switch-disconnectors
Shunt releases
2010 CA08103002Z-EN
17/115
Shunt releases
With screw terminal
For use with Part no.
Article no.
With screw terminal
Price
See price
list
Std. pack Notes
Shunt releases
Capacitor unit 230 V 50/60 Hz
in conjunction with shunt release
NZM...-XA208-250 AC/DC
Enclosure: degree of protection IP20
Not UL/CSA approved
Enables the reliable use of circuit-breakers as mesh network
circuit-breakers in the range from 0 – 110 % Un with constant
switch-off time of 40 ms.
If the mains voltage is absent, the installed capacitor supplies
power for actuating the shunt release for at least 12 hours.
The capacitor unit is arranged independently of the circuit-breaker.
Connect NZM‐XCM to the power feed side.
Note on engineering:
Connect a standard auxiliary contact (HIN) as N/O in series with the
coil of the shunt release!
Standard auxiliary contact not included as standard.
NZM1(-4),
N(S)1(-4)
NZM2(-4),
N(S)2(-4)
NZM3(-4),
N(S)3(-4)
NZM4(-4),
N(S)4(-4)
NZM-XCM
229413
1 off
Part no.
Article no.
With screw terminal
Price
See price
list
Std.
pack
Notes
Shunt releases
For mesh network circuit-breakers
For intermittent operation
Maximum On-time = 1 s
Operating range 10-110 % Us
Not UL/CSA approved
Rated control voltage
230 V AC
For use with
NZM3(-4), N3(-4) and NZM4(-4), N4(-4)
Cannot be installed simultaneously with early-make
auxiliary contact NZM...-XHIV... or undervoltage
release NZM...-XU... .
Intermittent operation guaranteed by series
connection of a make contact M22-(C)K10.
The maximum duty factor of the shunt releases for
mesh network circuit-breakers is 1 s.
NZM...-XAHIV:
Cannot be used in conjunction with remote operator
NZM...-XR....
NZM3: Early make of auxiliary contact
on switching on and off (manual operation):
approx. 20 ms.
NZM4: Early make of auxiliary contact on switching on
(manual operation): approx. 90 ms.
Without auxiliary
contacts
NZM3-XA-230AC-MNS
274097
1 off
With early-make
auxiliary contact
NZM3-XAHIV-230AC-MNS
274141
1 off
Without auxiliary
contacts
NZM4-XA-230AC-MNS
274138
With early-make
auxiliary contact
NZM4-XAHIV-230AC-MNS
274143
1 off
① Reverse power relay contact from
mesh network relay
-S11 Remote off
q Standard auxiliary contacts
-Q1 Shunt releases
1.13
1.14
C1
C2
-Q1
L1 (L+)
Q
HIN
-S11
0
NZM...-XA...-MNS
M22-...K10
N (L-, L2)
a
C1
C2
C1
C2
3.13
3.14
C1
C2
C1
C2
3.13
3.14
NZM...-XA... HPL17115EN
