Eaton Industrial Switchgear - XEnergy XPole Energy distribution, switching and protection

11 / 543

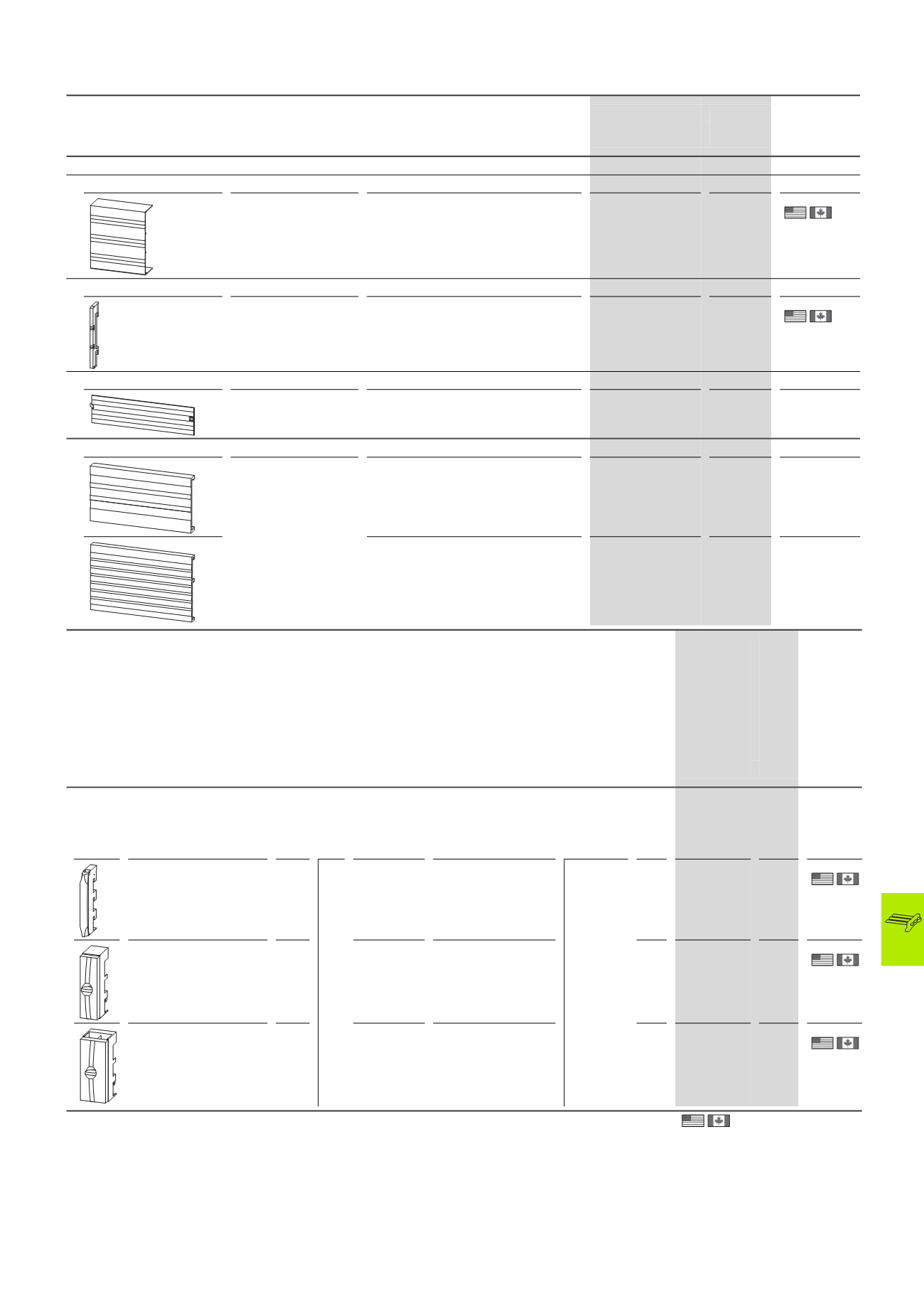

60 mm system
System covers
2010 CA08103002Z-EN
SASY 16/7
SASYSystemcovers
Part no.
Article no.
Price
See price
list
Std. pack
Description
Spare covers
Cover for empty sections, modular
To cover the 60mmsystem
from the front
Can only be used with
BBC-MRCOV1.
1100 mm long. BBC-RCOV1
107178
2 off
Empty sections cover support
Suitable for all busbar
thicknesses.
Can only be used with
BBC-RCOV1.
– BBC-MRCOV1
107179
10 off
Empty sections cover for front panel cutouts
Cover module for cutouts 54 mm wide.
194 mm high.
AM-195/54
107963
15 off
Separation profiles double T
For 3 pole systems with
BBS-3/PR
48 mm high.
2400 mm long.
Fixing on (profile) busbar support.
BBC-CS48/PR
107176
1 off
76 mm high.
2400 mm long.
Fixing on (profile) busbar support.
BBC-CS76/PR
107177
1 off
Width Poles Rated
operating
current
Ie
Terminal capacity For use with Cu
factor1)
Part no.
Article no.
Price
See
price
list
Std. pack
⊙ Round conductor, solid
 Round conductor, flexible,
with correctly crimped ferrule
 Round conductor, stranded
 Sectoral conductor, solid
 Sectoral conductor,, stranded
Copper strip
▃Copper bar
mm A mm
Terminal plates
• Silicone-free, chlorine-free
• Temperature-resistant up to 120°C
• Self-extinguishing to UL 94
• Creepage resistance CTI 200
Spring-type terminal design. 20 3 80 1.5 - 16 mm2
AWG 16 - AWG 6.

12 x 5/10
15 x 5/10
20 x 5/10
25 x 5/10
30 x 5/10
Double T
profile
BBA-TP3/16
107205
1 off
The terminal can be removed
for the connection of uncut
conductors.
Terminal area W x H
10 x 15 mm .
Loop-through is possible.
54 300 6 - 50 mm2
AWG 10 - AWG 2/0.

6 x 9 x 0.8
BBA-TP3/50
107183
1 off
The terminal can be removed
for the connection of uncut
conductors.
Terminal area W x H
15 x 15 mm.
Loop-through is possible.
81 440 35 - 120 mm2
AWG 2 - MCM 250.

10 x 16 x 0.8
BBA-TP3/120
107184
1 off
Notes 1)Calculation of material surcharge￫Chapter 23 Information relevant for export to North America
Product Standards UL508A; CSA-C22.2 No. 14;
IEC 60439-1; CE marking
UL File No. E300273
UL CCN NMTR, NMTR7
CSA File No. 236217
CSA Class No. 3211-37
NA Certification UL Listed, CSA certified
Conditions of Acceptability Refer to approbation report
Suitable for Feeder circuits
Max. Voltage Rating 600 V AC
BBC-..., BBA-TP HPL16007EN
