Eaton Industrial Switchgear - XEnergy XPole Energy distribution, switching and protection

16 / 543

16/12 60 mm system
Terminals and connectors
2010 CA08103002Z-EN
SASY
Terminal
area
W × H
Width Rated
operating
current
Ie
Terminal capacity For use with Part no.
Article no.
Price
See price
list
Std. pack
⊙ Round conductor, solid
 Round conductor, flexible,
with correctly crimped ferrule
 Round conductor, stranded
 Sectoral conductor, solid
 Sectoral conductor,, stranded
Copper strip
▃Copper bar
mm mm A mm

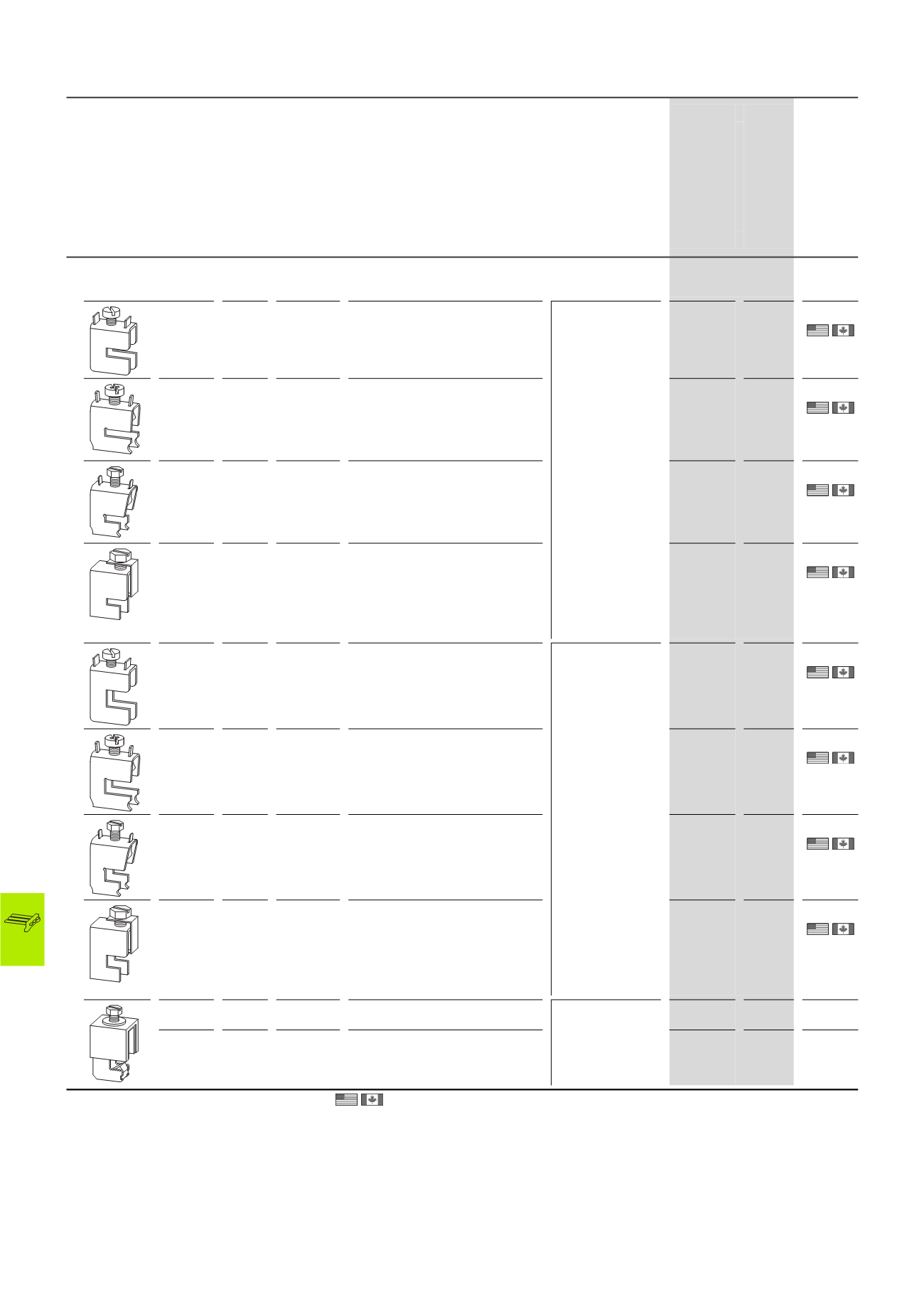

Universal conductor Connection terminals
With integrated retaining spring, open clamping area and captive terminal screw.
7.5 x 7.5 11.5 180 1.5 - 16 mm2
AWG 14 - AWG 6.
 Directly clamped
⊙
 8 x 6 x 0.5
All 5 mm thick flat
busbars
AKU16/5
107187
100 off
10.5 x 11 15.5 270 4 - 35 mm2
AWG 10 - AWG 2.
 Directly clamped
⊙
 3 x 9 x 0.8
or 6 x 9 x 0.8
AKU35/5
107188
50 off
14 x 14 20.5 400 16 - 70 mm 2
AWG 4 - AWG 2/0.
 Directly clamped

 2 x (3 x 9 x 0.8)
or 6 x 9 x 0.8
AKU70/5
107189
25 off
17 x 1 23.5 440 16 - 120 mm2
AWG 4 - MCM 250.
 Directly clamped

 4 x 16 x 0.8
or 6 x 16 x 0.8
or 10 x 16 x 0.8
AKU120/5
107190
25 off
7.5 x 7.5 11.5 180 1.5 - 16 mm2
AWG 14 - AWG 6.
 Directly clamped
⊙
 8 x 6 x 0.5
All 10 mm thick flat
busbars
AKU16/10
107191
100 off
10.5 x 11 15.5 270 4 - 35 mm2
AWG 10 - AWG 2.
 Directly clamped
⊙
 3 x 9 x 0.8
or 6 x 9 x 0.8
AKU35/10
107192
50 off
14 x 14 20.5 400 16 - 70 mm 2
AWG 4 - AWG 2/0.
 Directly clamped

 2 x (3 x 9 x 0.8)
or 6 x 9 x 0.8
AKU70/10
107193
25 off
17 x 15 23.5 440 16 - 120 mm2
AWG 4 - MCM 250.
 Directly clamped

 4 x 16 x 0.8
or 6 x 16 x 0.8
or 10 x 16 x 0.8
AKU120/10
107194
25 off
M8 x 8
bolts
30 490 Cable lugs M8 All 10 mm thick flat
busbars
Double T profile
AKU-M8/10
138362
20 off
M10 x 10
bolts
38 630 Cable lugs M10 AKU-M10/10
138361
6 off
Information relevant for export to North America
Product Standards UL508A; CSA-C22.2 No. 14; IEC 60439-1;
CE marking
UL File No. E307559
UL CCN NMTR2, NMTR8
CSA File No. 236217
CSA Class No. 3211-37
NA Certification UL Recognized, CSA certified
Conditions of Acceptability Refer to approbation report
Suitable for Feeder circuits
Max. Voltage Rating 600 V AC
AKU... HPL16012EN
