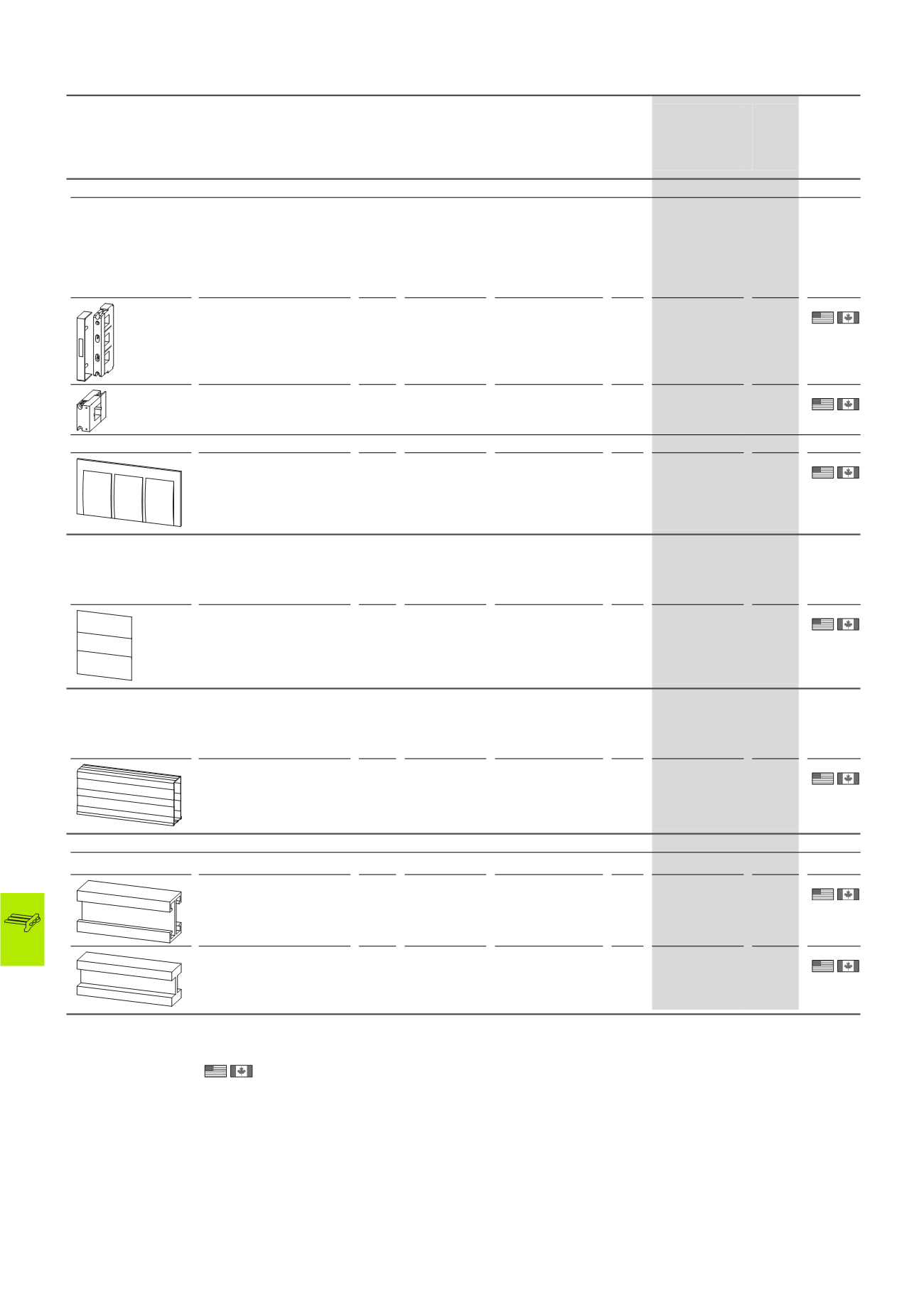

Eaton Industrial Switchgear - XEnergy XPole Energy distribution, switching and protection

10 / 543

16/6 60 mm system
System for profile busbars
2010 CA08103002Z-EN
SASY
SASYSystem forprofilebusbars
Poles Rated opera-
tional current
For use with Copper
factor
Part no.
Article no.
Price
See
price list
Std. pack
Ie
A
Busbar supports
Double T profile busbar supports
• Thermoplast, silicone-free, chlorine-free
• Halogen-free
• Self-extinguishing to UL 94
• RAL 7035
• Creepage resistance CTI 200
• Temperature-resistant up to 120 °C
For use as outer or center support.
With internal screw holes.
3 1600 Double T profile BBS-3/PR1) 4)
107162
3 off
Suitable for assembly of PE
or N bar.
With internal screw holes.
1 1600 Double T profile BBS-1/PR3)
107165
10 off
Terminal shroud
For shrouding busbar systems. – – BBS-3/PR ES-BBS-3/PR4)
107164
4 off
UL bottom plate
• Silicone-free, chlorine-free
• Temperature-resistant up to 110 °C
• Self-extinguishing to UL 94
For use when air gap between
busbars and mounting plate is
not sufficient.
1100 mm long.
– – BBS-3/PR BBC-BT-NA4)
107172
2 off
Busbar shrouds
• Silicone-free, chlorine-free
• Temperature-resistant up to 110°C
• Self-extinguishing to UL 94
1000 mm long. – – Double T profile BBC-CU-BAR/PR4)
107175
5 off
Profiled busbars
E-CU double T profile busbar
Tinned, cross-section 500 mm 2,
2400 mm long.
– 1250 For supports
BBS-3/PR,
BBS-1/PR,
BBS-3/FL-185
CU-BAR-500/T 2) 4)
107166
32 off
Tinned, cross-section 720 mm 2,
2400 mm long.
– 1600 For supports
BBS-3/PR, BBS-1/PR,
BBS-3/FL-185
CU-BAR-720/T 2) 4)
107167
32 off
Notes 1) Current load ￫ Page 16/39
2) Current load ￫ Page 16/39 Calculation of material surcharge ￫Chapter 23
Information relevant for export to North America
3) 4)
Product Standards UL508A; CSA-C22.2 No. 14;
IEC 60439-1; CE marking
UL File No. E307559
UL CCN NMTR2, NMTR8
CSA File No. 236217
CSA Class No. 3211-37
NA Certification UL Recognized, CSA certified
Conditions of Acceptability Refer to approbation report
Suitable for Feeder circuits
Max. Voltage Rating 600 V AC
Product Standards UL508A; CSA-C22.2 No. 14;
IEC 60439-1; CE marking
UL File No. E300273
UL CCN NMTR, NMTR7
CSA File No. 236217
CSA Class No. 3211-37
NA Certification UL Listed, CSA certified
Conditions of Acceptability Refer to approbation report
Specially designed for NA Yes
Suitable for Feeder circuits
Max. Voltage Rating 600 V AC
BBS-..., BBC-..., CU-BAR-... HPL16006EN
