8/12 Motor-starter combinations
Modules
DOL starters
2010 CA08103002Z-EN
DOL startersModules
Motor data Setting range
Rated operational
power
Rated operational
current
Rated short-circuit current Overload trip Short-circuit release
AC-3 AC-3 500 V 500 V
500 V 500 V Type “1” coordination Type “2” coordination
P Ie Iq Iq Ir Irm
kW A kA kA A A

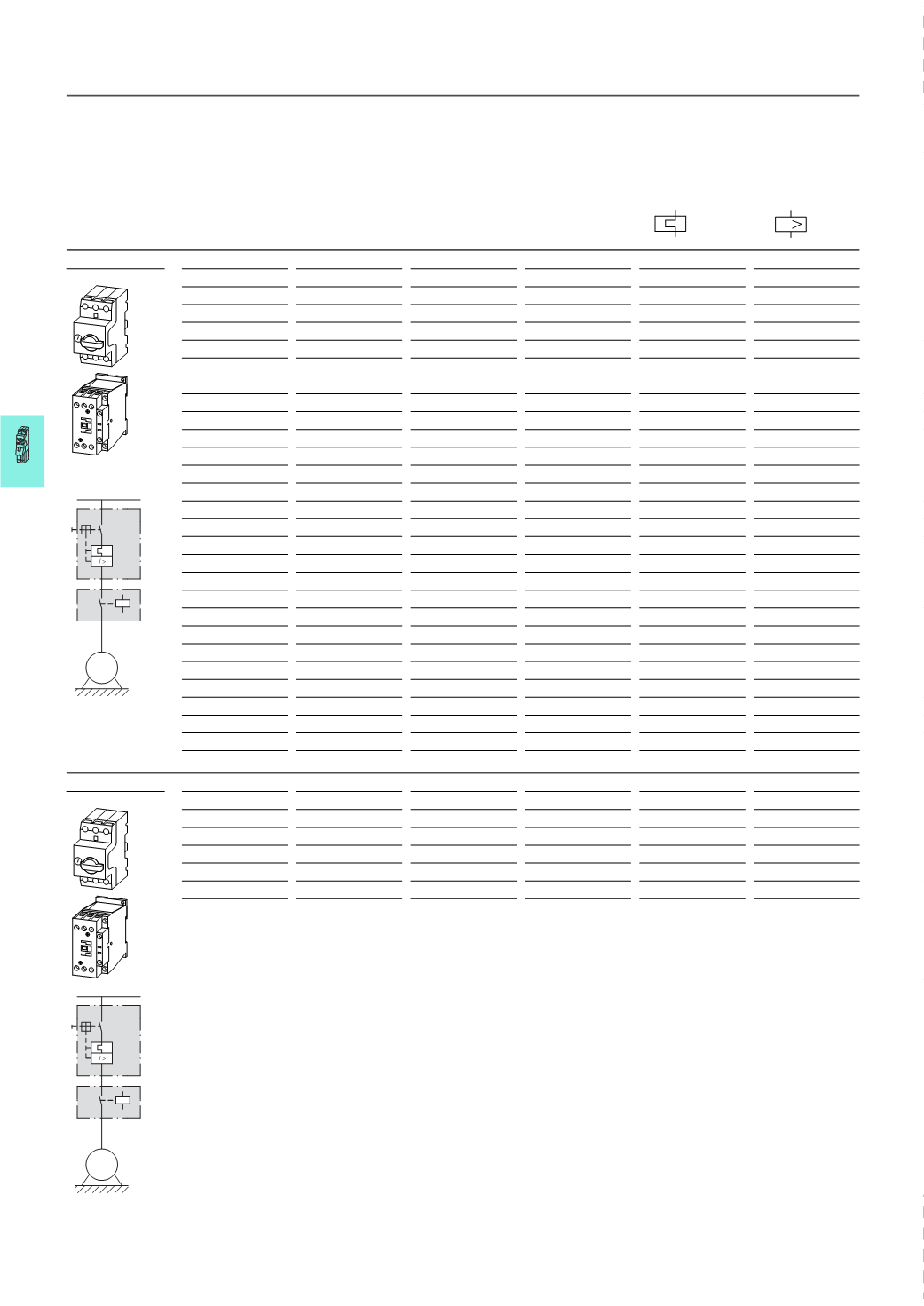

Modules PKZM0 and DILM
0.06 0.17 100 50 0.16 - 0.25 3.5
0.09 0.25 100 50 0.25 - 0.4 5.6
0.12 0.33 100 50 0.25 - 0.4 5.6
0.18 0.48 100 50 0.4 - 0.63 8.8
0.25 0.7 100 50 0.63 - 1 14
0.37 0.9 100 50 0.63 - 1 14
0.55 1.2 100 50 1 - 1.6 22
0.75 1.5 100 50 1 - 1.6 22
1.1 2.1 100 50 1.6 - 2.5 35
1.5 2.9 100 50 2.5 - 4 56
2.2 4 42 18 4 - 6.3 88
2.2 4 – 50 4 - 6.3 88
3 5.3 42 18 4 - 6.3 88
3 5.3 – 50 4 - 6.3 88
4 6.8 42 18 6.3 - 10 140
4 6.8 – 50 6.3 - 10 140
5.5 9 42 18 6.3 - 10 140
5.5 9 – 50 6.3 - 10 140
6.5 10.6 42 18 8 - 12 168
6.5 10.6 – 50 8 - 12 168
7.5 12.1 15 18 10 - 16 224
7.5 12.1 – 50 10 - 16 224
11 17.4 6 – 16 - 20 280
11 17.4 15 – 16 - 20 280
15 23.4 6 – 20 - 25 350
15 23.4 15 – 20 - 25 350
18.5 28.9 6 – 25 - 32 448
18.5 28.9 15 – 25 - 32 448
Modules PKZM4 and DILM
11 17.4 50 50 16 - 25 350
15 23.4 50 50 16 - 25 350
18.5 28.9 50 50 25 - 32 448
22 33 50 50 32 - 40 560
30 44 50 50 40 - 50 700
37 54 50 50 50 - 58 812
45 65 50 50 55 - 65 882
I
M
3 ~
M
3 ~
PKZM, DILM HPL08012EN
