Eaton Industrial Switchgear - xStart switching, protections and actuating motors

216 / 439

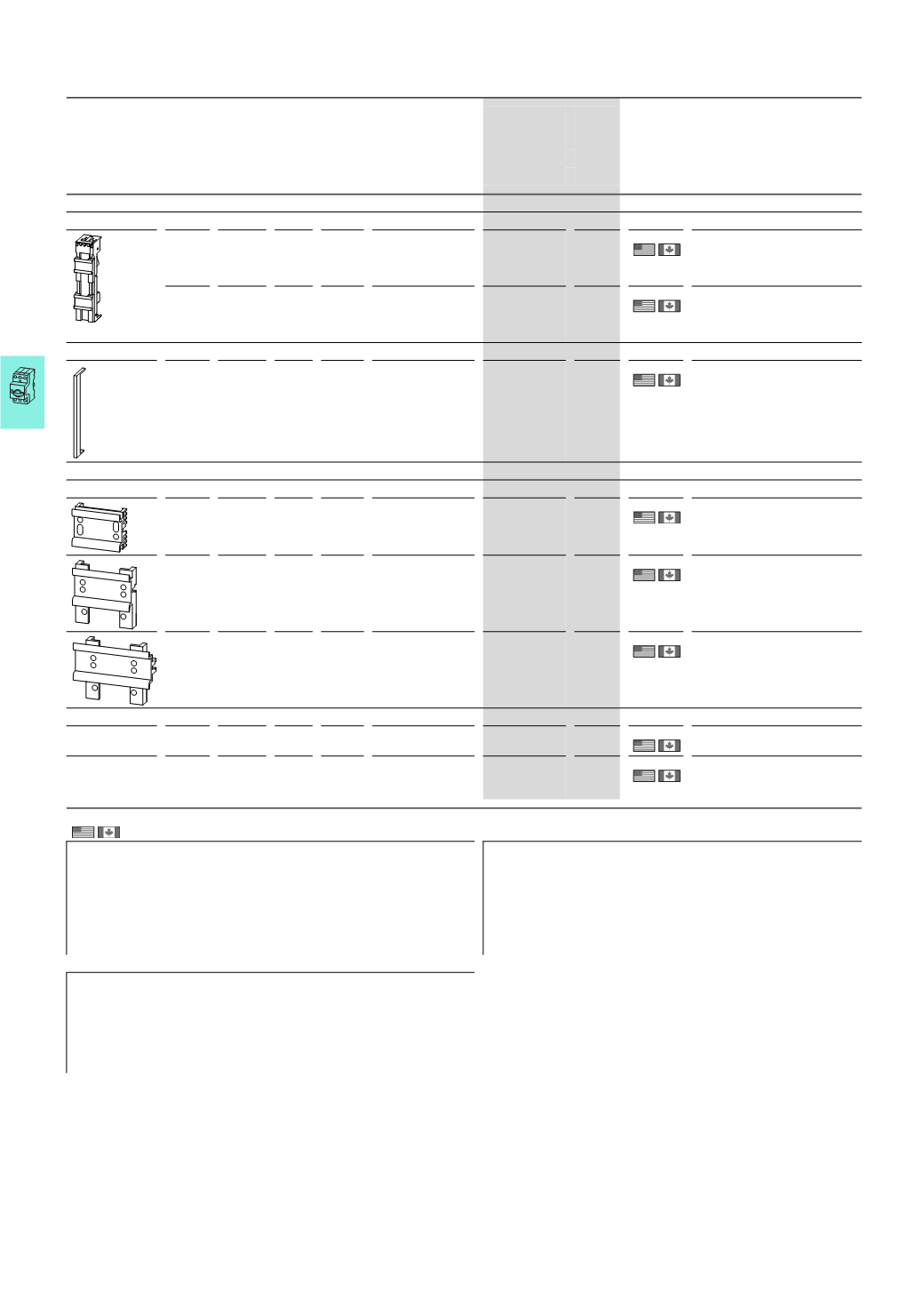

7/24 Motor-protective circuit-breakers PKZM01, PKZM0, PKZM4, PKE
Busbar adapters
2010 CA08103002Z-EN
Without electrical contacts
Empty module.
– – 45 2 – BBA0/2TS-L1)
101482
4 off Mounting rails can be moved within
a 1.25 mm grid.
Can be used to mount reversing and
star-delta starters.
– – 54 2 – BBA4/2TS-L1)
101483
4 off Mounting rails can be moved within
a 1.25 mm grid.
Can be used to mount reversing and
star-delta starters.
Side-mounted module, can be attached on both sides.
– – 9 – – BBA-XSM1)
101484
10 off Can be grouped with busbar adapt-
ers in order to extend the mounting
width.
Busbar adapters accessories
Mounting rails
– – 45 – BBA… PKZM0-XMR2)
239364
10 off –
– – 54 – BBA… PKZM0-XMR542)
113911
10 off –
– – 72 – BBA… PKZM0-XMR722)
113912
10 off –
Connecting cable
– – – – – BBA… BBA-XLT-6-1303)
116902
30 off –
– – – – – BBA… BBA-XLT-16-
1423)
116903
30 off –
Information relevant for export to North America
1) 2)
Product Standards UL 508A; CSA-C22.2 No. 14; IEC60439-1; CE marking
UL File No. E300273
UL CCN NMTR, NMTR7
CSA File No. 232140
CSA Class No. 3211-37
NA Certification UL Listed, CSA certified
Max. Voltage Rating 600 V AC
Product Standards UL 508; CSA-C22.2 No. 14; IEC60947-4-1; CE marking
UL File No. E300273
UL CCN NMTR, NMTR7
CSA File No. 232140
CSA Class No. 3211-37
NA Certification UL Listed, CSA certified
3)
Product Standards UL 508A; CSA-C22.2 No. 14; IEC60439-1; CE marking
UL File No. On request
UL CCN On request
CSA File No. On request
CSA Class No. On request
NA Certification UL Recognized, CSA certified
Rated
operational
voltage
Conductor
cross-
section
Adapter
width
Mounting
rails
For use with Part no.
Article no.
Price
See
price list
Std. pack Notes
Ue
V mm Number
BBA, PKZM0-XM HPL07024EN
