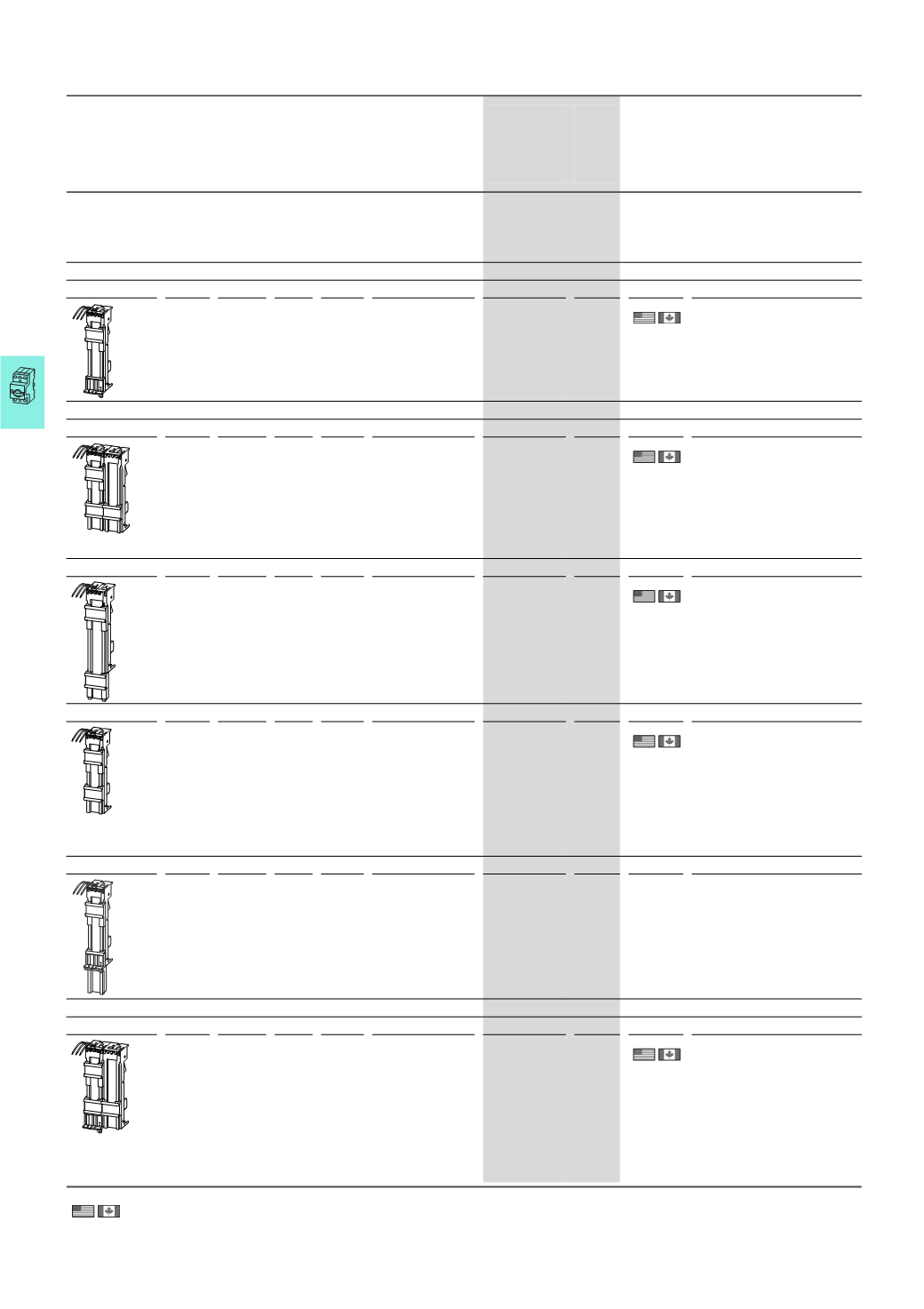

7/22 Motor-protective circuit-breakers PKZM01, PKZM0, PKZM4, PKE
Busbar adapters
2010 CA08103002Z-EN
Busbaradapters
Rated
operational
voltage
Conductor
cross-
section
Adapter
width
Mounting
rails
For use with Part no.
Article no.
Price
See
price list
Std. pack Notes
Ue
V mm Number
Busbar adapters for PKZ and PKE
Approved to UL 508.
For fitting to flat copper busbars with 60 mm between busbar centers, suitable for 5 mm
and 10 mm busbar thickness.
Rated operational current 16 A
For starters with spring-loaded terminals
690 AWG 14
(2.5 mm²)
45 2 PKZM0-C + DILMC7
PKZM0-C + DILMC9
PKZM0-C + DILMC12
BBA0C-16
101455
4 off According to UL 508: Ie = 12 A
Rated operational current 25 A
For reversing starters
690 AWG 12
(4 mm²)
90 1 PKZM0, PKE + 2 x
DILM7-01
PKZM0, PKE + 2 x
DILM9-01
PKZM0, PKE + 2 x
DILM12-01
MSC-R-0,25-M7… -
MSC-R-12-M12…
BBA0R-25
101453
2 off In combination with individual
components PKZM0 and DILM, use
reversing starter kit PKZM0-XRM12.
Fully assembled and tested
combination with MSC-R
￫Page 8/20
Only busbar adapters/wiring sets
manufactured on or after CW35/
2009 can be used for PKE.
Can be used universally
690 AWG 12
(4 mm²)
45 2 – BBA0-25/2TS
101481
4 off Mounting rails can be moved within
1.25 mm grid.
For DOL starters
690 AWG 12
(4 mm²)
45 1 PKZM0, PKE +
2 x DILM17-01
PKZM0, PKE +
2 x DILM25-
01PKZM0, PKE +
2 x DILM25-01
PKZM0, PKE +
2 x DILM32-01
MSC-R-16-M17…
MSC-R-32-M32…
BBA0-25
101451
4 off In combination with individual
components PKZM0 and DILM, use
DOL starter kit PKZM0-XRM12.
Fully assembled and tested
combination with MSC-D
￫Page 8/2
Only busbar adapters/wiring sets
manufactured on or after CW35/
2009 can be used for PKE.
For soft starters
690 AWG 12
(4 mm²)
45 1 PKZM0, PKE +
DS7...004N...
PKZM0, PKE +
DS7...007N...
PKZM0, PKE +
DS7...009N...
PKZM0, PKE +
DS7...012N...
BBA0L-25
142526
1 off –
Rated operational current 32 A
For reversing starters
690 AWG 10
(6 mm²)
90 3 PKZM0, PKE + 2 x
DILM17-01
PKZM0, PKE + 2 x
DILM25-01
PKZM0, PKE + 2 x
DILM32-01
MSC-R-16-M17… -
MSC-R-32-M32…
BBA0R-32
101454
2 off In combination with single
components PKZM0 and DILM,
wiring kit PKZM0-XM32DE and
reversing starter wiring kit
DILM32-XRL can be used.
Fully assembled and tested
combination with MSC-R
￫Page 8/20
Only busbaradapters/wiring sets
manufactured on or after CW 35/
2009 can be used for PKE.
Information relevant for export to North America Product Standards UL 508A; CSA-C22.2 No. 14;
IEC60439-1; CE marking
UL File No. E300273
UL CCN NMTR, NMTRZ
CSA File No. 232140
CSA Class No. 3211-37
NA Certification UL Listed, CSA certified
Max. Voltage Rating 600 V AC
